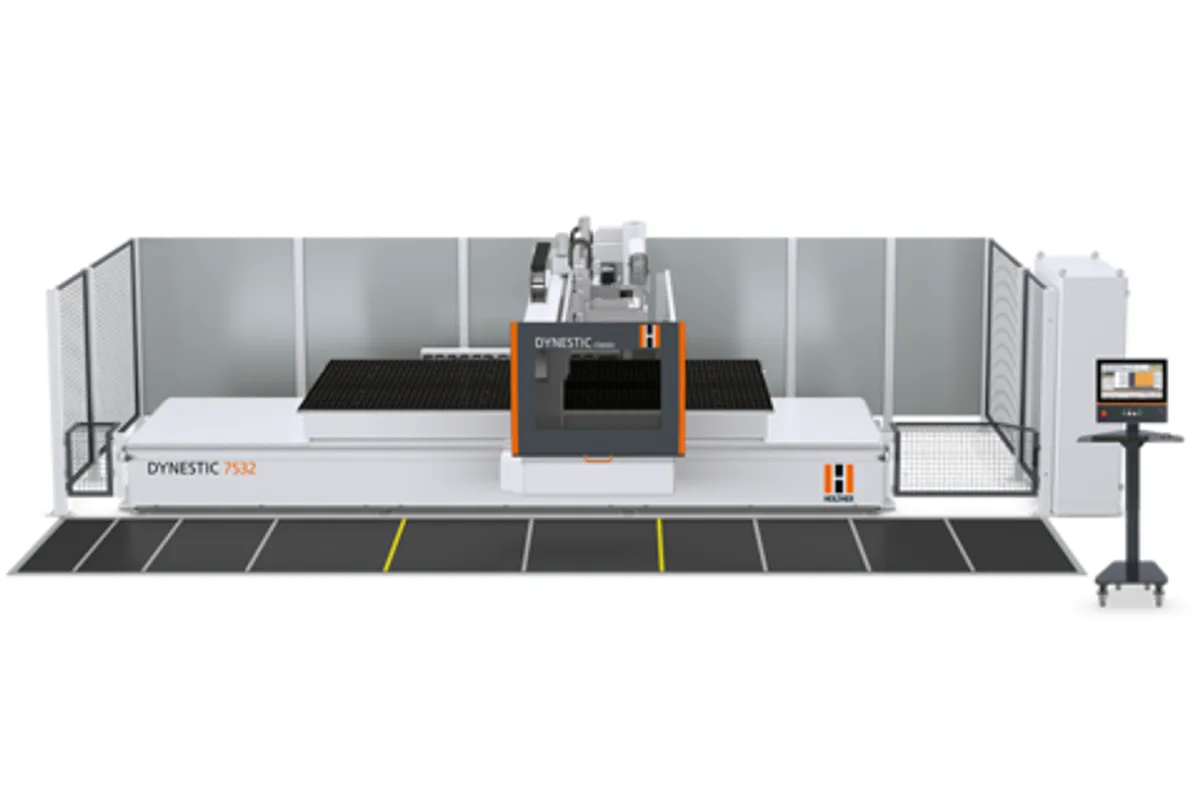

HOLZ-HER DYNESTIC 7532
Image: holzher.co.uk, HOLZ-HER
Key Specifications
Spindle Power
versions
machining length x 12 7 15 7 20 7
machining width y 12 7 15 7 20 7
machining length x 10 5 12 5 20 5
machining width y 10 5 12 5 20 5
How much does the HOLZ-HER DYNESTIC 7532 cost?
Price estimate
We do not have a price for the HOLZ-HER DYNESTIC 7532 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HOLZ-HER DYNESTIC 7532 is the production machine of the DYNESTIC nesting range, sold in four automation levels (classic, push, automatic and lift) and in two table widths. The wider family machines 2,200 mm (86.6 in) in Y with X of 3,700 mm (145.7 in), 4,600 mm (181.1 in) or 6,250 mm (246.1 in). The narrower family machines 1,600 mm (63.0 in) in Y with X of 3,100 mm (122.0 in), 3,700 mm (145.7 in) or 6,250 mm (246.1 in).
The automation level is the real buying decision. Classic is the stand-alone machine with a front row of stops. Push adds an automatic discharge pusher with integrated evacuation and a discharge table with conveyor belt. Automatic puts a charging table with roller and belt conveyors and a pull-in mechanism with lateral positioning ahead of the machine, and HOLZ-HER pairs it with its STORE-MASTER 5110 panel handling system. Lift replaces the charging table with a lifting table with roller conveyors, so a complete stack of panels can be worked off. The automated versions can be built as right-hand machines.
More is standard here than on the DYNESTIC 7505 and DYNESTIC 7507. Hold-down comes from a single 500 m3/h dry-running vacuum pump, where the DYNESTIC 7507 has 2 x 140 m3/h. The pick-up tool changer has 14 positions and a tool cover, and an 18-position traveling disk changer can be ordered in its place for two-field pendulum work. The frame is a welded moving gantry with two synchronized servo drives in X.
The base spindle is 8 kW (10.7 hp), air-cooled, 1,000 to 24,000 rpm. A 12 kW (16.1 hp) air-cooled or 10 kW (13.4 hp) liquid cooled spindle is optional. Drilling head L has 15 spindles (9 vertical, 6 horizontal) and a grooving saw in X. An XL drilling head, an additional grooving saw in Y and a double drilling spindle in Y are on the options list.
Full Specifications
| Parameter | Value |
|---|---|
| Versions | classic; push; automatic; lift |
| Machining Length X 12 7 15 7 20 7 | 3,700 mm (145.7 in), 4,600 mm (181.1 in), 6,250 mm (246.1 in) |
| Machining Width Y 12 7 15 7 20 7 | 2,200 mm (86.6 in) |
| Machining Length X 10 5 12 5 20 5 | 3,100 mm (122.0 in), 3,700 mm (145.7 in), 6,250 mm (246.1 in) |
| Machining Width Y 10 5 12 5 20 5 | 1,600 mm (63.0 in) |
| Spindle Motor Power | 8 kW (10.7 hp), air-cooled |
| Spindle Power Options | 12 kW (16.1 hp), air-cooled; 10 kW (13.4 hp), liquid cooled |
| Spindle Speed Range | 1,000-24,000 rpm |
| Drilling Head | Drilling head L: 15 spindles (9 V | 6 H), incl. sawing unit for grooving in X direction |
| Drilling Head Options | Drilling head XL; double drilling spindle in Y direction; vertical adapter with double positioning force; additional grooving saw in Y direction |
| Workpiece Support | High flow nesting table with continuous vacuum fields |
| Workpiece Support Options | 16-field vacuum, software controlled |
| Safety Equipment | Light grid |
| Safety Equipment Options | 3-field foot mat |
| Vacuum Pump | 500 m3/h low maintenance, dry-running type vacuum pump |
| Vacuum Pump Options | Additional, dry-running type vacuum pump: 250 m3/h or 500 m3/h |
| Tool Changer | 14-position pick-up tool changer with tool cover |
| Tool Changer Options | 1-position X/Y pick-up tool changer with tool cover; 18-position traveling disk tool changer |
| Automation Push Version | Automatic discharge pusher with integrated evacuation; discharge table with conveyor belt |
| Automation Automatic Version | Charging table with roller and belt conveyors; pull-in mechanism with lateral positioning; automatic discharge pusher with integrated evacuation; discharge table with conveyor belt |
| Automation Lift Version | Lifting table with roller conveyors; pull-in mechanism with lateral positioning; automatic discharge pusher with integrated evacuation; discharge table with conveyor belt |
| Right Handed Machine | Possible on push, automatic and lift versions |
| Software | CAMPUS Software machine licence package incl. aCADemy CAD/CAM module and CabinetControl Base |
| Software Options | CAMPUS Software office license; BetterNest rectangular nesting; BetterNest free-form nesting |
Specifications sourced from holzher.co.uk — verified 2026-10-05
Strengths & Limitations
Strengths
- Four automation levels on one base machine: classic, push, automatic and lift
- 500 m3/h dry-running vacuum pump as standard, with a further 250 m3/h or 500 m3/h pump optional
- 14-position pick-up tool changer with tool cover; an 18-position traveling disk changer can replace it
- X lengths up to 6,250 mm (246.1 in) in both table widths
- Automated versions are available as right-hand machines to suit the material flow of the workshop
Limitations
- The standard spindle is 8 kW (10.7 hp); the 5-axis DYNESTIC 7535 starts at 10 kW (13.4 hp) with a gimbal-mounted head
- The narrower family is limited to 1,600 mm (63.0 in) in Y
- Automatic and lift versions add charging tables, a pull-in mechanism and a discharge table, so the line needs far more floor length than the bare machine
- The BetterNest nesting software, rectangular or free-form, is an option on top of the CAMPUS machine licence
Best For
Frequently Asked Questions
01
Classic is the machine alone. Push adds an automatic discharge pusher with integrated evacuation and a discharge table with conveyor belt. Automatic adds a charging table with roller and belt conveyors and a pull-in mechanism with lateral positioning as well, and is the version HOLZ-HER combines with its STORE-MASTER 5110 panel handling system. Lift has a lifting table with roller conveyors in place of the charging table, for working through complete stacks of panels.
02
Two widths, three lengths each. Sizes 12.7, 15.7 and 20.7 machine 2,200 mm (86.6 in) in Y and 3,700 mm (145.7 in), 4,600 mm (181.1 in) or 6,250 mm (246.1 in) in X. Sizes 10.5, 12.5 and 20.5 machine 1,600 mm (63.0 in) in Y and 3,100 mm (122.0 in), 3,700 mm (145.7 in) or 6,250 mm (246.1 in) in X.
03
A 14-position pick-up tool changer with tool cover is standard. A 1-position X/Y pick-up changer can be added to transfer an angle gear to the spindle, and an 18-position traveling disk tool changer can be ordered instead of the linear changer, which HOLZ-HER recommends for 2-field processing in pendulum mode.
04
The push, automatic and lift versions can. HOLZ-HER offers all automated variants as right-hand machines, with the production sequence running from right to left, in addition to the usual left-hand layout. The classic version is not listed with this choice.
