DMS Denali5

Q: How much does the DMS Denali5 cost?

The price estimate for the DMS Denali5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/dms-denali5#price; the request is passed to DMS or an authorised dealer.

Specs verified 2026-10-04 · dmscncrouters.com Updated 2026-10-04

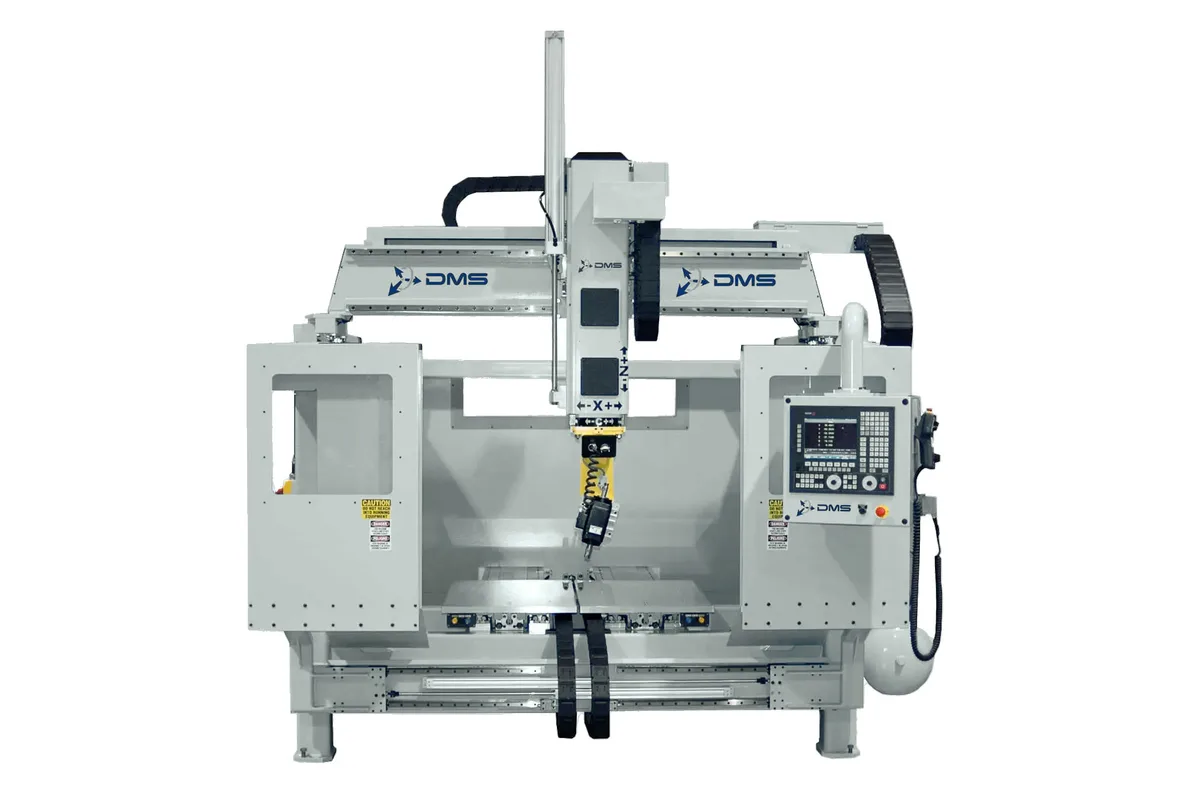

Image: dmscncrouters.com, DMS

Key Specifications

Max Spindle

24,000 rpm

Tool Capacity

Rapid Traverse

Up to 1,400 in/min (35.6 m/min)

x axis travel

5 ft min / 6 ft max (1,524 / 1,829 mm)

y axis travel

5 ft min / 12 ft max (1,524 / 3,658 mm)

z axis travel

30 in (762 mm)

How much does the DMS Denali5 cost?

Price estimate

Uncertain

We do not have a price for the DMS Denali5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The DMS Denali5 is the compact member of the DMS 5-axis line, a mid-range trim center style router with an overhead moving gantry. Its X range, the bridge axis, is 5 ft to 6 ft, Y is 5 ft to 12 ft, and Z stroke is 30 in (762 mm). DMS pitches it at companies that want 5-axis capability without the footprint of its large-format machines.

Trimming is the job the layout is built around. Formed plastics, composite lay-ups and moulded panels arrive as a shell that has to be cut to its outline and drilled from several sides, and a head that tilts on B to 115° or 130° and turns on C through 363° either way reaches those edges in one setup. DMS also points to the compact design as suited to dust containment and names a quick-change fixture system.

The axes run on a spinning ball nut and recirculating ball screw with a Fagor Sercos drive system and absolute motor encoders, under a Fagor 8065/8070 Power Controller. Rapid feed is up to 1,400 in/min (35.6 m/min) and the spindle turns at up to 24,000 rpm. The rack tool changer holds 10 tools; DMS lists the automatic tool changer among the customizable features, alongside a tool height sensor, automatic lubrication and a retractable roof enclosure.

Site requirements are 380-480 V 3-phase power and 10 CFM of compressed air at 95 PSI. Lubrication is manual on the base machine. The product page and the data sheet disagree on spindle power and on table size for this model, so both belong on the quotation instead of being assumed.

Full Specifications

Parameter	Value
X Axis Travel	5 ft min / 6 ft max (1,524 / 1,829 mm)
Y Axis Travel	5 ft min / 12 ft max (1,524 / 3,658 mm)
Z Axis Travel	30 in (762 mm)
B Axis Range	(+/-) 115° / 130°
C Axis Range	+/- 363°
Max Spindle Speed	24,000 rpm
Rapid Traverse Rate	Up to 1,400 in/min (35.6 m/min)
Drive System	Spinning ball nut & recirculating ball screw
Servo Drives	Fagor Sercos drive system
Motor Encoders	All absolute
CNC Control	Fagor 8065/8070 Power Controller
Tool Changer Type	Rack / manual
Tool Capacity	10
Power Requirement	380-480 V, 3-phase
Compressed Air	10 CFM at 95 PSI (283 L/min at 6.6 bar)
Lubrication	Manual

Specifications sourced from dmscncrouters.com — verified 2026-10-04

Strengths & Limitations

Strengths

Compact overhead-gantry 5-axis layout: X 5 ft to 6 ft, Y 5 ft to 12 ft, Z 30 in (762 mm)
B axis tilt of 115° or 130° and C rotation of 363° in each direction for trimming from several sides in one setup
Spinning ball nut and recirculating ball screw transmission with a Fagor Sercos drive system
Rapid feed up to 1,400 in/min (35.6 m/min) and a 24,000 rpm spindle
Stress-relieved steel frame with all axes laser calibrated

Limitations

X stroke is limited to 6 ft and Z to 30 in (762 mm), the smallest envelope in the 5-axis line
The tool changer maximum is 10 tools, against 12 / 24 on the Teton5
Lubrication is manual unless the automatic lubrication system is ordered
The comparison table lists no feedback scales for this model, where the larger 5-axis machines offer them as an option

Best For

Trimming thermoformed plastics and composite parts in one setup 5-axis work in wood, foam, plastics and aluminum on a small footprint Shops that need dust kept inside a compact machine Parts that fit within 6 ft by 12 ft and 30 in (762 mm) of height

Frequently Asked Questions

01 What size parts fit the DMS Denali5?

The stroke table gives X, the bridge axis, as 5 ft minimum and 6 ft maximum, Y as 5 ft minimum and 12 ft maximum, and Z as 30 in (762 mm). Custom workspace travels and custom table configurations are listed among the customizable features, so the working size is settled when the machine is ordered.

02 What are the rotary axis ranges on the Denali5?

The B axis is listed as (+/-) 115° / 130° and the C axis as +/- 363°. The larger DMS 5-axis machines list an optional continuous C axis; the comparison table does not show that option for the Denali5.

03 What control and drives does the Denali5 use?

The data sheet names a Fagor 8065/8070 Power Controller with a Fagor Sercos drive system, a dual-core Windows 10 processor and Ethernet TCP/IP, USB and serial port connections. Motor encoders are all absolute. A touch screen monitor and a bar code reader are customizable features.

04 What power and air does the Denali5 need?

DMS lists 380-480 V, 3-phase power and a compressed air requirement of 10 CFM at 95 PSI. Lubrication is manual on the standard machine, with an automatic lubrication system available as a customizable feature.

05 Does the Denali5 have an automatic tool changer?

The comparison table lists the tool changer as rack or manual with a maximum of 10 tools, and the data sheet puts the automatic tool changer under customizable features. In other words, check whether the rack is included in the configuration you are quoted.
