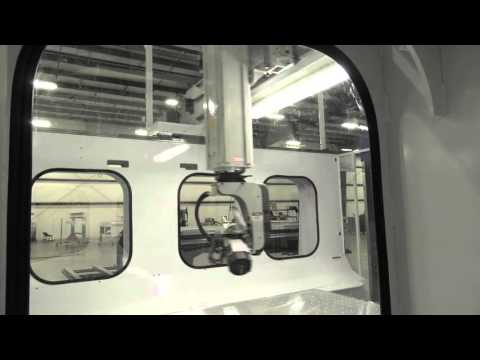

Thermwood Model 77 CNC Router

$80,000 – $160,000 Updated 2026-03-17

Key Specifications

Table Size

5x10 ft (1524x3048 mm)

Design

Fixed gantry, moving table (T-base design)

Z Travel

12 in (305 mm) standard

Spindle Power

12.5 kW (16.7 HP) HSD electrospindle

Spindle Speed

24,000 RPM

ATC

15-position servo tool change pod

Overview

The Thermwood Model 77 is a 5x10 foot CNC router from Thermwood Corporation, an Indiana-based manufacturer that has been building CNC routers since 1969 — making it one of the longest-running CNC router brands in the world. The Model 77 is part of Thermwood's Cut Center line, featuring a fixed gantry design where the table moves in X while the gantry remains stationary, providing superior rigidity compared to moving-gantry designs and enabling accurate cutting of large, heavy parts without gantry deflection. The machine features Thermwood's proprietary Supercontrol, a Windows-based touch-panel controller with an intuitive graphical interface and built-in conversational CAM for simple part programming without separate CAM software. Standard with a 15-position automatic tool change (ATC) pod and a 12.5 kW HSD electrospindle at 24,000 RPM, the Model 77 is used extensively in aircraft interior manufacturing, boat hull fabrication, architectural millwork, and furniture production. The fixed-gantry design accepts workpieces up to 12 inches thick due to high Z travel.

Full Specifications

Parameter	Value
Table Size	5x10 ft (1524x3048 mm)
Design	Fixed gantry, moving table (T-base design)
Z Travel	12 in (305 mm) standard
Spindle Power	12.5 kW (16.7 HP) HSD electrospindle
Spindle Speed	24,000 RPM
ATC	15-position servo tool change pod
Rapid Traverse	1,200 in/min (30 m/min)
Vacuum Table	Multi-zone T-slot and vacuum
Control	Thermwood Supercontrol (Windows, touch panel)
Drive	Ball screw on all axes
Manufacturer	Kentwood

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

Fixed-gantry design provides excellent rigidity for thick and heavy part cutting
Thermwood Supercontrol has built-in conversational programming — no external CAM needed for simple parts
One of the longest-established CNC router brands — parts and support availability is excellent
12-inch Z travel handles thick foam, composite sandwich, and boat hull sections
15-position ATC handles multi-operation programs efficiently

Limitations

Moving-table design requires more floor space than equivalent moving-gantry machines
15-position ATC smaller than carousels on larger machining centers
Supercontrol interface differs from industry-standard G-code controllers — learning curve for experienced CNC operators
Table weight limit can be a constraint on very dense composite parts

Best For

Aircraft interior manufacturers routing composite panels and core materials Boat and marine composite fabricators cutting hull sections and deck panels Architectural millwork shops machining thick foam profiles and MDF mouldings Furniture manufacturers cutting solid wood components requiring deep Z travel

Frequently Asked Questions

01 What is the advantage of Thermwood fixed-gantry design over a moving-gantry?

In a fixed-gantry (moving table) design, the gantry does not deflect under its own weight during X-axis motion. This improves accuracy and rigidity for heavy workpieces and deep cuts compared to moving-gantry machines where gantry inertia limits feed rates and accuracy.

02 Does the Model 77 support 5-axis machining?

The standard Model 77 is a 3-axis machine. Thermwood offers 5-axis configurations in other model lines (the Model 45 and Model 67). The Model 77 can be fitted with a 4th-axis rotary unit for cylindrical parts.

03 Can the Supercontrol run G-code programs from external CAM software?

Yes. While the Supercontrol includes conversational programming, it also accepts standard G-code files from any CAM package, making it compatible with the full range of woodworking and composites CAM software.
