DMS Glacier5

Q: How much does the DMS Glacier5 cost?

The price estimate for the DMS Glacier5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/dms-glacier5#price; the request is passed to DMS or an authorised dealer.

Specs verified 2026-10-04 · dmscncrouters.com Updated 2026-10-04

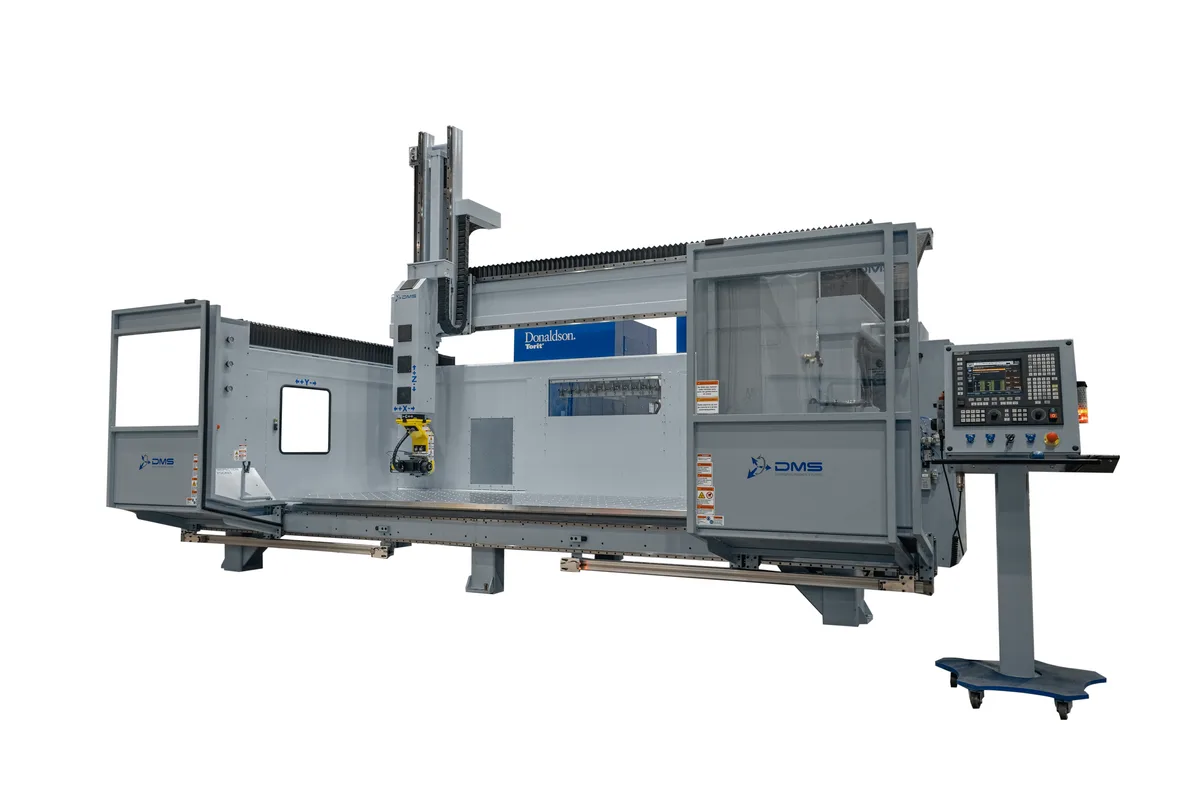

DMS Glacier5 enclosed 5-axis CNC machine

Image: dmscncrouters.com, DMS

Key Specifications

Max Spindle

24,000 rpm

Tool Capacity

10 / 12

Table Size

Bridge length: 5, 6, 7, 8, 10 or 12 ft; depth: 4, 5 or 6 ft

Spindle Power

20 kW maximum (26.8 hp)

x axis travel

5 ft min / 12 ft max (1,524 / 3,658 mm)

y axis travel

5 ft min / 10 ft max (1,524 / 3,048 mm)

How much does the DMS Glacier5 cost?

Price estimate

Uncertain

We do not have a price for the DMS Glacier5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The DMS Glacier5 is a fully enclosed 5-axis machine with 72 in (1,829 mm) of Z stroke, the deepest fixed Z that DMS lists for an enclosed model. The bridge axis, X, is offered from 5 ft to 12 ft and Y from 5 ft to 10 ft. DMS names carbon fiber and thermoforming as its industries, which is trimming and drilling work that makes abrasive dust.

Containment explains the architecture. Carbon dust is conductive and hard on a shop, and an enclosure lets extraction deal with it at the machine. The tall Z matters for the same parts: deep-draw thermoformed shells and tall lay-up tools need the head to come down the side of the work, not only over the top.

Head choice is broad. Six units are listed, the Tilt K Plus, Tilt H Plus, Tilt V and Tilt W plus the DMS Standard Yoke and DMS Cast Yokes, covering spindles of 8-20 kW at up to 24,000 rpm. B tilts 115° or 130°. C travel depends on the head: 363° either way on a DMS head, with continuous rotation as an option, or 320° on a Hiteco head.

The transmission is mixed. Bridges up to 14 ft (4,267 mm) run on a spinning ball nut and recirculating ball screw, while the gantry axis is always rack and pinion. Motor encoders are absolute, except that the rotaries are incremental when continuous C is fitted, and scales are an option. Average speed across the three linear axes is 1,333 in/min (33.9 m/min). Tools are held in a rack or carousel, 10 / 12 at most, under a Fagor HMI and NC.

Full Specifications

Parameter	Value
X Axis Travel	5 ft min / 12 ft max (1,524 / 3,658 mm)
Y Axis Travel	5 ft min / 10 ft max (1,524 / 3,048 mm)
Z Axis Travel	72 in (1,829 mm)
B Axis Range	(+/-) 115° / 130°
C Axis Range	DMS: (+/-) 363° (continuous optional); Hiteco: (+/-) 320°
Spindle Motor Power	20 kW maximum (26.8 hp)
Max Spindle Speed	24,000 rpm
Spindle Power Range	8-20 kW (10.7-26.8 hp)
Drive System	Spinning ball nut & recirculating ball screw on bridges up to 14 ft (4,267 mm); gantry always rack & pinion
Feedback Encoders	Scales available as option
CNC Control	Fagor + Fagor (HMI + NCs)
Table Size	Bridge length: 5, 6, 7, 8, 10 or 12 ft; depth: 4, 5 or 6 ft
Average Speed	1,333 in/min (33.9 m/min), average of 3 axes
Tool Changer Type	Rack / carousel / manual
Tool Capacity	10 / 12

Specifications sourced from dmscncrouters.com — verified 2026-10-04

Strengths & Limitations

Strengths

Fully enclosed 5-axis architecture for dust-producing carbon fiber and thermoforming work
72 in (1,829 mm) of Z stroke for tall moulds and deep-draw parts
Six head units, from the Tilt K Plus to DMS Cast Yokes, with spindles of 8-20 kW
Ball-screw bridge drive on bridges up to 14 ft (4,267 mm), with scales available as an option
C axis of 363° each way on a DMS head, with continuous rotation optional

Limitations

Depth is limited to 4, 5 or 6 ft on the size list, so the enclosed envelope is wide and shallow
The tool changer maximum is 10 / 12 tools; the Teton5 lists 12 / 24
With the continuous C option the rotary axes use incremental encoders instead of absolute ones
A Hiteco head limits C rotation to 320° each way
The smallest listed spindle is 8 kW, more than light trimming strictly needs

Best For

Trimming and drilling carbon fiber parts inside an enclosure Deep thermoformed shells and tall tooling that need 72 in (1,829 mm) of Z Aerospace and automotive composite components 5-axis work where ball-screw bridge motion and optional scales are wanted

Frequently Asked Questions

01 What is the working envelope of the DMS Glacier5?

The stroke table lists X, the bridge axis, from 5 ft to 12 ft, Y from 5 ft to 10 ft and Z at 72 in (1,829 mm). The size list gives bridge lengths of 5, 6, 7, 8, 10 or 12 ft and depths of 4, 5 or 6 ft. Since the Y stroke and the depth list do not match, ask DMS which applies to the size you need.

02 Which 5-axis heads does the Glacier5 take?

DMS lists the Tilt K Plus, Tilt H Plus, Tilt V, Tilt W, DMS Standard Yoke and DMS Cast Yokes. Spindle power ranges from 8 to 20 kW with a maximum speed of 24,000 rpm. The B axis is (+/-) 115° / 130°. C is (+/-) 363° on a DMS head, optionally continuous, and (+/-) 320° on a Hiteco head.

03 Is the Glacier5 ball screw or rack and pinion?

Both. The bridge uses a spinning ball nut and recirculating ball screw on bridges up to 14 ft (4,267 mm), and the gantry axis is always rack and pinion. Scales are available as an option on top of the absolute motor encoders.

04 How does the Glacier5 differ from the Glacier3?
