Campro PV-4226

Q: How much does the Campro PV-4226 cost?

The price estimate for the Campro PV-4226 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-4226#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

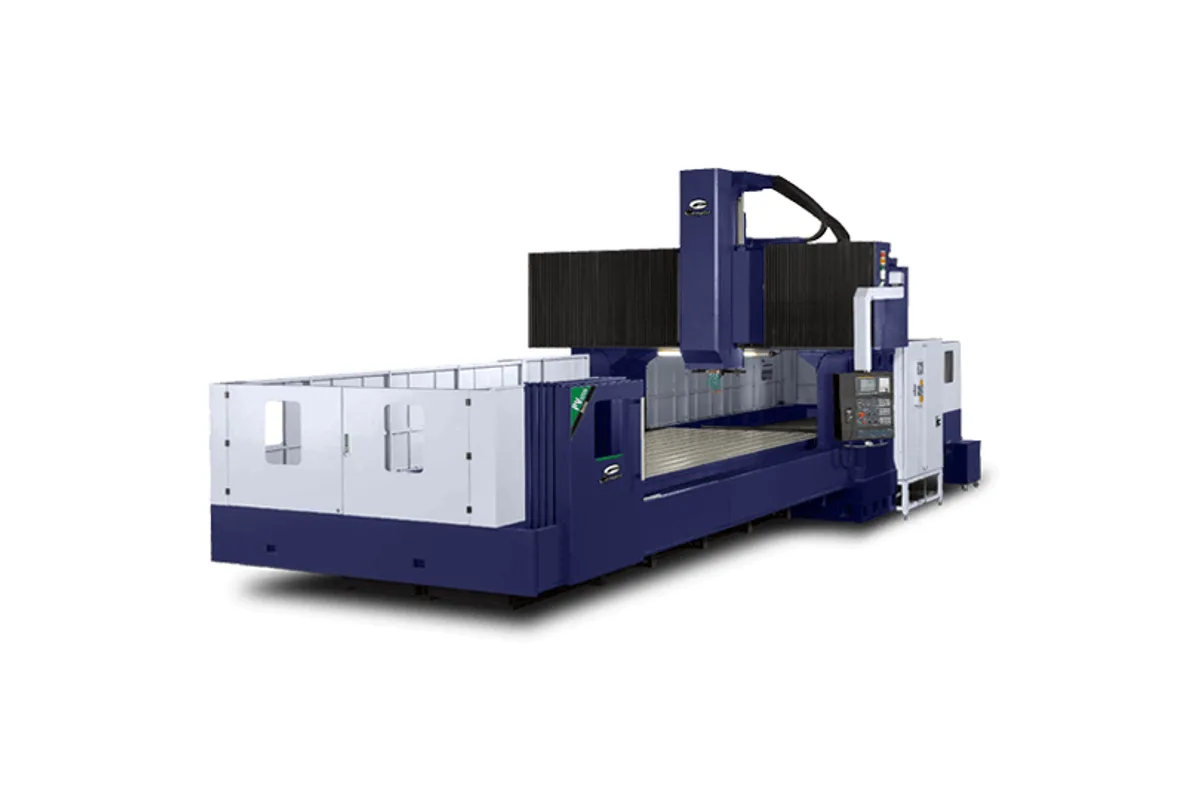

Campro PV series double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

4,000 × 2,200 mm (157.4 in x 86.6 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

4,200 mm (165.3 in)

How much does the Campro PV-4226 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-4226 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For work that outgrows the PV-4221 in width, Campro offers the PV-4226. This double column machining center keeps the 4,200 mm (165.3 in) X travel of the PV-4221 and widens everything else: 2,600 mm (102.3 in) of Y travel, 2,700 mm (106.2 in) between columns and a 4,000 × 2,200 mm (157.4 in x 86.6 in) table.

The wider table is also the stronger one. Load capacity is 14,000 kg (30,864 lb), where the PV-4221 is rated 10,000 kg (22,046 lb). Campro states that the PV-4226 is equipped with 3 guideways on the X-axis, the feature that separates the 26-family beds from the narrower ones. Machine weight is 42,000 kg (92,594 lb).

Performance figures are unchanged by the extra width, and that is worth knowing in both directions. Rapids are still 12 m/min in X and 15 m/min in Y and Z. The spindle is still the 6,000 rpm gear-head unit with 15 / 18.5 kW (25 HP). So a buyer loses nothing in speed by choosing the wide machine, and gains nothing in spindle power either.

Other details follow the series. Z travel is 800 mm (31.4 in), or 1,000 mm (39.3 in) as an option. There are eleven 22 mm T-slots. The ram and gear box are a one-piece casting on box guideways, X and Y run on roller type linear guideways, and twin chip screws remove swarf. The magazine holds 32 BT-50 tools with 40 or 60 optional.

A site needs 10,800 × 5,500 mm (425 in x 216 in), 4,200 mm (165 in) of height, 40 kVA and 6~8 kg/cm² of air. Campro's page names no control for the machine.

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.3 in)
Y Axis Travel	2,600 mm (102.3 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,700 mm (106.2 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	4,000 × 2,200 mm (157.4 in x 86.6 in)
Max Table Load	14,000 kg (30,864 lb)
T-Slots	22 mm x 11 (0.86 in x 11) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	10,800 × 5,500 mm (425 in x 216 in) (W × D)
Machine Weight	42,000 kg (92,594 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,000 × 2,200 mm (157.4 in x 86.6 in) table carrying 14,000 kg (30,864 lb)
2,600 mm (102.3 in) of Y travel with 2,700 mm (106.2 in) between columns
Same 12 / 15 / 15 m/min rapids as the narrower PV-4221
3 guideways on the X-axis, per Campro
Optional 1,000 mm (39.3 in) Z travel

Limitations

No more spindle than the smaller PV machines: 15 / 18.5 kW (25 HP) at 6,000 rpm
Floor plan of 10,800 × 5,500 mm (425 in x 216 in)
Cutting feedrate limited to 8,000 mm/min (314.9 in/min)
Standard tool capacity is 32 for a table this large

Best For

Large molds and dies up to 14,000 kg (30,864 lb) Wide machine frames and fabricated bases up to 2,200 mm across Aerospace tooling plates that fill a 4,000 × 2,200 mm table Several medium parts fixtured across the table for one long cycle

Frequently Asked Questions

01 What separates the PV-4226 from the PV-4221?

Width and load. The PV-4226 has 2,600 mm (102.3 in) of Y travel, a 4,000 × 2,200 mm (157.4 in x 86.6 in) table and a 14,000 kg (30,864 lb) rating. The PV-4221 has 2,100 mm (82.6 in) of Y, a 4,000 × 1,700 mm (157.4 in x 66.9 in) table and 10,000 kg (22,046 lb). Feeds and spindle are the same.

02 What are the feed rates of the PV-4226?

Rapid feedrate is 12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min) for X / Y / Z, and the cutting feedrate range is 1~8,000 mm/min (314.9 in/min). The longer PV-5226 is listed at 10 / 12 / 12 m/min.

03 How heavy is the PV-4226?

Machine weight is 42,000 kg (92,594 lb). The floor plan is 10,800 × 5,500 mm (425 in x 216 in) and the maximum machine height is 4,200 mm (165 in). Power capacity is 40 kVA with an air source of 6~8 kg/cm² (85 ~ 113 PSI).

04 Which tools and magazine does the PV-4226 use?

A 32-tool chain type magazine with BT-50 shanks is standard; 40 and 60 tool magazines are options. Tool limits are Ø125 mm (Ø4.9 in), Ø215 mm (Ø8.4 in) with adjacent pockets empty, 350 mm (13.7 in) in length and 20 kg (44 lb) in weight.
