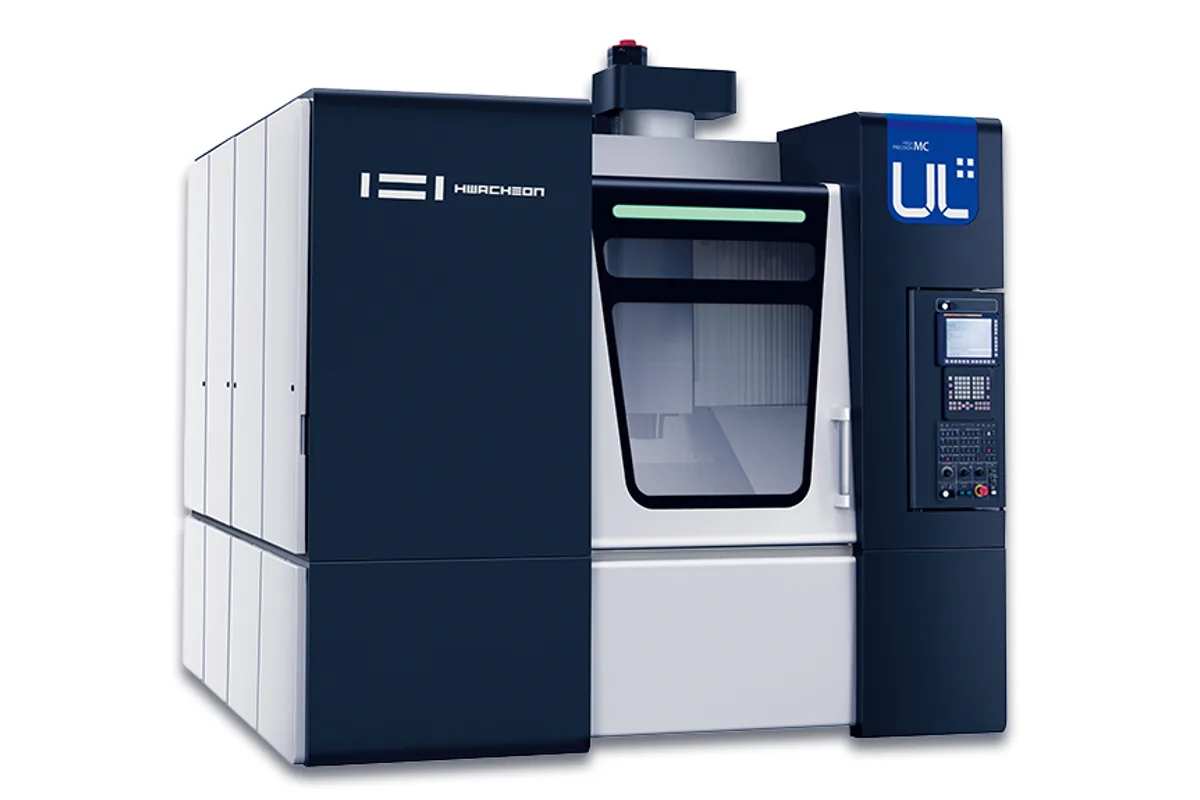

Hwacheon SIRIUS-UL+
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon SIRIUS-UL+ cost?
Price estimate
We do not have a price for the Hwacheon SIRIUS-UL+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon SIRIUS-UL+ is a 40-taper vertical machining center with 1,050 mm (41.3 in) of X, 600 mm (23.6 in) of Y and 550 mm (21.7 in) of Z travel over a 1,200 x 600 mm (47.2 x 23.6 in) table. Four spindle speeds are listed, 12,000, 14,000, 20,000 and 24,000 rpm, all on a built-in motor whose power ratings start at 37 kW (49.6 hp), and the axes rapid at 36 m/min (1,417 ipm).
Power is high for a 40-taper machine of this size. The 12K, 20K and 24K spindles are rated 37 / 18.5 kW (49.6 / 24.8 hp), and the 14K version 37 / 22 kW (49.6 / 29.5 hp), the higher pair of the two listed ratings, which makes it the natural pick for roughing steel. The 20K spindle can take through-spindle coolant as an option. Tooling also depends on the speed: the 12K, 14K and 20K spindles use MAS-403 BBT-40 shanks, with CAT-40, SK-40 or HSK-A63 as options, while the 24K uses HSK-A63.
The table carries 800 kg (1,764 lb), or 700 kg (1,543 lb) when a magnetic table is fitted. That magnetic option points to die and mould plates held flat without clamps. Five T-slots, 18 mm at 100 mm pitch, are provided for conventional fixturing, and the spindle nose comes within 150 mm (5.9 in) of the table and rises to 600 mm (23.6 in).
The 30-tool magazine, 40 as an option, selects by memory random and accepts tools up to Ø90 mm (Ø3.5 in) with neighbours or Ø170 mm (Ø6.7 in) with empty adjacent pockets, 300 mm (11.8 in) long and 8 kg (18 lb). Compared with the SIRIUS-UM+, whose 850 x 500 mm (33.5 x 19.7 in) table also takes 800 kg (1,764 lb) and which offers 32,000 rpm, the SIRIUS-UL+ gives more travel and faster rapids but tops out at 24,000 rpm.
At 11,800 kg (26,014 lb) it needs 3,990 x 2,740 mm (157.1 x 107.9 in) of floor and 3,170 mm (124.8 in) of height, 55 kVA, and air at 0.5 to 0.7 MPa x 690 NL/min. The coolant tank holds 430 L (114 US gal) and the control is Fanuc 31i-B.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,050 mm (41.3 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 150 ~ 600 mm (5.9 ~ 23.6 in) |
| Distance Between Columns | 1,076 mm (42.4 in) |
| Table Size | 1,200 x 600 mm (47.2 x 23.6 in) |
| Max Table Load | 800 kg (1,764 lb) [magnetic table: 700 kg (1,543 lb)] |
| T-Slots | 18 x 100 mm (0.71 x 3.94 in), 5 slots (width x pitch, count) |
| Max Spindle Speed | 12,000 / 14,000 / 20,000 / 24,000 rpm (20K: through-spindle coolant opt.) |
| Spindle Motor Power | 12K / 20K / 24K: 37 / 18.5 kW (49.6 / 24.8 hp); 14K: 37 / 22 kW (49.6 / 29.5 hp) |
| Spindle Taper | ISO#40, 7/24 Taper (BBT-40) |
| Spindle Bearing Bore | Ø70 mm (Ø2.8 in) |
| Spindle Drive | Built-in motor |
| Spindle Bearing Lubrication | Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm) |
| Tool Shank | 12K / 14K / 20K: MAS-403 BBT-40 (opt.: CAT-40 / SK-40 / HSK-A63); 24K: HSK-A63 |
| Pull Stud | MAS P40T-1 (45°) |
| Tool Capacity | 30 (opt.: 40) |
| Max Tool Diameter (full magazine) | Ø90 / Ø170 mm (Ø3.5 / Ø6.7 in) (with / without adjacent tools) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Selection | Memory Random |
| Power Requirement | 55 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 690 NL/min |
| Coolant Tank Capacity | 430 L (114 US gal) |
| Machine Height | 3,170 mm (124.8 in) |
| Floor Space | 3,990 x 2,740 mm (157.1 x 107.9 in) |
| Machine Weight | 11,800 kg (26,014 lb) |
| CNC Control | Fanuc 31i-B |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Four spindle speeds from 12,000 to 24,000 rpm, each with 37 kW (49.6 hp) as the higher power figure
- 14K spindle rated 37 / 22 kW (49.6 / 29.5 hp) for heavier steel roughing
- 36 m/min (1,417 ipm) rapids on X, Y and Z
- Magnetic table option, rated 700 kg (1,543 lb)
- Tools up to Ø170 mm (Ø6.7 in) with the adjacent pockets empty, 300 mm (11.8 in) long
Limitations
- 24K spindle requires HSK-A63 tooling rather than the BBT-40 of the other versions
- Through-spindle coolant is listed as an option only for the 20K spindle
- Table load is 800 kg (1,764 lb), the same as the smaller SIRIUS-UM+
- 30-tool standard magazine, with 40 as the only listed option
Best For
Frequently Asked Questions
01
Four: 12,000, 14,000, 20,000 and 24,000 rpm. The 12K, 20K and 24K are rated 37 / 18.5 kW (49.6 / 24.8 hp) and the 14K 37 / 22 kW (49.6 / 29.5 hp). Through-spindle coolant is an option on the 20K. The 24K uses HSK-A63 tooling, the others MAS-403 BBT-40.
02
The table rating drops from 800 kg (1,764 lb) to 700 kg (1,543 lb). In return, flat plates can be held without clamps, which leaves the top face and edges free for machining.
03
The SIRIUS-UM+ has an 850 x 500 mm (33.5 x 19.7 in) table rated 800 kg (1,764 lb), spindles at 20,000 rpm BBT-40 or 32,000 rpm HSK-E40, and weighs 8,000 kg (17,637 lb). The SIRIUS-UL+ has a 1,200 x 600 mm (47.2 x 23.6 in) table with the same rating, spindles from 12,000 to 24,000 rpm, and weighs 11,800 kg (26,014 lb).
04
When parts outgrow 800 kg (1,764 lb) or need bigger tool shanks. The SIRIUS-UX has a 1,650 x 750 mm (65.0 x 29.5 in) table rated 2,500 kg (5,512 lb) and a BBT-50 spindle at 12,000 or 15,000 rpm rated 30 / 25 kW (40.2 / 33.5 hp).
05
Floor space of 3,990 x 2,740 mm (157.1 x 107.9 in), 3,170 mm (124.8 in) of height and a machine weight of 11,800 kg (26,014 lb). It needs 55 kVA and air at 0.5 to 0.7 MPa x 690 NL/min. The coolant tank holds 430 L (114 US gal).
