Campro PV-3221

Q: How much does the Campro PV-3221 cost?

The price estimate for the Campro PV-3221 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-3221#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

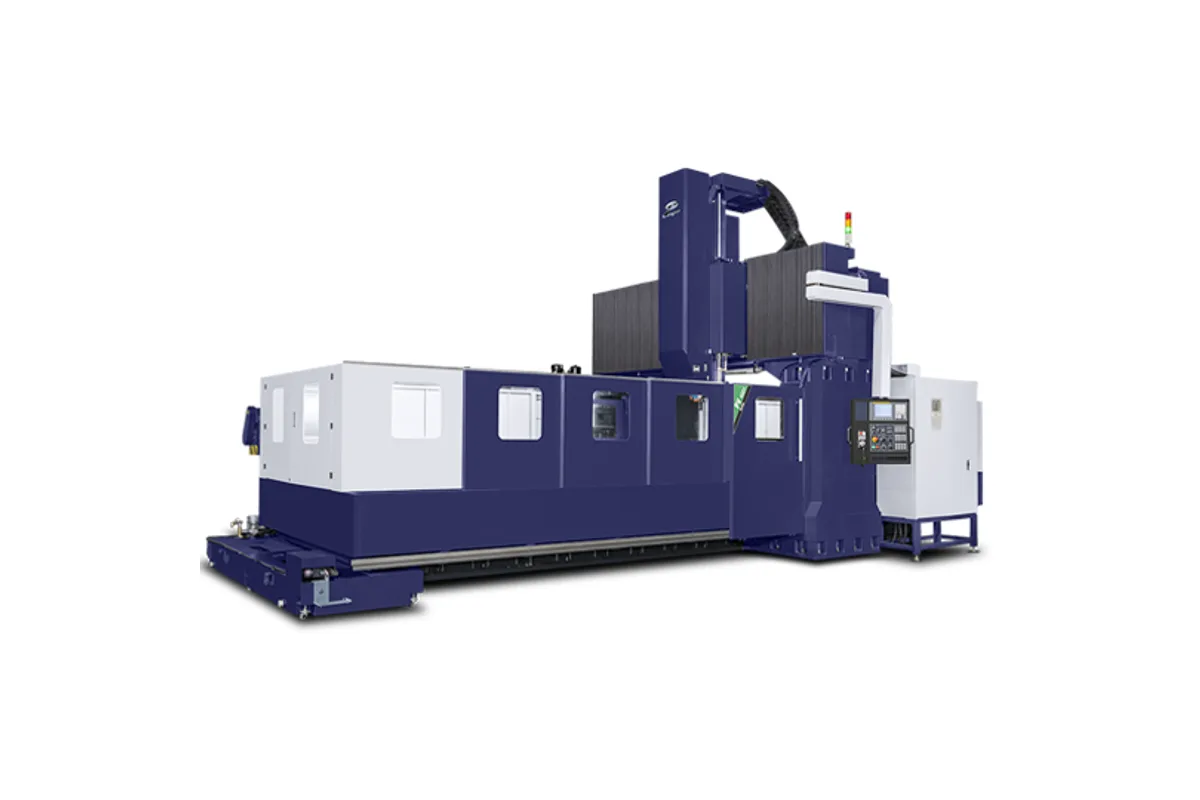

Campro PV series double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

3,000 × 1,700 mm (118.1 in x 66.9 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

3,200 mm (125.9 in)

How much does the Campro PV-3221 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-3221 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro PV-3221 opens the wider half of the PV double column range. X travel is 3,200 mm (125.9 in), Y travel 2,100 mm (82.6 in), and the columns stand 2,200 mm (86.6 in) apart, so a part can be far wider than on the 16-family machines.

Several things change with the wider bridge. Z travel is 800 mm (31.4 in) as standard and 1,000 mm (39.3 in) as an option, which moves the spindle nose range from 200~1,000 mm (7.8 in ~ 39.3 in) to 250~1,250 mm (9.8 in ~ 49.2 in). The table becomes 3,000 × 1,700 mm (118.1 in x 66.9 in) with nine T-slots. Campro says the structure allows different milling heads to be fitted for larger workpieces, naming the automobile and aerospace industries, and lists a fully enclosed top roof cover as an option.

Mass goes up and speed comes down. This machine weighs 35,000 kg (77,161 lb). Rapids are 12 m/min in X and 15 m/min in Y and Z, and the cutting feedrate range is 1~8,000 mm/min. The table load, however, is 8,000 kg (17,636 lb), no higher than the narrower PV-3216. A shop needing both width and weight capacity should look at the PV-3226, rated 12,000 kg (26,455 lb).

The spindle is the PV standard: a 25 HP, 6,000 rpm gear-head unit with a No.50 taper, on a one-piece ram and gear box with a box way Z axis. Campro describes extra heavy load roller linear guideways on X and Y and a 32-tool chain type ATC with a dual arm. The floor plan is 8,800 × 5,000 mm (346 in x 196 in), height 4,200 mm (165 in), power capacity 40 kVA.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (125.9 in)
Y Axis Travel	2,100 mm (82.6 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,200 mm (86.6 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	3,000 × 1,700 mm (118.1 in x 66.9 in)
Max Table Load	8,000 kg (17,636 lb)
T-Slots	22 mm x 9 (0.86 in x 9) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	8,800 × 5,000 mm (346 in x 196 in) (W × D)
Machine Weight	35,000 kg (77,161 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,100 mm (82.6 in) of Y travel with 2,200 mm (86.6 in) between columns
Optional Z travel of 1,000 mm (39.3 in) in place of the standard 800 mm (31.4 in)
Structure prepared for different milling heads, according to Campro
Gear-head 6,000 rpm spindle with 15 / 18.5 kW (25 HP) as standard
Fully enclosed top roof cover available as an option

Limitations

Rapids of 12 / 15 / 15 m/min; the PV-3216 reaches 20 / 20 / 16 m/min
Table load of 8,000 kg (17,636 lb) is the same as on the narrower PV-3216
Cutting feedrate tops out at 8,000 mm/min (314.9 in/min)
35,000 kg (77,161 lb) and 4,200 mm (165 in) tall: check crane height and foundation

Best For

Wide plates and frames up to 1,700 mm across the table Automotive die sets within 3,200 × 2,100 mm of travel Tall fixtures or parts using the optional 1,000 mm (39.3 in) Z Five-face work with an optional milling head

Frequently Asked Questions

01 How wide a workpiece fits the PV-3221?

The distance between columns is 2,200 mm (86.6 in) and Y travel is 2,100 mm (82.6 in). The table itself measures 3,000 × 1,700 mm (118.1 in x 66.9 in) and carries 8,000 kg (17,636 lb). It has nine T-slots 22 mm wide.

02 Is there a longer Z axis option on the PV-3221?

Yes. Standard Z axis travel is 800 mm (31.4 in), and the table lists 1,000 mm (39.3 in) as an option. With the option the spindle nose to table surface distance becomes 250~1,250 mm (9.8 in ~ 49.2 in) instead of 200~1,000 mm (7.8 in ~ 39.3 in).

03 How does the PV-3221 differ from the PV-3226?

The PV-3226 is wider and carries more: 2,600 mm (102.3 in) of Y travel, 2,700 mm (106.2 in) between columns, a 3,000 × 2,200 mm (118.1 in x 86.6 in) table and 12,000 kg (26,455 lb). The PV-3221 has 2,100 mm (82.6 in) of Y and an 8,000 kg (17,636 lb) load. Spindle, feeds and X travel match.

04 What spindle and tool changer does the PV-3221 use?

Campro lists a standard 25HP 6,000 rpm Gear-Head Spindle with a 7/24 taper No.50, and a 32-tool chain type ATC with a dual arm system. Magazines of 40 or 60 tools are optional. Tools can weigh 20 kg (44 lb) and be 350 mm (13.7 in) long.

05 What are the site requirements for the PV-3221?

Floor plan 8,800 × 5,000 mm (346 in x 196 in), maximum machine height 4,200 mm (165 in), machine weight 35,000 kg (77,161 lb). Power capacity is 40 kVA and the air source is 6~8 kg/cm² (85 ~ 113 PSI).
