Campro PV-4221

Q: How much does the Campro PV-4221 cost?

The price estimate for the Campro PV-4221 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-4221#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

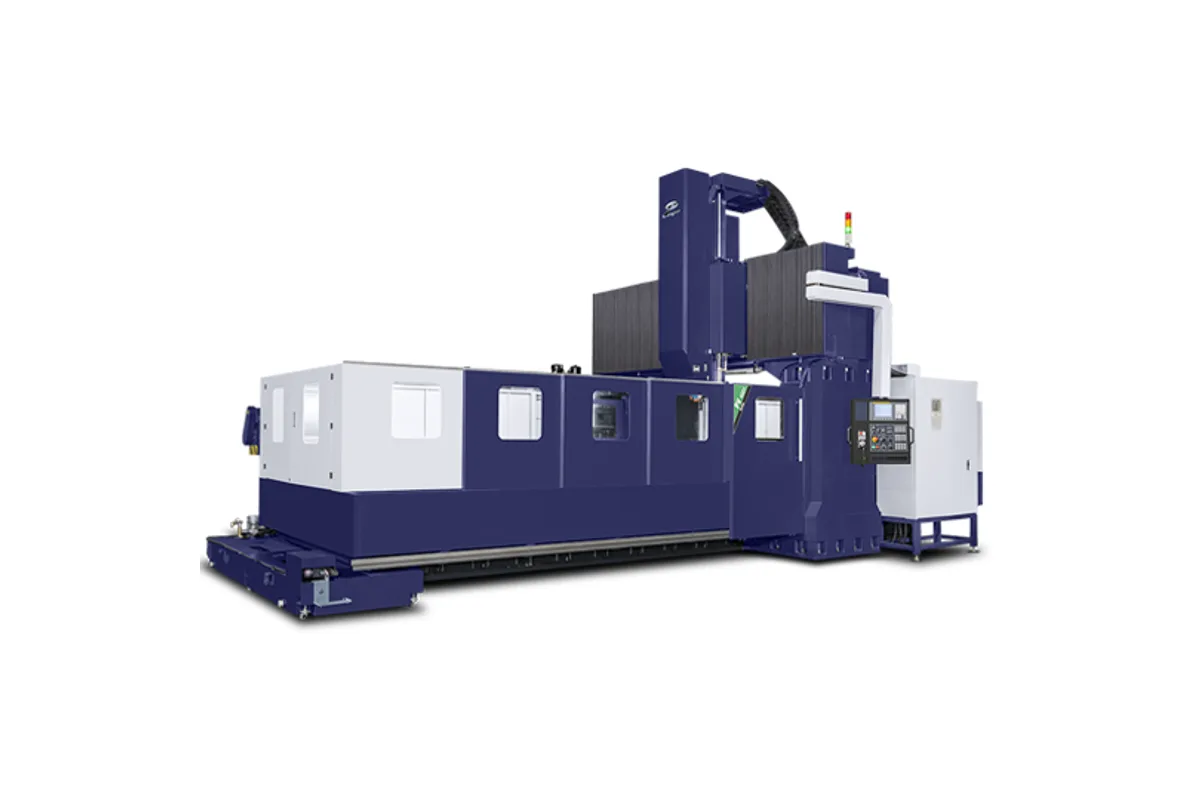

Campro PV-4221 double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

4,000 × 1,700 mm (157.4 in x 66.9 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

4,200 mm (165.3 in)

How much does the Campro PV-4221 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-4221 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 4,000 × 1,700 mm (157.4 in x 66.9 in) table, 10,000 kg (22,046 lb) of load capacity and 2,200 mm (86.6 in) between the columns: the Campro PV-4221 is a double column machining center for parts that are both long and wide. Travels are 4,200 mm (165.3 in) in X, 2,100 mm (82.6 in) in Y and 800 mm (31.4 in) in Z.

Within the 21 family it is the middle length, and the progression is regular. The PV-3221 carries 8,000 kg (17,636 lb), this model 10,000 kg, and the PV-5221 12,000 kg (26,455 lb). Rapids stay at 12 m/min in X and 15 m/min in Y and Z up to this size; the PV-5221 drops to 10 / 12 / 12 m/min. So the PV-4221 is the longest machine in the family that keeps the faster feed set.

Headroom can be extended. The Z stroke is 800 mm as built and 1,000 mm (39.3 in) as an option, giving a spindle nose range of 250~1,250 mm (9.8 in ~ 49.2 in) for tall work or for an angle head under the ram. Campro notes that the structure accepts different milling heads and lists a fully enclosed top roof cover as an option, useful when coolant and chips have to be contained over a table this size.

Cutting is done by a 6,000 rpm gear-head spindle with a 15 / 18.5 kW (25 HP) motor and a No.50 taper. The ram and gear box are one casting on box guideways; X and Y use what Campro calls ultra loading roller type linear guideways. Twin chip screws clear the bed. The magazine holds 32 BT-50 tools.

Installation figures: 38,000 kg (83,775 lb), 10,800 × 5,000 mm (425 in x 196 in), 4,200 mm (165 in) high, 40 kVA.

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.3 in)
Y Axis Travel	2,100 mm (82.6 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,200 mm (86.6 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	4,000 × 1,700 mm (157.4 in x 66.9 in)
Max Table Load	10,000 kg (22,046 lb)
T-Slots	22 mm x 9 (0.86 in x 9) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	10,800 × 5,000 mm (425 in x 196 in) (W × D)
Machine Weight	38,000 kg (83,775 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,200 mm (165.3 in) by 2,100 mm (82.6 in) of travel over a 4,000 × 1,700 mm (157.4 in x 66.9 in) table
10,000 kg (22,046 lb) table load
Keeps 12 / 15 / 15 m/min rapids, where the longer PV-5221 lists 10 / 12 / 12 m/min
Optional 1,000 mm (39.3 in) Z travel and optional fully enclosed top roof cover
Twin chip screws and roller type linear guideways on X and Y

Limitations

Weighs 38,000 kg (83,775 lb), against 30,000 kg (66,138 lb) for the narrower PV-4216
Slower than the PV-4216, which rapids at 20 / 20 / 16 m/min
Table load matches the PV-4216 despite the wider bridge
32 tools as standard; larger magazines of 40 or 60 are options

Best For

Large fabrications and machine bases up to 10,000 kg (22,046 lb) Aerospace and automotive tooling plates up to 4,000 × 1,700 mm Parts needing an angle or extension head under the optional longer Z Wet heavy milling with the roof cover option

Frequently Asked Questions

01 What size table does the PV-4221 have?

The table is 4,000 × 1,700 mm (157.4 in x 66.9 in), with nine T-slots 22 mm wide and a maximum loading weight of 10,000 kg (22,046 lb). The X axis travels 4,200 mm (165.3 in) and the Y axis 2,100 mm (82.6 in), with 2,200 mm (86.6 in) between the columns.

02 How fast are the axes of the PV-4221?

Rapid feedrate is 12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min) in X / Y / Z, and the cutting feedrate range is 1~8,000 mm/min (314.9 in/min). The narrower PV-4216 is quicker at 20 / 20 / 16 m/min.

03 Can the PV-4221 be fitted with other milling heads?

Campro states that the structure provides a wide range of options and that customers can adopt different milling heads to finish larger workpieces, as in the automobile and aerospace industries. The page does not list the head types, so they need to be agreed with the maker.

04 What are the spindle figures for the PV-4221?

Maximum speed 6,000 rpm with a gear-head drive, spindle motor 15 / 18.5 kW (25 HP), 7/24 taper No.50 and BT-50 tool shank. Tools are limited to Ø125 mm (Ø4.9 in), Ø215 mm (Ø8.4 in) with adjacent pockets empty, 350 mm (13.7 in) and 20 kg (44 lb).
