Victor Taichung Vcenter-22W

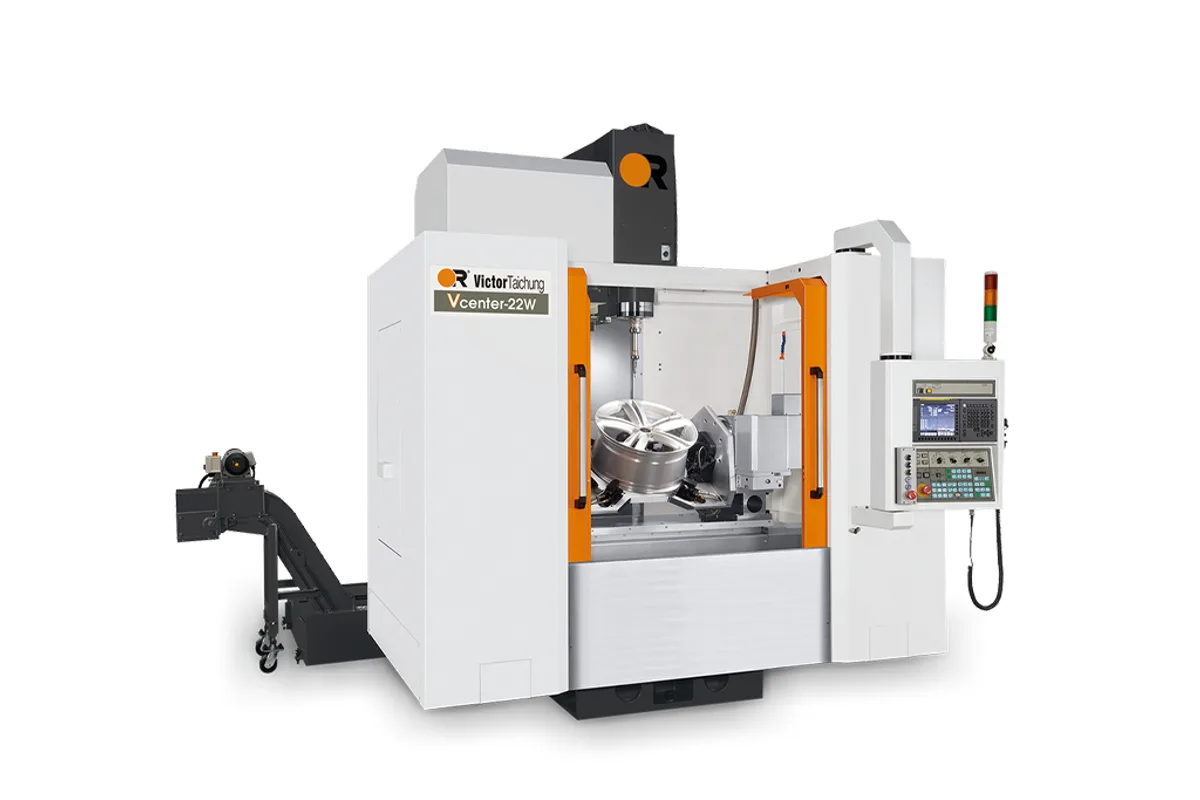

Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Accuracy
Repeatability
x axis travel
How much does the Victor Taichung Vcenter-22W cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-22W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-22W is a vertical machining center set up for alloy wheels up to 22 x 11.5J in. After a wheel has been turned, this is the machine that drills its bolt holes and valve hole. Travels are 850 mm (33.46 in) in X, 650 mm (25.59 in) in Y and 610 mm (24.01 in) in Z.
The standard equipment shows the purpose. A rotary table with a drilling fixture and a 4th axis interface are on the standard list, so the wheel can be indexed from hole to hole and tilted for the valve hole. Either can be left off: the options include delivery without the drilling fixture or without the rotary table, for plants that fit their own.
The spindle is a BT-40 unit at 8,000 rpm with a 16-tool magazine. Sixteen tools would be few on a general machining center, but a wheel needs only a short list of drills, chamfer tools and reamers. Rigid tapping is standard. Positioning accuracy is listed at 0.010 mm and repeatability at 0.007 mm (±0.0035 mm), which is what bolt-circle position depends on.
The machine weighs 7,450 kg (16,424.41 lb). The maker's table gives no table size, load or spindle power for it, only the wheel size it accepts. A chip conveyor, an auto door and coolant through the spindle are options.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 850 mm (33.46 in) |
| Y Axis Travel | 650 mm (25.59 in) |
| Z Axis Travel | 610 mm (24.01 in) |
| Max Wheel Size | 22 x 11.5J in |
| Spindle Taper | BT-40 |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 16 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 7,450 kg (16,424.41 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Rotary table with drilling fixture and 4th axis interface are standard
- Takes alloy wheels up to 22 x 11.5J in
- 650 mm (25.59 in) of Y travel and 610 mm (24.01 in) of Z
- Listed accuracy of 0.010 mm for bolt-hole position
- Can be supplied without fixture or rotary table
Limitations
- Only 16 tools in the magazine
- Spindle speed is 8,000 rpm, low for small drills in aluminium
- Chip conveyor and auto door are options
- No table size, load or spindle power is published for the model
Best For
Frequently Asked Questions
01
It is a vertical machining center for alloy wheels, supplied with a rotary table and a drilling fixture as standard. The table gives a maximum wheel size of 22 x 11.5J in.
02
850 mm (33.46 in) in X, 650 mm (25.59 in) in Y and 610 mm (24.01 in) in Z. Listed accuracy is 0.010 mm and repeatability is 0.007 mm (±0.0035 mm).
03
A BT-40 spindle with a maximum speed of 8,000 rpm and a 16-tool magazine, with tools of up to 7 kg (15.43 lb). Rigid tapping is on the standard list.
04
Yes. The option list includes delivery without the drilling fixture and without the rotary table. Coolant through the spindle, tool length measurement and part measuring are options as well.
