Campro CNV-1100

Q: How much does the Campro CNV-1100 cost?

The price estimate for the Campro CNV-1100 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cnv-1100#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

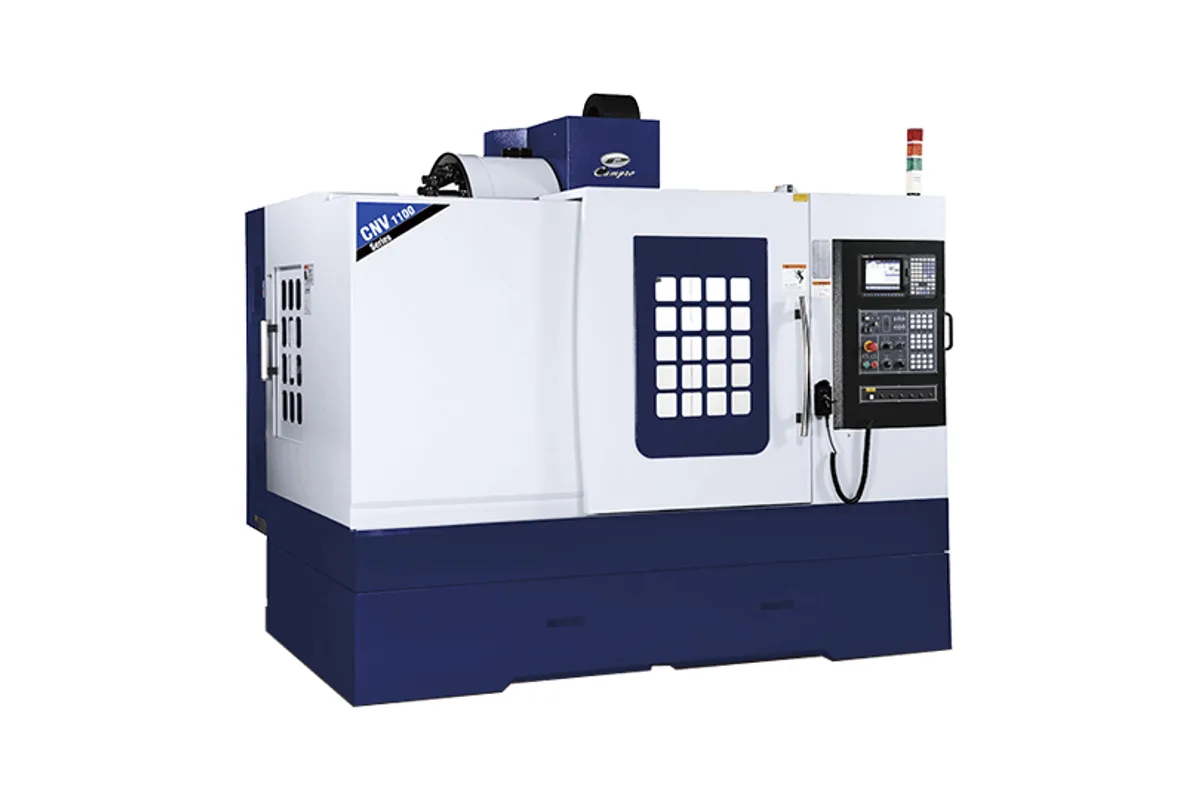

Campro CNV-1100 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)

Spindle Taper

7/24 taper No.40

Tool Capacity

24 (OPT: 20)

Table Size

1,200 × 550 mm (47.2 in x 21.6 in)

Spindle Power

7.5 / 11 kW (15 HP)

x axis travel

1,100 mm (43.3 in)

How much does the Campro CNV-1100 cost?

Price estimate

Uncertain

We do not have a price for the Campro CNV-1100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

On paper the Campro CNV-1100 is barely longer in X than the model below it. In construction it is a different vertical machining center. Travels are 1,100 mm (43.3 in), 580 mm (22.8 in) and 560 mm (22 in), and the table of 1,200 × 550 mm (47.2 in x 21.6 in) carries 700 kg (1,543 lb).

Campro's feature list for this model reads unlike the one for the smaller CNV machines. The Z axis runs on box guideways, which the maker says increase rigidity and minimise vibration. A counter-balance system with its own guide rail steadies the head during fast feed. X and Y use heavy loading linear guideways, the table is supported by three blocks on the X axis, and the base and saddle are described as extra wide and massive. The result weighs 6,700 kg (14,770 lb), a full tonne more than the CNV-1050.

The head pays a small speed penalty for its box way. Z rapids at 24 m/min while X and Y keep 30 m/min. In return the machine should hold a cut better in Z-heavy work such as drilling, boring and plunge roughing, though Campro publishes no thrust or torque figures to quantify it.

The spindle motor does not grow with the frame: 7.5 / 11 kW (15 HP) at 8,000 rpm, with 10,000, 12,000 and 15,000 rpm options. Twenty-four BT-40 tools are held in an arm type changer. Spindle nose to table distance is 90~650 mm (3.5 in ~ 25.5 in). The floor plan is 3,370 × 2,500 mm (132 in x 98 in) and power capacity 15 kVA.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	580 mm (22.8 in)
Z Axis Travel	560 mm (22 in)
Distance Spindle Nose to Table	90~650 mm (3.5 in ~ 25.5 in)
Distance Spindle Center to Column	630 mm (24.8 in)
Table Size	1,200 × 550 mm (47.2 in x 21.6 in)
Max Table Load	700 kg (1,543 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	8,000 rpm (OPT: 10,000 / 12,000 / 15,000 rpm)
Spindle Motor Power	7.5 / 11 kW (15 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type (OPT: Carrousel)
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	24 (OPT: 20)
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø150 mm (Ø5.9 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	30 / 30 / 24 m/min (1,181.1 / 1,181.1 / 944.8 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,370 × 2,500 mm (132 in x 98 in) (W × D)
Machine Weight	6,700 kg (14,770 lb)
Machine Height	2,815 mm (110 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	15 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Box guideways on the Z axis with linear guideways on X and Y
Counter-balance system with a guide rail for stability at high feedrate
700 kg (1,543 lb) table load, supported by three blocks on the X axis
580 mm (22.8 in) of Y travel, more than the 550 mm table depth
6,700 kg (14,770 lb) of machine on a 15 kVA supply

Limitations

Z rapid is 24 m/min; the CNV-1050 moves at 30 m/min in Z
Spindle motor is still 7.5 / 11 kW (15 HP)
Floor plan of 3,370 × 2,500 mm (132 in x 98 in) is deeper than the CNV-1050 needs
No thrust or torque figures are published

Best For

Drilling, boring and plunge cuts that load the Z axis Mold plates and fixtures up to 700 kg (1,543 lb) Mixed steel and aluminium job work on a 1,200 mm (47.2 in) table Buyers who want a stiffer head without moving to a full box-way machine

Frequently Asked Questions

01 What guideways does the CNV-1100 have?

Campro states that the Z axis has box guideways to increase rigidity and minimise vibration, while the X and Y axes use precision heavy loading linear guideways. Three blocks on the X axis give full support to the working table. A counter-balance system with a guide rail is fitted.

02 How do the CNV-1100 and CNV-1300 compare?

They share the same construction and spindle. The CNV-1300 has 1,300 mm (51.1 in) of X, 600 mm (23.6 in) of Y and 610 mm (24 in) of Z, a 900 kg (1,984 lb) load and a 20 kVA power capacity. The CNV-1100 has 1,100 mm (43.3 in), 580 mm (22.8 in) and 560 mm (22 in), with 700 kg (1,543 lb) and 15 kVA.

03 What are the spindle options on the CNV-1100?

The standard spindle speed is 8,000 rpm with a 7.5 / 11 kW (15 HP) motor on a 7/24 taper No.40. Optional speeds are 10,000, 12,000 and 15,000 rpm. The tool shank is BT-40 and tools are limited to 7 kg (15 lb).

04 How fast does the CNV-1100 move?

Rapid feedrate is 30 / 30 / 24 m/min (1,181.1 / 1,181.1 / 944.8 in/min) in X / Y / Z. Cutting feedrate is 10,000 mm/min (393.7 in/min). Tool change takes 2.5 sec tool to tool and 7 sec chip to chip.
