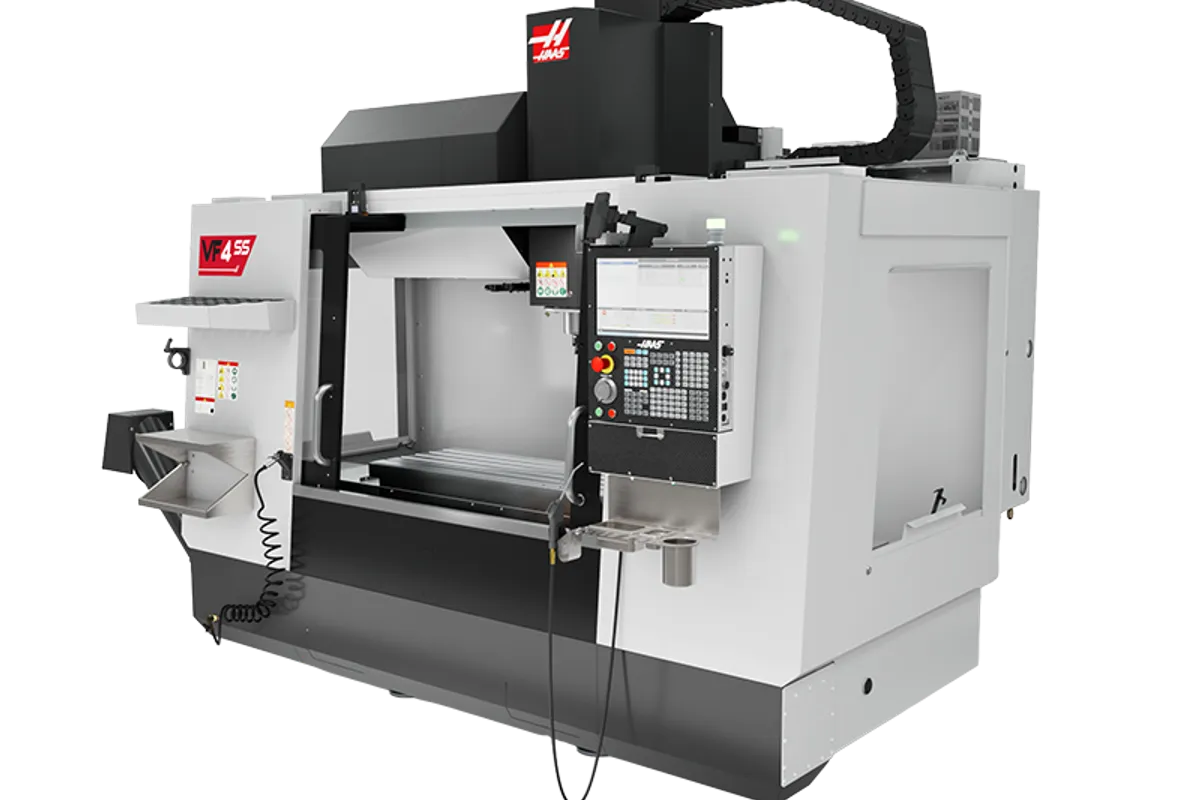

Haas VF-4SS
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VF-4SS cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
A long table of small parts is the natural job for the Haas VF-4SS. It pairs 50 in (1,270 mm) of X travel with a 12,000 rpm spindle and 1,400 ipm (35.6 m/min) rapids, so the time spent moving from one vise to the next and changing tools is kept short. Y travel is 20 in (508 mm), Z is 25 in (635 mm), and the spindle is 40-taper.
The numbers behind that: the side-mount changer holds 30+1 tools and swaps them in 1.8 s tool-to-tool, 2.4 s chip-to-chip. Cutting feed goes up to 833 ipm (21.2 m/min). The VF-4, on the same 52 × 19.5 in (1,321 × 495 mm) table, has an 8,100 rpm spindle, 1,000 ipm (25.4 m/min) rapids and a 20-tool carousel.
Speed is paid for in load. The table is rated 1,750 lb (794 kg), half the VF-4's 3,500 lb (1,588 kg). The spindle makes 30 hp (22.4 kW) and 90 ft-lbf (122 N·m) at 2,000 rpm with no gearbox row in the table, and thrust is 3,085 lbf (13,723 N) on X and Y and 3,925 lbf (17,459 N) on Z. A full magazine restricts tool diameter to 2.5 in (64 mm); 5 in (127 mm) is possible beside empty pockets, and length runs to 13 in (330 mm).
Haas's shipping table lists this model in several builds and gives no weight for the bare machine. With the conveyor it is 13,800 lb (6,260 kg); with the 50+1 side-mount tool changer, 12,181 lb (5,525 kg); with the 70+1 changer, 13,840 lb (6,278 kg). There is also a pallet-size row for a 120+1 changer with conveyor. The starting price is US$107,995. If the work needs more Y, the VF-5SS has 26 in (660 mm) on a 54 × 24 in (1,372 × 610 mm) table, with rapids of 1,200 ipm (30.5 m/min).
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 50 in (1,270 mm) |
| Y-Axis Travel | 20 in (508 mm) |
| Z-Axis Travel | 25 in (635 mm) |
| Spindle Nose to Table (max) | 29.2 in (742 mm) |
| Spindle Nose to Table (min) | 4.2 in (107 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| Table Size | 52 × 19.5 in (1,321 × 495 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 3.15 in (80 mm) |
| T-Slots | 5 |
| Max Table Load | 1,750 lb (794 kg) |
| Max Cutting Feedrate | 833 ipm (21.2 m/min) |
| Rapid Traverse Rate | 1,400 ipm (35.6 m/min) |
| Max Thrust X | 3,085 lbf (13,723 N) |
| Max Thrust Y | 3,085 lbf (13,723 N) |
| Max Thrust Z | 3,925 lbf (17,459 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Length | 13 in (330 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 1.8 s |
| Tool Change (chip-to-chip) | 2.4 s |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 152 × 99 × 106 in (387 × 251 × 269 cm) |
| Shipping Export Pallet | 131 × 91.5 × 101 in (333 × 233 × 257 cm) |
| Shipping Domestic Pallet with Conveyor | 152 × 102 × 109 in (387 × 260 × 277 cm) |
| Shipping Export Pallet with Conveyor | 163 × 92 × 101 in (414 × 233 × 257 cm) |
| Machine Weight with Conveyor | 13,800 lb (6,260 kg) |
| Shipping Domestic Pallet with 50 plus 1 SMTC | 152 × 99 × 122 in (387 × 251 × 310 cm) |
| Shipping Export Pallet with 50 plus 1 SMTC | 163 × 92 × 101 in (414 × 232 × 257 cm) |
| Machine Weight with 50 plus 1 SMTC | 12,181 lb (5,525 kg) |
| Shipping Domestic Pallet with Conveyor 50 plus 1 SMTC | 152 × 99 × 122 in (387 × 251 × 310 cm) |
| Shipping Export Pallet with Conveyor 50 plus 1 SMTC | 163 × 92 × 101 in (414 × 233 × 257 cm) |
| Shipping Domestic Pallet with 70 plus 1 SMTC | 152 × 99 × 134.5 in (386 × 252 × 342 cm) |
| Shipping Export Crate with 70 plus 1 SMTC | 152 × 101.5 × 141.5 in (386 × 258 × 359 cm) |
| Machine Weight with 70 plus 1 SMTC | 13,840 lb (6,278 kg) |
| Machine Weight with Conveyor 50 plus 1 SMTC | 13,420 lb (6,087 kg) |
| Shipping Domestic Pallet with Conveyor 120 plus 1 SMTC | 168 × 130 × 125 in (427 × 330 × 318 cm) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 12,000 rpm spindle and 1,400 ipm (35.6 m/min) rapids over 50 in (1,270 mm) of X travel
- 1.8 s tool-to-tool and 2.4 s chip-to-chip with 30+1 tools
- Faster rapids than the wider VF-5SS, which is listed at 1,200 ipm (30.5 m/min)
- Shipping table carries rows for 50+1, 70+1 and 120+1 side-mount tool changers as alternative configurations
- Cutting feedrate up to 833 ipm (21.2 m/min), against 650 ipm (16.5 m/min) on the VF-4
Limitations
- Table load is 1,750 lb (794 kg) on a 52 in (1,321 mm) long table; the VF-4 carries 3,500 lb (1,588 kg)
- Only 20 in (508 mm) of Y travel and a 19.5 in (495 mm) wide table
- No gearbox is listed; torque is 90 ft-lbf (122 N·m) at 2,000 rpm
- Tools wider than 2.5 in (64 mm) need the adjacent magazine pockets left empty
Best For
Frequently Asked Questions
01
The spindle turns at up to 12,000 rpm. Rapids are 1,400 ipm (35.6 m/min) and the maximum cutting feedrate is 833 ipm (21.2 m/min). A tool change takes 1.8 s tool-to-tool and 2.4 s chip-to-chip. On a 50 in (1,270 mm) X axis those figures matter most when a program visits many parts or many features per cycle.
02
Table load, mainly. The VF-4SS is rated 1,750 lb (794 kg) and the VF-4 3,500 lb (1,588 kg). Haas's table for the VF-4SS also shows no gearbox torque figure, and a full magazine limits tool diameter to 2.5 in (64 mm). Travels, table size, 30 hp (22.4 kW) power and 90 ft-lbf (122 N·m) torque are the same on both.
03
Haas's shipping section gives no figure for the machine without options. It lists 12,181 lb (5,525 kg) with the 50+1 side-mount tool changer, 13,800 lb (6,260 kg) with the conveyor, 13,420 lb (6,087 kg) with both, and 13,840 lb (6,278 kg) with the 70+1 changer. The domestic pallet for the base build is 152 × 99 × 106 in (387 × 251 × 269 cm). Ask for the weight of the exact build before arranging rigging.
04
CT40, BT40 or HSK-A63 holders, up to 13 in (330 mm) long and 12 lb (5.4 kg). Diameter is 2.5 in (64 mm) with tools in the neighbouring pockets and 5 in (127 mm) with those pockets empty.
05
Not under that name. The nearest machine is the VF-5SS, which has the same 50 in (1,270 mm) of X with 26 in (660 mm) of Y and a 54 × 24 in (1,372 × 610 mm) table. The VF-5SS has the same 12,000 rpm spindle and 1,750 lb (794 kg) table load, and its rapids are 1,200 ipm (30.5 m/min) where the VF-4SS has 1,400 ipm (35.6 m/min).

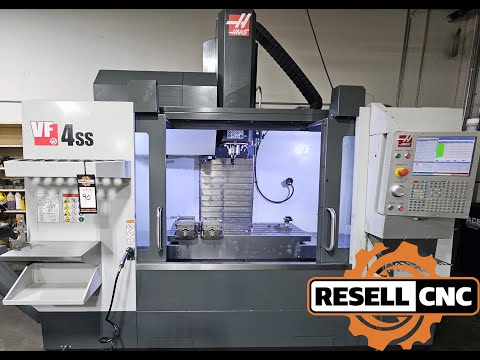

Videos
