Campro CPV-1600B-BT50

Q: How much does the Campro CPV-1600B-BT50 cost?

The price estimate for the Campro CPV-1600B-BT50 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-1600b-bt50#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

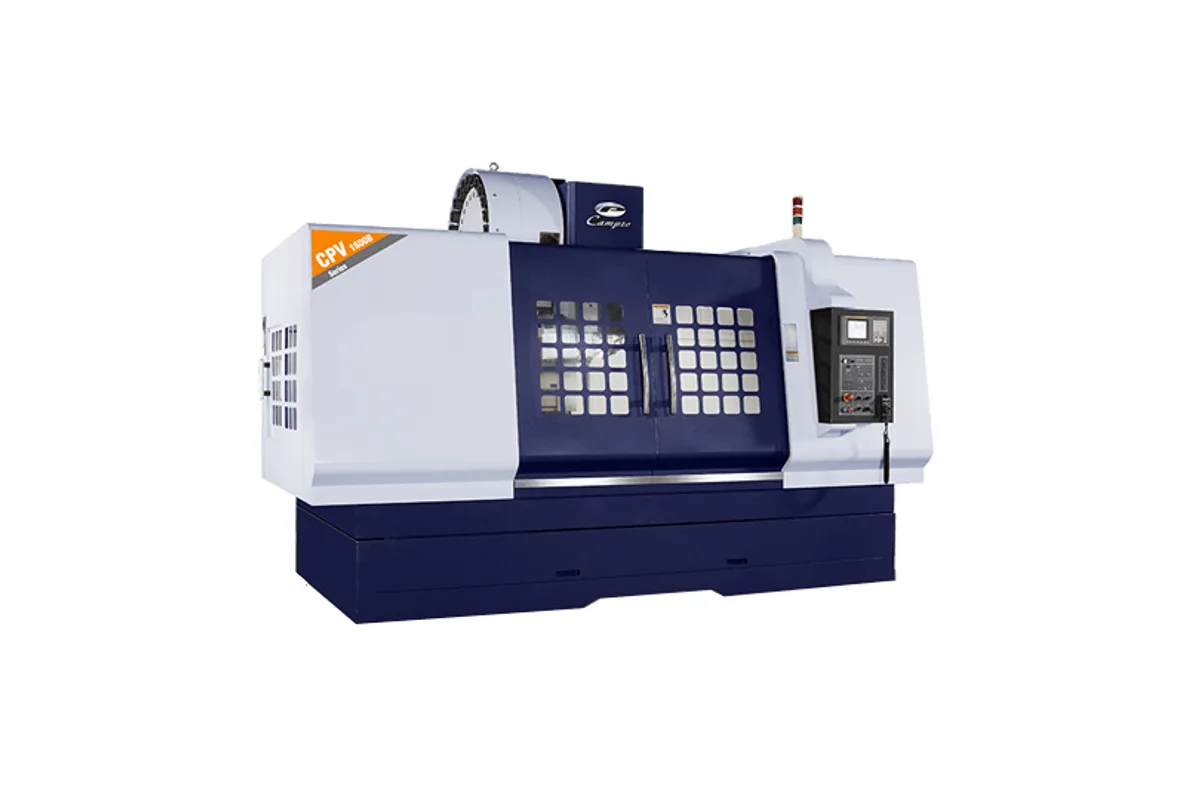

Campro CPV-1600B-BT50 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 taper No.50

Tool Capacity

Table Size

1,800 × 800 mm (70.8 in x 31.4 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,600 mm (62.9 in)

How much does the Campro CPV-1600B-BT50 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-1600B-BT50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPV-1600B-BT50 is a 15,000 kg (33,069 lb) box-way vertical machining center for die, mold and structural parts. Travels are 1,600 mm (62.9 in), 830 mm (32.6 in) and 700 mm (27.5 in) in X, Y and Z, and the spindle is a 6,000 rpm unit with a 7/24 taper No.50.

The work it is meant for is easiest to see in the tool limits. A BT-50 tool here can weigh 15 kg (33 lb), measure 300 mm (11.8 in) long and Ø110 mm (Ø4.3 in) across, or Ø200 mm (Ø7.8 in) if its neighbours are left out of the magazine. The table, 1,800 × 800 mm (70.8 in x 31.4 in), carries 2,000 kg (4,409 lb) on a base that Campro says has 4 boxway type guideways.

Standard power is 11 / 15 kW (20 HP) through a belt type spindle. That is a moderate motor for a 50-taper machine of this weight, and it is why the option list matters: Campro offers a two-speed planetary gear head spindle for heavy cutting. A shop that plans to rough tool steel should treat the gear head as part of the base specification and ask Campro for its torque figures, which are not published on the page.

Axis speeds are 15 m/min in X and Y and 12 m/min in Z. Tool change is 3.5 sec tool to tool and 7 sec chip to chip, from a 24-tool arm type changer. Spindle nose to table distance spans 150~850 mm (5.9 in ~ 33.4 in). The machine needs 30 kVA, 6~8 kg/cm² of air and 4,300 × 3,245 mm (169 in x 127 in) of floor.

Full Specifications

Parameter	Value
X Axis Travel	1,600 mm (62.9 in)
Y Axis Travel	830 mm (32.6 in)
Z Axis Travel	700 mm (27.5 in)
Distance Spindle Nose to Table	150~850 mm (5.9 in ~ 33.4 in)
Distance Spindle Center to Column	850 mm (33.4 in)
Table Size	1,800 × 800 mm (70.8 in x 31.4 in)
Max Table Load	2,000 kg (4,409 lb)
T-Slots	22 mm x 6 x 125 mm (0.8 in x 6 x 4.9 in) (W x No. x P)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.50
ATC Type	Arm type
Tool Shank	BT-50
Pull Stud	P-50T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø110 mm (Ø4.3 in)
Max Tool Diameter (adjacent pockets empty)	Ø200 mm (Ø7.8 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Time	3.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	15 / 15 / 12 m/min (590.5 x 590.5 x 472.4 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	4,300 × 3,245 mm (169 in x 127 in) (W × D)
Machine Weight	15,000 kg (33,069 lb)
Machine Height	3,200 mm (125 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	30 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

50-taper spindle with tools up to 15 kg (33 lb) and Ø200 mm (Ø7.8 in) beside empty pockets
Optional two-speed planetary gear head spindle for heavy cutting
2,000 kg (4,409 lb) table load on 4 boxway type guideways
15,000 kg (33,069 lb) machine with box ways on all 3 axes
150~850 mm (5.9 in ~ 33.4 in) of spindle nose clearance for long tools

Limitations

Standard motor is 11 / 15 kW (20 HP), with the gear head an extra-cost option
6,000 rpm top speed; the CPV-1600B-BT40 reaches 8,000 rpm
Rapids of 15 / 15 / 12 m/min make long positioning moves slow
Only 24 tools, and 7 sec chip to chip

Best For

Die and mold roughing on blocks up to 2,000 kg (4,409 lb) Heavy face milling with cutters up to Ø200 mm (Ø7.8 in) Deep boring with tools up to 300 mm (11.8 in) long Structural and automotive tooling parts up to 1,600 mm (62.9 in) long

Frequently Asked Questions

01 What spindle options does the CPV-1600B-BT50 have?

The standard spindle is belt type, 6,000 rpm, with an 11 / 15 kW (20 HP) motor and class P4 angular contact ball bearings. Campro lists an optional two-speed planetary gear head spindle, which it describes as delivering outstanding heavy cutting performance. Torque and geared speed ranges are not published.

02 How large and heavy can a tool be on the CPV-1600B-BT50?

Maximum tool diameter is Ø110 mm (Ø4.3 in), rising to Ø200 mm (Ø7.8 in) with adjacent pockets empty. Maximum tool length is 300 mm (11.8 in) and maximum tool weight is 15 kg (33 lb). The shank is BT-50 with a P-50T (45°) pull stud.

03 How does the CPV-1600B-BT50 differ from the CPV-1800B?

The CPV-1800B adds X travel and table length: 1,800 mm (70.8 in) of X and a 2,000 × 800 mm (78.7 in x 31.4 in) table carrying 2,200 kg (4,850 lb). Y and Z travels, the 6,000 rpm spindle and the tool changer figures are the same on both. The CPV-1600B-BT50 weighs 15,000 kg (33,069 lb).

04 What table does the CPV-1600B-BT50 have?

A 1,800 × 800 mm (70.8 in x 31.4 in) table rated for 2,000 kg (4,409 lb). T-slots are 22 mm wide, six in number, at 125 mm pitch. Campro states that the CPV-1600B table base design uses 4 boxway type guideways.
