Campro CPV-1100B-BT40

Q: How much does the Campro CPV-1100B-BT40 cost?

The price estimate for the Campro CPV-1100B-BT40 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-1100b-bt40#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

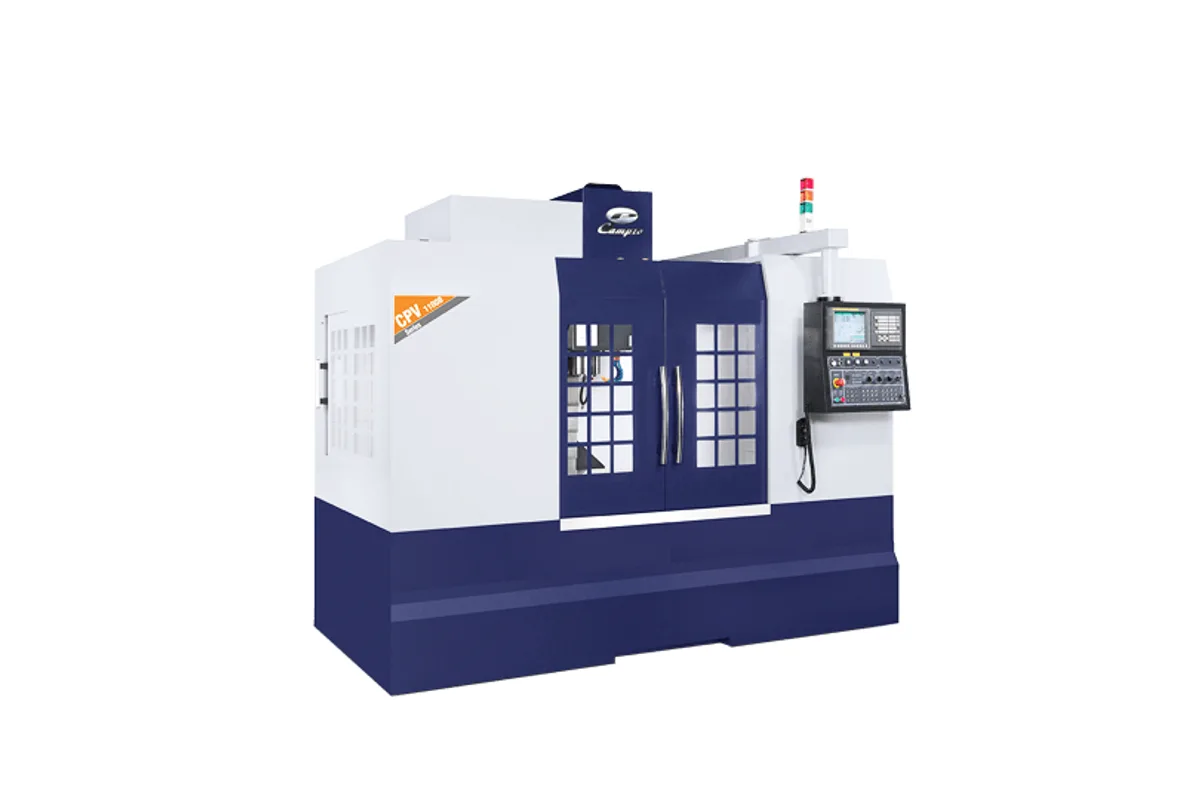

Campro CPV-1100B-BT40 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

8,000 rpm

Spindle Taper

7/24 taper No.40

Tool Capacity

Table Size

1,200 × 600 mm (47.2 in x 23.6 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,100 mm (43.3 in)

How much does the Campro CPV-1100B-BT40 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-1100B-BT40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Campro sells the CPV-1100B frame with two spindles, and the CPV-1100B-BT40 is the 40-taper version: a box-way vertical machining center with travels of 1,100 mm (43.3 in), 620 mm (24.4 in) and 600 mm (23.6 in) in X, Y and Z, and an 8,000 rpm spindle.

Set the two tables side by side and the frame is plainly shared. Travels, the 1,200 × 600 mm (47.2 in x 23.6 in) table, the 1,100 kg (2,425 lb) load and the 3,325 × 2,700 mm (130 in x 106 in) floor plan are identical on the CPV-1100B-BT50. Both list an 11 / 15 kW (20 HP) spindle motor. So the choice between them is about tooling and speed, not machine size.

On this version the spindle reaches 8,000 rpm against the 6,000 rpm of the CPV-1100B-BT50, the Z axis rapids at 20 m/min instead of 15 m/min, and tool changes are quicker: 2.5 sec tool to tool and 6 sec chip to chip. What it gives up is tool size. BT-40 tools are limited to Ø80 mm (Ø3.1 in), 250 mm (9.8 in) and 7 kg (15 lb). The machine is also lighter, at 6,500 kg (14,330 lb) against 7,000 kg (15,432 lb) for the CPV-1100B-BT50, and asks for 20 kVA.

Y travel of 620 mm (24.4 in) slightly exceeds the 600 mm table depth, and the spindle center is 670 mm (26.3 in) from the column. Campro lists box ways on 3 axes, a belt type spindle with class P4 bearings and a standard spindle oil cooler. No control is named on the page.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	620 mm (24.4 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	120~720 mm (4.7 in ~ 28.3 in)
Distance Spindle Center to Column	670 mm (26.3 in)
Table Size	1,200 × 600 mm (47.2 in x 23.6 in)
Max Table Load	1,100 kg (2,425 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	8,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø150 mm (Ø5.9 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	6 sec
Rapid Traverse Xyz	20 / 20 / 20 m/min (787.4 / 787.4 / 787.4 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,325 × 2,700 mm (130 in x 106 in) (W × D)
Machine Weight	6,500 kg (14,330 lb)
Machine Height	2,880 mm (113 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	20 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

8,000 rpm on an 11 / 15 kW (20 HP) motor, where the CPV-1100B-BT50 stops at 6,000 rpm
20 m/min rapids on X, Y and Z, including Z
Chip to chip time of 6 sec with a 24-tool arm type changer
1,100 kg (2,425 lb) table load on a 1,200 × 600 mm (47.2 in x 23.6 in) table
Lower power supply requirement than the CPV-1100B-BT50: 20 kVA against 25 kVA

Limitations

Tools limited to 7 kg (15 lb) and Ø80 mm (Ø3.1 in); the CPV-1100B-BT50 takes 15 kg (33 lb) and Ø110 mm (Ø4.3 in)
8,000 rpm is modest for small-tool finishing, and the table lists no faster option
Z travel of 600 mm (23.6 in) is well short of the 780 mm (30.7 in) of the CPV-1050B
Rapids of 20 m/min are slower than the 30 m/min of the CPV-1050B

Best For

General 40-taper milling and drilling of parts up to 1,100 kg (2,425 lb) Plates and mold bases that fit a 1,200 × 600 mm (47.2 in x 23.6 in) table Shops standardised on BT-40 tooling that want a box-way machine Mixed work where tool change time counts more than large-cutter capacity

Frequently Asked Questions

01 What is the difference between the CPV-1100B-BT40 and the CPV-1100B-BT50?

The spindle and tool changer. The CPV-1100B-BT40 has a No.40 taper at 8,000 rpm, tools to 7 kg (15 lb) and a 6 sec chip to chip time. The CPV-1100B-BT50 has a No.50 taper at 6,000 rpm, tools to 15 kg (33 lb) and 7 sec chip to chip. Travels, table and floor plan are the same.

02 What are the travels of the CPV-1100B-BT40?

1,100 mm (43.3 in) in X, 620 mm (24.4 in) in Y and 600 mm (23.6 in) in Z. Spindle nose to table surface is 120~720 mm (4.7 in ~ 28.3 in) and spindle center to column is 670 mm (26.3 in). The table is 1,200 × 600 mm (47.2 in x 23.6 in).

03 How heavy is the CPV-1100B-BT40 and what does it need?

Machine weight is 6,500 kg (14,330 lb), on a 3,325 × 2,700 mm (130 in x 106 in) floor plan with a maximum height of 2,880 mm (113 in). The power supply is 20 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).

04 What guideways does the CPV-1100B-BT40 use?

Campro states that the series has box ways on 3 axes, with precision scraping on both the bonded Turcite-B and the cast iron surfaces. The ball screws are pretensioned class C3 and all three axes are direct drive through a backlash free coupling. An automatic lubrication unit with pressure failure detection is listed.
