Campro CPV-850B

Q: How much does the Campro CPV-850B cost?

The price estimate for the Campro CPV-850B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-850b#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

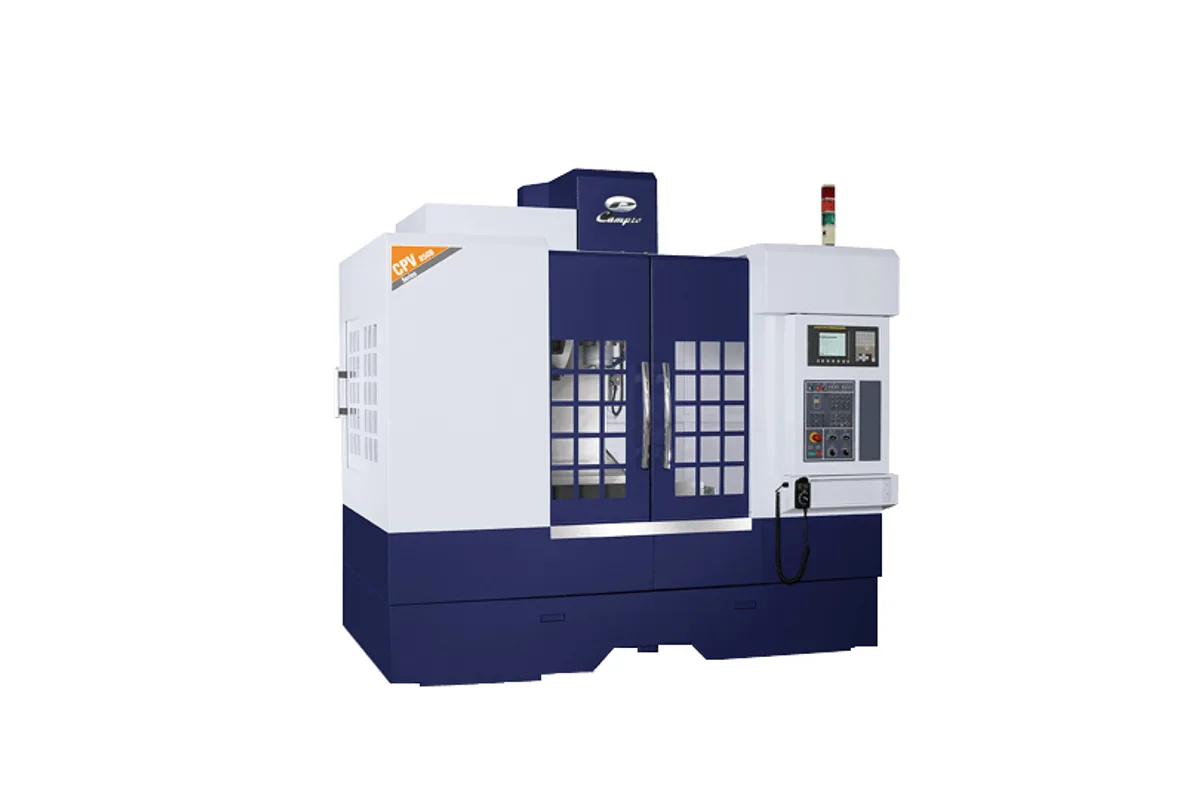

Campro CPV-850B vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

8,000 rpm

Spindle Taper

7/24 taper No.40

Tool Capacity

Table Size

950 × 530 mm (37.4 in x 20.8 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

850 mm (33.4 in)

How much does the Campro CPV-850B cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-850B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPV-850B is the smallest box-way vertical machining center in the CPV-B line, with 850 mm (33.4 in) of X travel and 530 mm (20.8 in) in both Y and Z. The table measures 950 × 530 mm (37.4 in x 20.8 in) and carries 800 kg (1,763 lb).

Box ways are the point of the machine. Campro states that all 3 axes run on box ways, with Turcite-B bonded surfaces scraped against cast iron, and the weight shows it: 6,000 kg (13,227 lb) on a 2,700 × 2,428 mm (106 in x 95 in) floor plan. The linear-guide CNV-850 with the same X travel weighs 5,000 kg (11,023 lb) and carries 500 kg (1,102 lb) on its table. The cost of sliding ways is speed. Rapids are 20 m/min on each axis here, against 30 m/min on the CNV-850.

The spindle is a 40-taper belt type unit, which Campro says uses class P4 angular contact ball bearings and comes with an oil cooler as standard. It runs to 8,000 rpm with an 11 / 15 kW (20 HP) motor. An arm type changer holds 24 BT-40 tools and swaps them in 2.5 sec tool to tool, 6 sec chip to chip.

Spindle nose to table distance is 100~630 mm (3.9 in ~ 24.8 in), and the spindle center sits 590 mm (23.2 in) from the column. Services are modest: 20 kVA and 6~8 kg/cm² (85 ~ 113 PSI) of air. Campro's page does not name the control.

Full Specifications

Parameter	Value
X Axis Travel	850 mm (33.4 in)
Y Axis Travel	530 mm (20.8 in)
Z Axis Travel	530 mm (20.8 in)
Distance Spindle Nose to Table	100~630 mm (3.9 in ~ 24.8 in)
Distance Spindle Center to Column	590 mm (23.2 in)
Table Size	950 × 530 mm (37.4 in x 20.8 in)
Max Table Load	800 kg (1,763 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	8,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø150 mm (Ø5.9 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	6 sec
Rapid Traverse Xyz	20 / 20 / 20 m/min (787.4 / 787.4 / 787.4 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	2,700 × 2,428 mm (106 in x 95 in) (W × D)
Machine Weight	6,000 kg (13,227 lb)
Machine Height	2,780 mm (109 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	20 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Box ways on all 3 axes in a compact frame: 6,000 kg (13,227 lb) on 2,700 × 2,428 mm (106 in x 95 in)
Table load of 800 kg (1,763 lb), where the linear-guide CNV-850 is rated 500 kg (1,102 lb)
11 / 15 kW (20 HP) spindle motor on an 8,000 rpm belt type spindle with a standard oil cooler
Arm type 24-tool changer at 2.5 sec tool to tool and 6 sec chip to chip
Pretensioned class C3 ball screws with direct drive and a backlash free coupling on all three axes, per Campro

Limitations

Rapids are 20 m/min on X, Y and Z; the CNV-850 reaches 30 m/min
8,000 rpm is the only spindle speed listed, with no higher-speed option in the table
Y travel of 530 mm (20.8 in) equals the table depth, leaving no overtravel for fixtures that overhang
Tools are limited to 7 kg (15 lb) and 250 mm (9.8 in) length

Best For

Steel and cast iron parts that fit 850 × 530 × 530 mm of travel Mold bases and die components up to 800 kg (1,763 lb) Heavier cuts in a small footprint, where box ways matter more than rapid speed General 40-taper job work at up to 8,000 rpm

Frequently Asked Questions

01 What are the travels and table size of the CPV-850B?

X travel is 850 mm (33.4 in), Y is 530 mm (20.8 in) and Z is 530 mm (20.8 in). The table is 950 × 530 mm (37.4 in x 20.8 in) with 18 mm T-slots, five of them at 100 mm pitch, and the maximum loading weight is 800 kg (1,763 lb).

02 How does the CPV-850B differ from the CNV-850?

Both have 850 mm (33.4 in) of X travel and an 8,000 rpm standard spindle. The CPV-850B uses box ways on 3 axes, weighs 6,000 kg (13,227 lb), carries 800 kg (1,763 lb) and rapids at 20 m/min. The CNV-850 weighs 5,000 kg (11,023 lb), carries 500 kg (1,102 lb) and rapids at 30 m/min.

03 What spindle does the CPV-850B use?

A 7/24 taper No.40 spindle at 8,000 rpm with an 11 / 15 kW (20 HP) motor. Campro describes the standard spindle as belt type with class P4 angular contact ball bearings, and says all machines come standard with a spindle oil cooler.

04 What does the tool changer of the CPV-850B hold?

24 BT-40 tools in an arm type changer, with P-40T (45°) pull studs. A tool can be Ø80 mm (Ø3.1 in), or Ø150 mm (Ø5.9 in) with adjacent pockets empty, 250 mm (9.8 in) long and 7 kg (15 lb). Change time is 2.5 sec tool to tool and 6 sec chip to chip.

05 What services does the CPV-850B need?

The power supply is listed as 20 kVA and the air source as 6~8 kg/cm² (85 ~ 113 PSI). The machine stands 2,780 mm (109 in) high and weighs 6,000 kg (13,227 lb). Campro also lists an automatic lubrication unit with pressure failure detection and an oil-coolant separation design.
