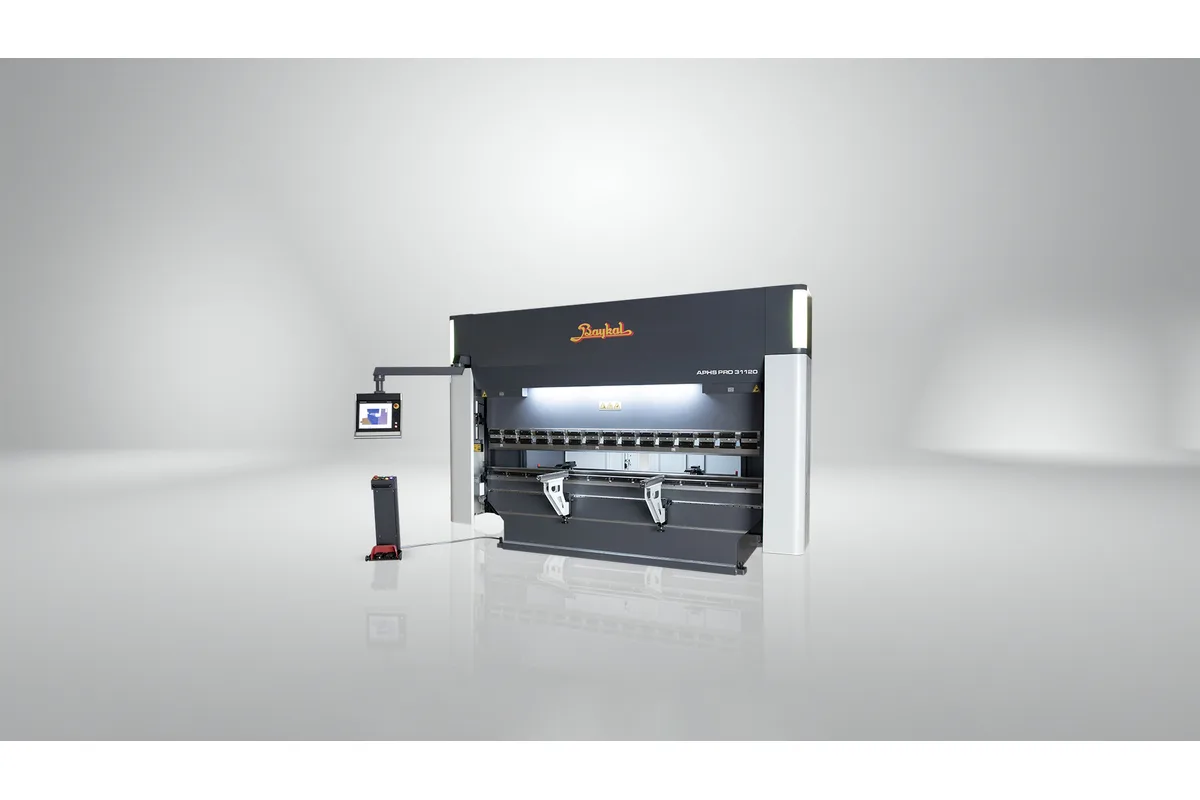

Baykal APHS PRO 6110x380
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS PRO 6110x380 cost?
Price estimate
We do not have a price for the Baykal APHS PRO 6110x380 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS PRO 6110x380 carries a force rating found nowhere else in Baykal's press brake tables: 3,800 kN. It is applied over 6,100 mm (240.2 in), and it marks the point where the six-metre range moves to the large power pack.
That power pack is a 30 kW (40.2 hp) motor on a 450 L tank. The APHS PRO 6108x300 below it runs 22 kW (29.5 hp) and 300 L. With the bigger drive comes more mass, approximately 35 Ton, and wider side frames at 2,210 mm (87 in).
Speeds settle at 90 mm/s for the approach, 8 mm/s under load and 70 mm/s for the return. Stroke is 320 mm (12.6 in), the daylight opening 570 mm (22.4 in) and the throat gap 500 mm (19.7 in). The table is 240 mm (9.4 in) wide on a 1,100 mm (43.3 in) bed.
Why would a buyer stop here and not go one size further? Mainly weight. The APHS PRO 6112x440 has identical speeds, motor, tank, stroke and daylight, and weighs 39 Ton. If the calculated force for the heaviest job is inside 3,800 kN, this machine does it with four tonnes less on the foundation.
Baykal states that the PRO series is ready for robotic applications and has front and rear safeguarding systems.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,800 kN |
| Bending Length | 6,100 mm (240.2 in) |
| Distance Between Frames | 5,100 mm (200.8 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 320 mm (12.6 in) |
| Daylight Opening | 570 mm (22.4 in) |
| Table Width | 240 mm (9.4 in) |
| Bed Height | 1,100 mm (43.3 in) |
| Side Frame Width | 2,210 mm (87 in) |
| Approach Speed | 90 mm/s |
| Working Speed | 8 mm/s |
| Return Speed | 70 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Oil Tank Volume | 450 L |
| Machine Weight | 35 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,800 kN over 6,100 mm (240.2 in)
- 30 kW (40.2 hp) motor with a 450 L tank
- 570 mm (22.4 in) daylight opening and 320 mm (12.6 in) stroke
- Approximately 35 Ton, lighter than the APHS PRO 6112x440 at 39 Ton
- 240 mm (9.4 in) table on a 1,100 mm (43.3 in) bed
Limitations
- Approach speed of 90 mm/s
- 450 L oil charge to buy, store and dispose of
- Side frame width of 2,210 mm (87 in)
- Standard backgauge and control are not stated in the data sheet
Best For
Frequently Asked Questions
01
More force and a larger drive: 3,800 kN with 30 kW (40.2 hp) and 450 L, against 3,000 kN with 22 kW (29.5 hp) and 300 L on the APHS PRO 6108x300. Approach is slower here, 90 mm/s.
02
The APHS PRO 6112x440 has 4,400 kN, a 280 mm (11 in) table and weighs 39 Ton. Motor, tank, ram speeds, stroke and daylight opening are the same as on this model. Decide on required force and on what the foundation can carry.
03
Bending length 6,100 mm (240.2 in), 5,100 mm (200.8 in) between the frames, table width 240 mm (9.4 in) and bed height 1,100 mm (43.3 in).
04
Baykal says the PRO series is ready for robotic applications. No interface or payload details are published in the data sheet, and at this bed length most handling is by crane or sheet follower.
