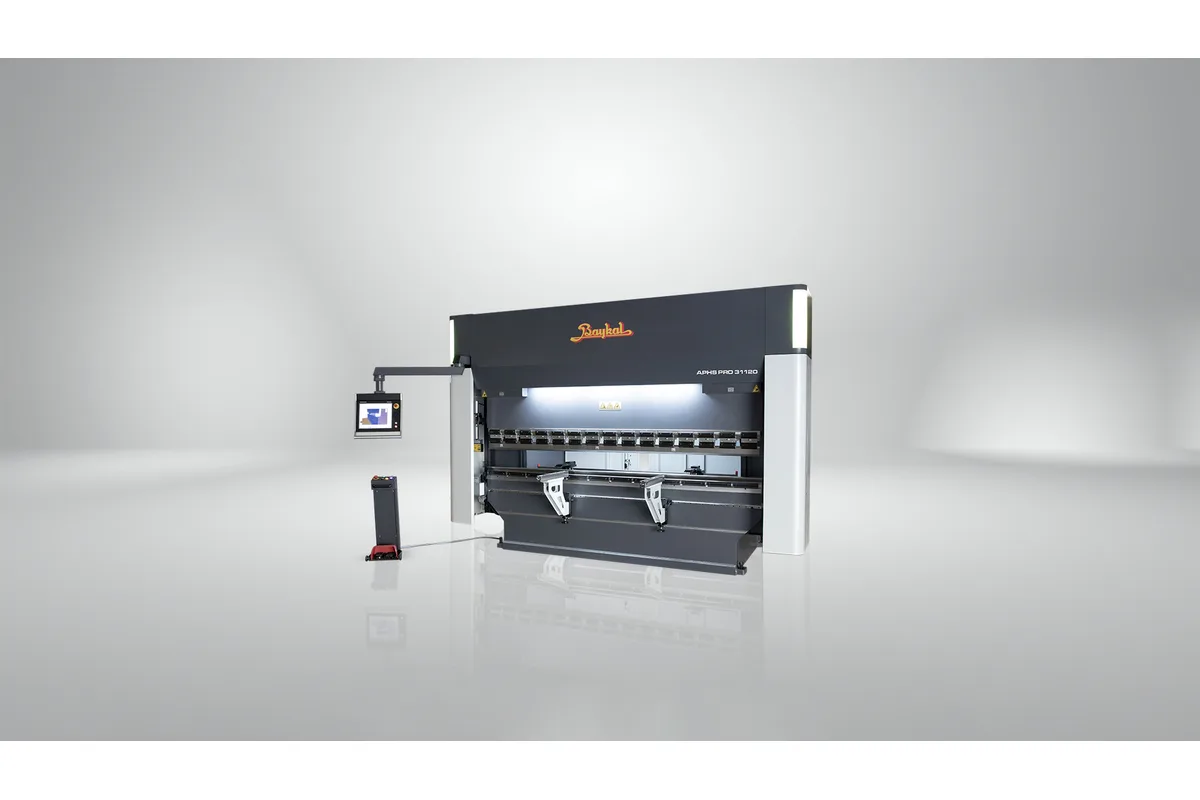

Baykal APHS PRO 6112x440
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS PRO 6112x440 cost?
Price estimate
We do not have a price for the Baykal APHS PRO 6112x440 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 4,400 kN on 6,100 mm (240.2 in), the Baykal APHS PRO 6112x440 is the third machine in Baykal's tables at this force and the longest of them. The three- and four-metre versions weigh 22 Ton and 26 Ton by the tables for the APHS 3120x440 and the APHS PRO 4116x440; this one weighs 39 Ton.
Same force, longer bed, so less force per metre. A buyer moving up from a shorter 4,400 kN machine should not expect to bend the same plate across the whole length. What the long bed adds is the ability to form six-metre parts in one piece, or to stage several tool stations along the beam.
The table is 280 mm (11 in) wide, narrower than on either shorter machine of this force, and the bed is 1,100 mm (43.3 in) high. Side frame width reaches 2,250 mm (88.6 in). Stroke, throat gap and daylight opening are 320 mm (12.6 in), 500 mm (19.7 in) and 570 mm (22.4 in).
A 30 kW (40.2 hp) motor with a 450 L tank moves the ram at 90 mm/s on approach, 8 mm/s when bending and 70 mm/s on return. Notice the approach: the APHS PRO 4116x440 is listed at 80 mm/s.
For straight bends on a beam this long, Baykal's PRO description refers to CNC motorized crowning.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 4,400 kN |
| Bending Length | 6,100 mm (240.2 in) |
| Distance Between Frames | 5,100 mm (200.8 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 320 mm (12.6 in) |
| Daylight Opening | 570 mm (22.4 in) |
| Table Width | 280 mm (11 in) |
| Bed Height | 1,100 mm (43.3 in) |
| Side Frame Width | 2,250 mm (88.6 in) |
| Approach Speed | 90 mm/s |
| Working Speed | 8 mm/s |
| Return Speed | 70 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Oil Tank Volume | 450 L |
| Machine Weight | 39 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,400 kN on a 6,100 mm (240.2 in) bed
- 90 mm/s approach, above the 80 mm/s of the APHS PRO 4116x440
- 320 mm (12.6 in) stroke and 570 mm (22.4 in) daylight opening
- 280 mm (11 in) table width
- 5,100 mm (200.8 in) between the side frames for staged tooling
Limitations
- 39 Ton demands a prepared foundation
- Table is narrower than the 380 mm (15 in) of the APHS PRO 4116x440
- Return speed of 70 mm/s and working speed of 8 mm/s
- Bed height of 1,100 mm (43.3 in)
Best For
Frequently Asked Questions
01
Approximately 39 Ton. Bed height is 1,100 mm (43.3 in) and side frame width 2,250 mm (88.6 in). Baykal does not publish the foundation drawing in the data sheet.
02
The APHS PRO 6116x600 has 6,000 kN, a 360 mm (14.2 in) stroke, a 380 mm (15 in) table, a 37 kW (49.6 hp) motor and weighs 55 Ton. This model has 4,400 kN, a 320 mm (12.6 in) stroke and a 30 kW (40.2 hp) motor.
03
90 mm/s approach, 8 mm/s working and 70 mm/s return. The APHS PRO 6110x380 has exactly the same three values, since both use one power pack.
04
Baykal's text for the PRO series speaks of an extremely stable backgauge, servo driven and CNC controlled, in multiple configurations from 2 to 6 axis. Which one is quoted as standard for this size is not in the data sheet.
