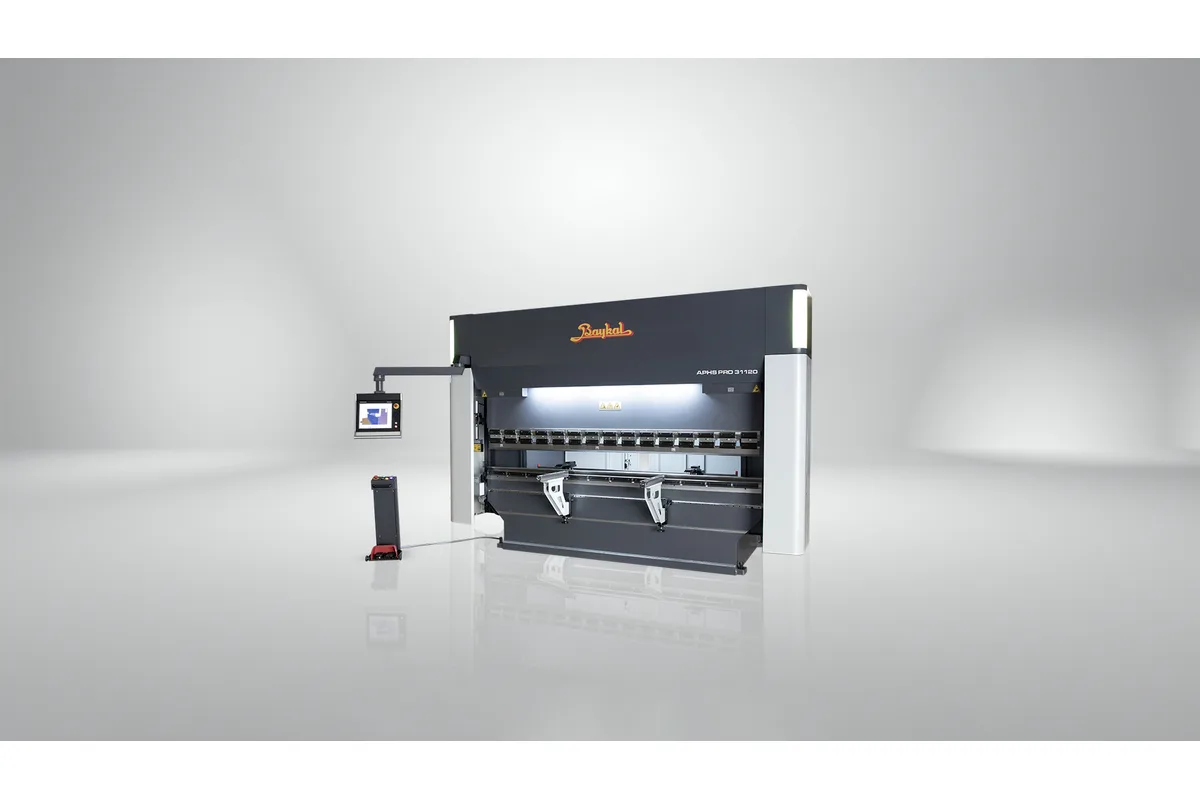

Baykal APHS PRO 6108x300
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS PRO 6108x300 cost?
Price estimate
We do not have a price for the Baykal APHS PRO 6108x300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS PRO 6108x300 applies 3,000 kN over 6,100 mm (240.2 in). Compared with the entry six-metre model it is less a stronger version than a differently proportioned one.
Stroke goes to 320 mm (12.6 in). Daylight opening becomes 560 mm (22 in), and the table more than doubles to 200 mm (7.9 in). The bed, at 1,115 mm (43.9 in), is the highest of any machine in the APHS PRO table. Weight is approximately 30 Ton.
What stays the same is the power pack, and that has consequences. The motor is still 22 kW (29.5 hp) with a 300 L tank, as on the APHS PRO 6106x240. With more force to produce, working speed drops to 8 mm/s, approach to 120 mm/s and return to 70 mm/s. That return speed is shared by every larger six-metre size.
For deep sections this is the natural six-metre choice at moderate force. The 320 mm (12.6 in) stroke gets a tall channel off the punch, and the 500 mm (19.7 in) throat gap applies wherever the part runs past the frames, which are 5,100 mm (200.8 in) apart.
Baykal promotes the PRO series on longer open height and stroke for complex bending. On this model the claim is visible in the table.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,000 kN |
| Bending Length | 6,100 mm (240.2 in) |
| Distance Between Frames | 5,100 mm (200.8 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 320 mm (12.6 in) |
| Daylight Opening | 560 mm (22 in) |
| Table Width | 200 mm (7.9 in) |
| Bed Height | 1,115 mm (43.9 in) |
| Side Frame Width | 2,060 mm (81.1 in) |
| Approach Speed | 120 mm/s |
| Working Speed | 8 mm/s |
| Return Speed | 70 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Oil Tank Volume | 300 L |
| Machine Weight | 30 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 kN across 6,100 mm (240.2 in)
- 320 mm (12.6 in) stroke with 560 mm (22 in) of daylight
- 200 mm (7.9 in) table width
- Same 22 kW (29.5 hp) motor and 300 L tank as the APHS PRO 6106x240
Limitations
- Return speed of 70 mm/s on a 320 mm (12.6 in) stroke
- Bed height of 1,115 mm (43.9 in), the highest in the table
- Works at 8 mm/s, against 10 mm/s on the APHS PRO 6106x240
- Approximately 30 Ton on the foundation
Best For
Frequently Asked Questions
01
The APHS PRO 6106x240 has 2,400 kN, a 260 mm (10.2 in) stroke, 500 mm (19.7 in) of daylight and a 90 mm (3.5 in) table. This model has 3,000 kN, a 320 mm (12.6 in) stroke, 560 mm (22 in) of daylight and a 200 mm (7.9 in) table, and it is slower.
02
Approximately 30 Ton. Side frame width is 2,060 mm (81.1 in). Transport and foundation plans for a machine of this length should be agreed with Baykal early.
03
Approach is 120 mm/s, working speed 8 mm/s and return 70 mm/s. Long parts take time to load and support anyway, so the ram speed is rarely the bottleneck at this length.
04
Baykal's description of the PRO series lists CNC motorized crowning for full-length precise bending. The technical data sheet has no crowning row, so confirm that it is part of the quoted machine.
