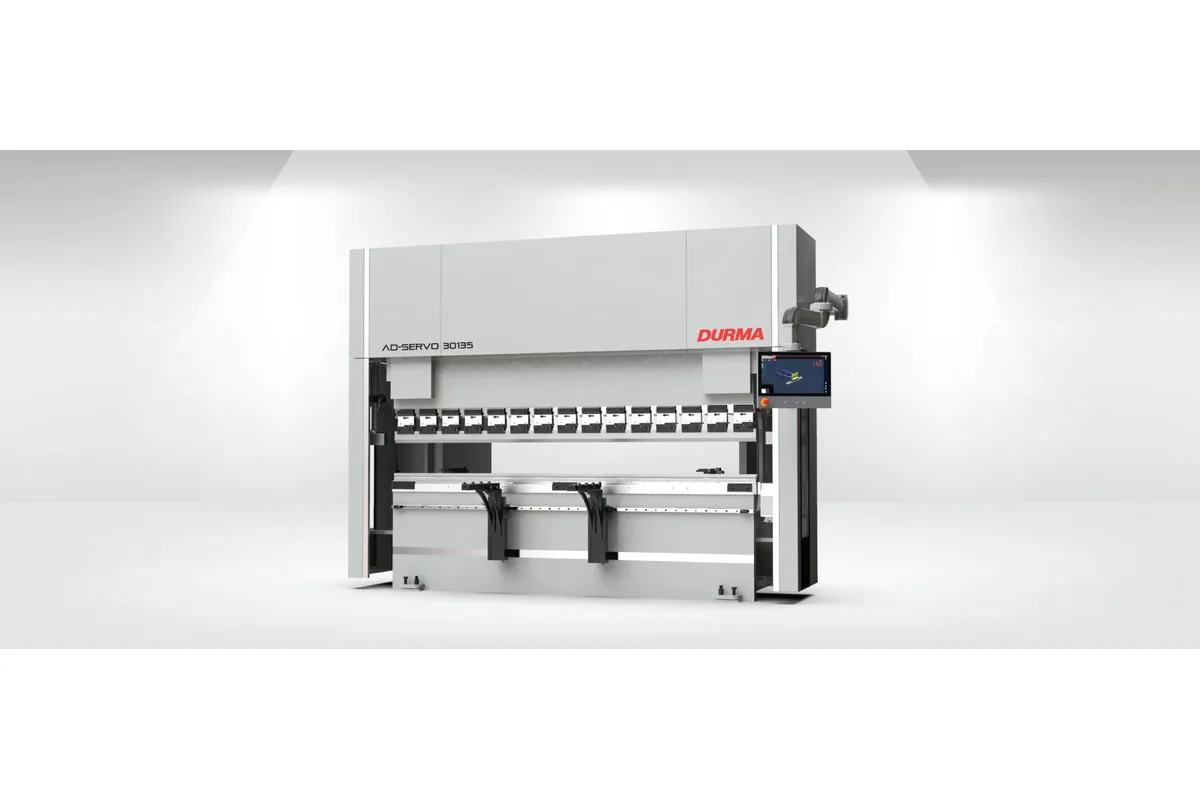

Durma AD-Servo 30135
Image: durmazlar.com.tr, Durma
Key Specifications
bending force
bending length
distance between columns
stroke
daylight
throat depth
How much does the Durma AD-Servo 30135 cost?
Price estimate
We do not have a price for the Durma AD-Servo 30135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Durma AD-Servo 30135 is the entry model of Durma's hybrid press brake series: 135 ton over 3,050 mm (120.1 in), with servomotors driving the hydraulic pumps instead of a constantly running motor. Durma lists a servomotor, a hydromotor-pump in 4-quadrant operation and a servo controller as the main components.
In practice the pumps turn only when the beam moves. The table shows what that needs at this size: motor power of 4 x 2 kW and a 75 L oil tank, small figures for a three-metre machine. Beam speeds are high all the same, 200 mm/sec in rapid and in return and 10 mm/sec in work.
The frame dimensions are those of a full-size machine. Between the columns there is 2,600 mm (102.4 in), the throat is 450 mm (17.7 in) deep, stroke is 265 mm (10.4 in) and daylight 530 mm (20.9 in). The table is 104 mm (4.1 in) wide; this is the only model in the series without a wide-table figure.
Equipment is richer than on the basic hydraulic lines. The SKY 22 control, a servo back gauge with X and R axes and CNC-controlled motorized crowning are all standard. X travel is 650 mm (25.6 in), with 1,000 mm (39.4 in) optional. Motorized Z1 and Z2, the DA-66S or DA-69S control and laser angle measurement are options. The machine weighs 9,580 kg (21,120 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 135 ton |
| Bending Length | 3,050 mm (120.1 in) |
| Distance Between Columns | 2,600 mm (102.4 in) |
| Stroke | 265 mm (10.4 in) |
| Daylight | 530 mm (20.9 in) |
| Throat Depth | 450 mm (17.7 in) |
| Table Height | 900 mm (35.4 in) |
| Table Width | 104 mm (4.1 in) |
| Y Rapid Speed | 200 mm/sec |
| Y Working Speed | 10 mm/sec |
| Y Return Speed | 200 mm/sec |
| Y Axis Precision | 0.01 mm |
| X Axis Working Speed | 500 mm/sec |
| X Axis Precision | 0.05 mm |
| X Axis Travel | 650 mm (25.6 in) standard; 1,000 mm (39.4 in) optional |
| R Axis Working Speed | 350 mm/sec |
| R Axis Travel | 250 mm (9.8 in) |
| R Axis Precision | 0.1 mm |
| Z Axis Working Speed | 1,000 mm/sec |
| Z Axis Travel | 1,990 mm (78.3 in) |
| Motor Power | 4 x 2 kW |
| Oil Tank Capacity | 75 L |
| Machine Length | 4,200 mm (165.4 in) |
| Machine Width | 1,680 mm (66.1 in) |
| Machine Height | 2,850 mm (112.2 in) |
| Machine Weight | 9,580 kg (21,120 lb) |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Servo-driven pumps: 4 x 2 kW of motor power and a 75 L oil tank for 135 ton
- 200 mm/sec rapid and return speed
- CNC-controlled motorized crowning and X-R servo back gauge are standard
- 450 mm (17.7 in) throat and 530 mm (20.9 in) daylight
- SKY 22 control as standard equipment
Limitations
- 135 ton is the lowest rating in the AD-Servo series
- Table width is 104 mm (4.1 in) with no wide-table figure listed
- Motorized Z1 and Z2 back gauge axes are optional
- Motorized height adjustment of the sheet follower is reserved for 220 tons and above
Best For
Frequently Asked Questions
01
The hydraulic pumps are driven by servomotors. Durma lists a servomotor, a hydromotor-pump for 4-quadrant operation and a servo controller as main components, and says variable-speed pump drives achieve energy savings depending on the cycle.
02
135 ton of bending force over 3,050 mm (120.1 in), 2,600 mm (102.4 in) between columns, a 265 mm (10.4 in) stroke, 530 mm (20.9 in) of daylight and a 450 mm (17.7 in) throat. Table height is 900 mm (35.4 in).
03
The SKY 22 control unit, a servo motorized back gauge with linear guide and ballscrew on X and R, a CNC-controlled motorized crowning system, European-type tool clamping and sliding front sheet support arms.
04
The AD-Servo 30175 adds force, 175 ton on the same 3,050 mm (120.1 in) bed, and weighs 10,900 kg (24,030 lb). Both have 4 x 2 kW of motor power, a 75 L tank and the same speeds. The AD-Servo 30135 weighs 9,580 kg (21,120 lb).
