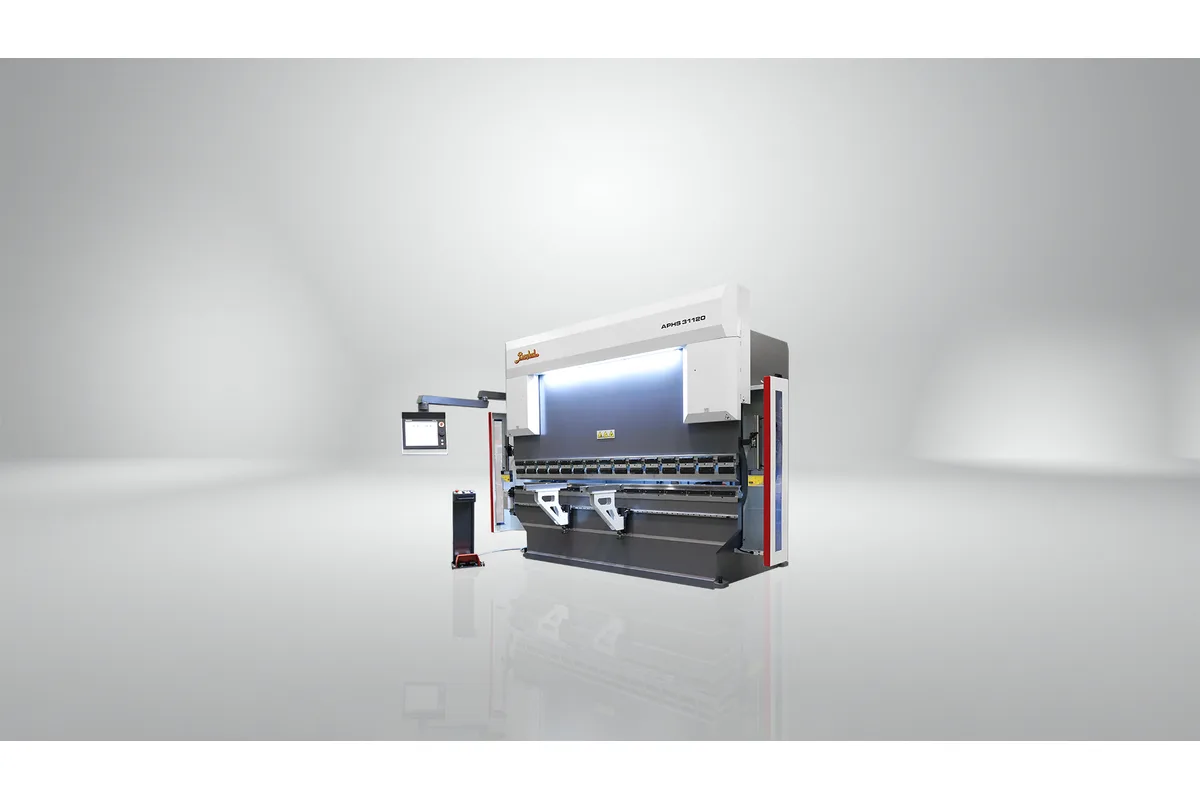

Baykal APHS 3104x90
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS 3104x90 cost?
Price estimate
We do not have a price for the Baykal APHS 3104x90 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three metres at the lowest force: the Baykal APHS 3104x90 has a bending length of 3,100 mm (122 in) and 900 kN behind it. Among the seven APHS sizes of this length it is the lightest, at 7.9 Ton, and the one with the smallest motor, 7.5 kW (10.1 hp).
Spread over the full bed, 900 kN is a thin-sheet figure. The machine makes sense where the parts are long but light: cladding, ducting, lighting trays, door skins. If short heavy parts share the schedule, the force is still there for them as long as the bend is short.
Geometry follows the light 3,100 mm frame. There is 2,550 mm (100.4 in) between the frames, a 410 mm (16.1 in) throat gap, 260 mm (10.2 in) of stroke and a 60 mm (2.4 in) table. The daylight opening is 530 mm (20.9 in), slightly less than the 540 mm (21.3 in) of the APHS 3106x120.
Speed is not reduced for the smaller drive. Approach is 160 mm/s, working speed 10 mm/s and return 130 mm/s, identical to the APHS 3108x160 with twice the motor rating. The oil tank holds 140 L, and the side frames are 1,590 mm (62.6 in) wide.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 900 kN |
| Bending Length | 3,100 mm (122 in) |
| Distance Between Frames | 2,550 mm (100.4 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 530 mm (20.9 in) |
| Table Width | 60 mm (2.4 in) |
| Bed Height | 880 mm (34.6 in) |
| Side Frame Width | 1,590 mm (62.6 in) |
| Approach Speed | 160 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 130 mm/s |
| Motor Power | 7.5 kW (10.1 hp) |
| Oil Tank Volume | 140 L |
| Machine Weight | 7.9 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,100 mm (122 in) of bending length at only 7.9 Ton
- Runs on a 7.5 kW (10.1 hp) motor, the smallest of the 3,100 mm sizes
- 160 mm/s approach and 130 mm/s return, the same as heavier models of this length
- 2,550 mm (100.4 in) between the frames
Limitations
- 900 kN across 3,100 mm (122 in) restricts full-length bends to thin sheet
- Daylight opening of 530 mm (20.9 in) is under the 540 mm (21.3 in) of the APHS 3106x120
- No backgauge or crowning data in the technical sheet
Best For
Frequently Asked Questions
01
It depends on thickness and die opening. The APHS 3104x90 applies 900 kN over 3,100 mm (122 in); the same bed is offered with 1,200 kN as the APHS 3106x120 and with 1,600 kN as the APHS 3108x160. Work out the force for your thickest full-length bend and pick from there.
02
About 7.9 Ton by Baykal's table. The side frame width is 1,590 mm (62.6 in) and the bed height 880 mm (34.6 in); overall length and height are not printed in the data sheet.
03
Same force, motor and tank. This model adds bending length, 3,100 mm (122 in) instead of 2,600 mm (102.4 in) on the APHS 2606x90, and approaches at 160 mm/s where the shorter machine is listed at 150 mm/s.
04
Stroke is 260 mm (10.2 in) and the throat gap 410 mm (16.1 in). With a daylight opening of 530 mm (20.9 in), that suits standard punches and dies; very tall gooseneck tooling should be checked.
