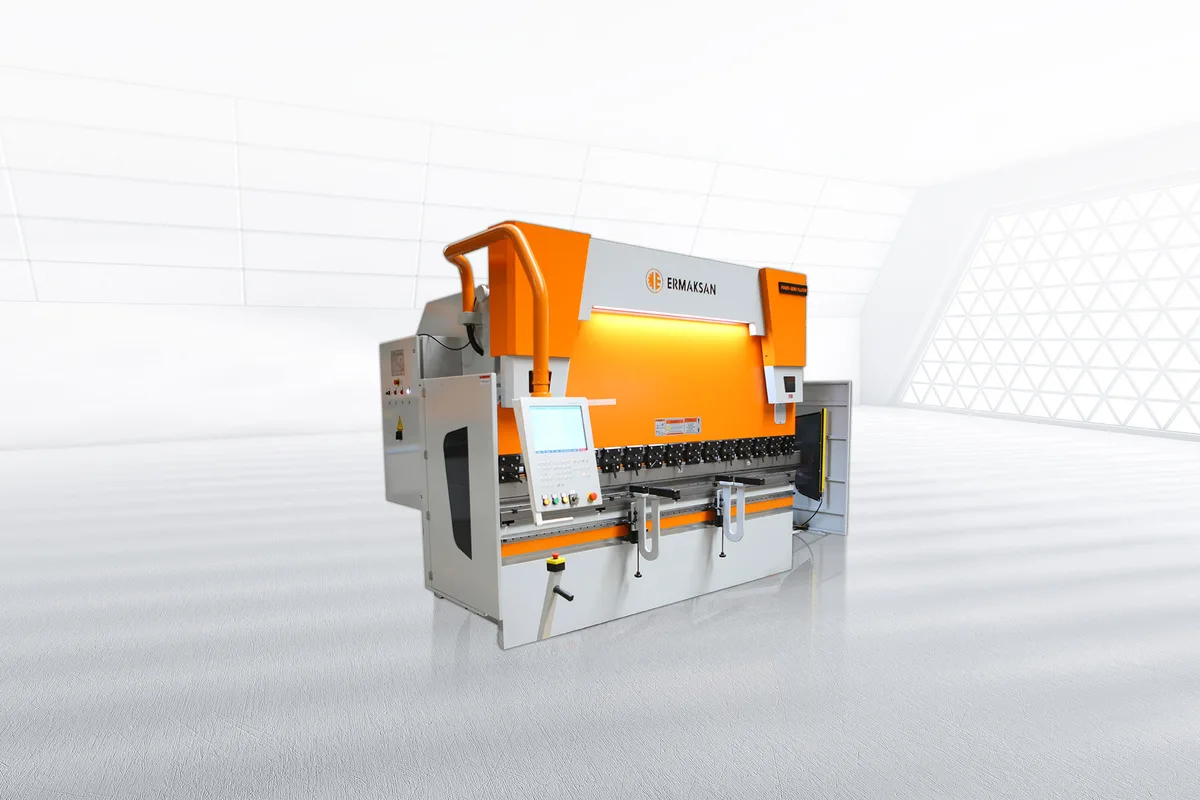

Ermak Power-Bend Falcon 2100-40
Image: ermaksan.com.tr, Ermak
Key Specifications
bending length
bending power
distance between columns
y rapid speed
y working speed
y return speed
How much does the Ermak Power-Bend Falcon 2100-40 cost?
Price estimate
We do not have a price for the Ermak Power-Bend Falcon 2100-40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Light-gauge work up to two metres is what the Ermak Power-Bend Falcon 2100-40 is sized for. It spreads 40 Ton (44 US tons) over a bending length of 2,100 mm (82.7 in), which suits thin sheet and rules out thick plate at full length.
This is the shortest Falcon for which Ermak's table lists motorized crowning. That matters more here than the tonnage suggests, because a light 2,100 mm bed deflects visibly on long, shallow bends in thin stainless or aluminium, and the CNC sets the compensation per program.
The ram unit is the small one of the series: 170 mm stroke, 387 mm daylight, 350 mm throat depth. Table height is 850 mm. A buyer who needs room for tall tools should look at the Power-Bend Falcon 2100-60, which has a 275 mm stroke and 530 mm of daylight on an equal bending length.
With 1,700 mm (66.9 in) between the columns, most of the bed is open to parts that pass through the frame. The backgauge reaches 500 mm in X.
Speed is a strong point. Rapid approach is 140 mm/s and the return 170 mm/s, with 10 mm/s for the bend itself. Power comes from a 5.5 kW motor and 80 L of oil. The machine weighs 3,885 kg and measures 3,600 mm by 2,100 mm on the floor, 2,200 mm high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 2,100 mm (82.7 in) |
| Bending Power | 40 Ton (44 US tons) |
| Distance Between Columns | 1,700 mm (66.9 in) |
| Y Rapid Speed | 140 mm/s (5.51 in/s) |
| Y Working Speed | 10 mm/s (0.39 in/s) |
| Y Return Speed | 170 mm/s (6.69 in/s) |
| Crowning | Motorized |
| X Axis Travel | 500 mm (19.7 in) |
| X Axis Speed | 500 mm/s (19.69 in/s) |
| R Axis Travel | 250 mm (9.8 in) |
| R Axis Speed | 350 mm/s (13.78 in/s) |
| Backgauge Finger Blocks | 2 |
| Sheet Supports | 2 |
| Oil Capacity | 80 L (21.1 US gal) |
| Motor Power | 5.5 kW (7.4 hp) |
| Stroke | 170 mm (6.7 in) |
| Daylight | 387 mm (15.2 in) |
| Throat Depth | 350 mm (13.8 in) |
| Table Height | 850 mm (33.5 in) |
| Table Width | 90 mm (3.5 in) |
| Length | 3,600 mm (141.7 in) |
| Height | 2,200 mm (86.6 in) |
| Width | 2,100 mm (82.7 in) |
| Machine Weight | 3,885 kg (8,565 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Motorized crowning is listed for this size, which the shortest Falcons lack
- 3,885 kg for a 2,100 mm bending length
- 170 mm/s return speed on the ram
- 1,700 mm of clear width between the columns
Limitations
- 40 Ton over 2,100 mm leaves little reserve for thicker sheet
- 387 mm daylight with a 170 mm stroke
- Throat depth is 350 mm rather than 410 mm
- Hydraulic and other crowning systems are extra-cost options
Best For
Frequently Asked Questions
01
Thin sheet up to 2,100 mm long. With 40 Ton available over that length, and a 170 mm stroke inside 387 mm of daylight, it is a machine for shallow bends in light material.
02
Ermak's table lists motorized crowning for this size, and the product page describes a CNC-controlled motorised crowning system as standard. Hydraulic crowning is offered as an option.
03
140 mm/s in rapid approach, 10 mm/s in the working stroke and 170 mm/s on the return. The backgauge moves at 500 mm/s in X and 350 mm/s in R.
04
The Power-Bend Falcon 2100-60 adds tonnage and a larger ram unit: 275 mm stroke, 530 mm daylight and a 410 mm throat, with a 7.5 kW motor, at a weight of 5,085 kg against 3,885 kg for this model.
