Baykal APHS 3116x300

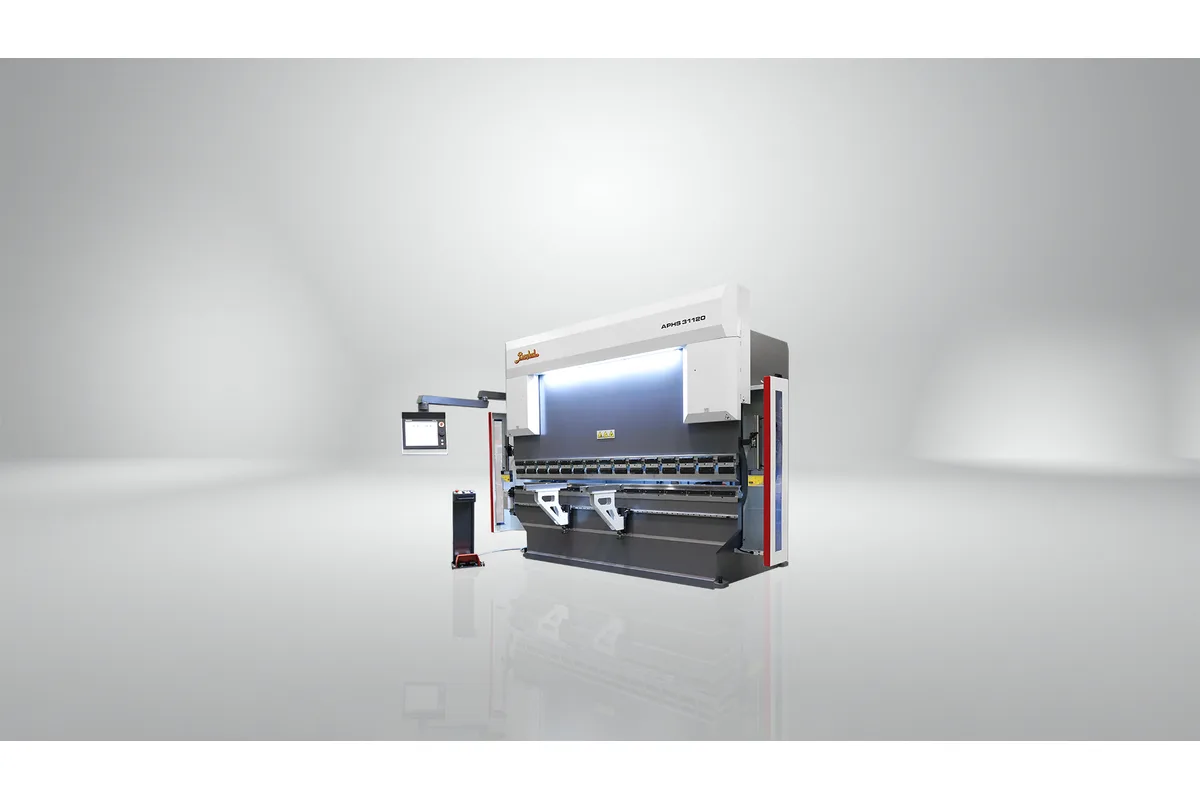

Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS 3116x300 cost?
Price estimate
We do not have a price for the Baykal APHS 3116x300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A different frame begins with the Baykal APHS 3116x300. Force is 3,000 kN over 3,100 mm (122 in), and the throat gap opens to 500 mm (19.7 in), the stroke to 320 mm (12.6 in) and the daylight opening to 660 mm (26 in). No other APHS has that much open height.
The table tells the same story. It is 380 mm (15 in) wide, where the APHS 3112x240 has 90 mm (3.5 in), and it stands 905 mm (35.6 in) from the floor. A table that broad takes large die blocks and multi-V dies directly, which is what plate work at this force calls for. Side frame width grows to 1,815 mm (71.5 in) and weight to about 15 Ton.
Speed is traded for force. The motor is the 22 kW (29.5 hp) unit already used one size down, now moving larger cylinders: approach 110 mm/s, working 8 mm/s, return 100 mm/s. The tank holds 280 L.
Who needs it? Anyone forming deep boxes, tall channels or heavy plate on three-metre stock. The 660 mm (26 in) opening leaves room to withdraw a deep four-sided part, and the 500 mm (19.7 in) throat lets a wide blank reach further past the frames. Baykal's own summary of the APHS says up to 300 tons, and this size is where the three-metre table reaches that class.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,000 kN |
| Bending Length | 3,100 mm (122 in) |
| Distance Between Frames | 2,550 mm (100.4 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 320 mm (12.6 in) |
| Daylight Opening | 660 mm (26 in) |
| Table Width | 380 mm (15 in) |
| Bed Height | 905 mm (35.6 in) |
| Side Frame Width | 1,815 mm (71.5 in) |
| Approach Speed | 110 mm/s |
| Working Speed | 8 mm/s |
| Return Speed | 100 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Oil Tank Volume | 280 L |
| Machine Weight | 15 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 660 mm (26 in) daylight opening, the largest in the APHS table
- 320 mm (12.6 in) stroke and a 500 mm (19.7 in) throat gap
- 380 mm (15 in) table for large dies
- 3,000 kN from a 22 kW (29.5 hp) motor
Limitations
- Working speed falls to 8 mm/s and approach to 110 mm/s
- About 15 Ton, against roughly 11 Ton for the APHS 3112x240
- Tank volume of 280 L, up from 210 L on the APHS 3112x240
- Side frame width of 1,815 mm (71.5 in) takes more floor depth
Best For
Frequently Asked Questions
01
It is built on a larger frame, with a 500 mm (19.7 in) throat, a 320 mm (12.6 in) stroke and a 380 mm (15 in) table. The APHS 3112x240 has a 410 mm (16.1 in) throat and a 260 mm (10.2 in) stroke and weighs about 11 Ton; this machine weighs about 15 Ton.
02
Daylight opening is 660 mm (26 in) with a 320 mm (12.6 in) stroke. That is the most of any APHS size, including the stronger APHS 3120x440, which is listed with 575 mm (22.6 in).
03
Working speed is 8 mm/s. Approach is 110 mm/s and return 100 mm/s. Expect longer cycles than on the light-frame models, particularly on parts with many bends.
04
905 mm (35.6 in), slightly above the 880 mm (34.6 in) of the APHS 3112x240. With a tall die block on the 380 mm (15 in) table the working line rises further, so plan operator platforms accordingly.
