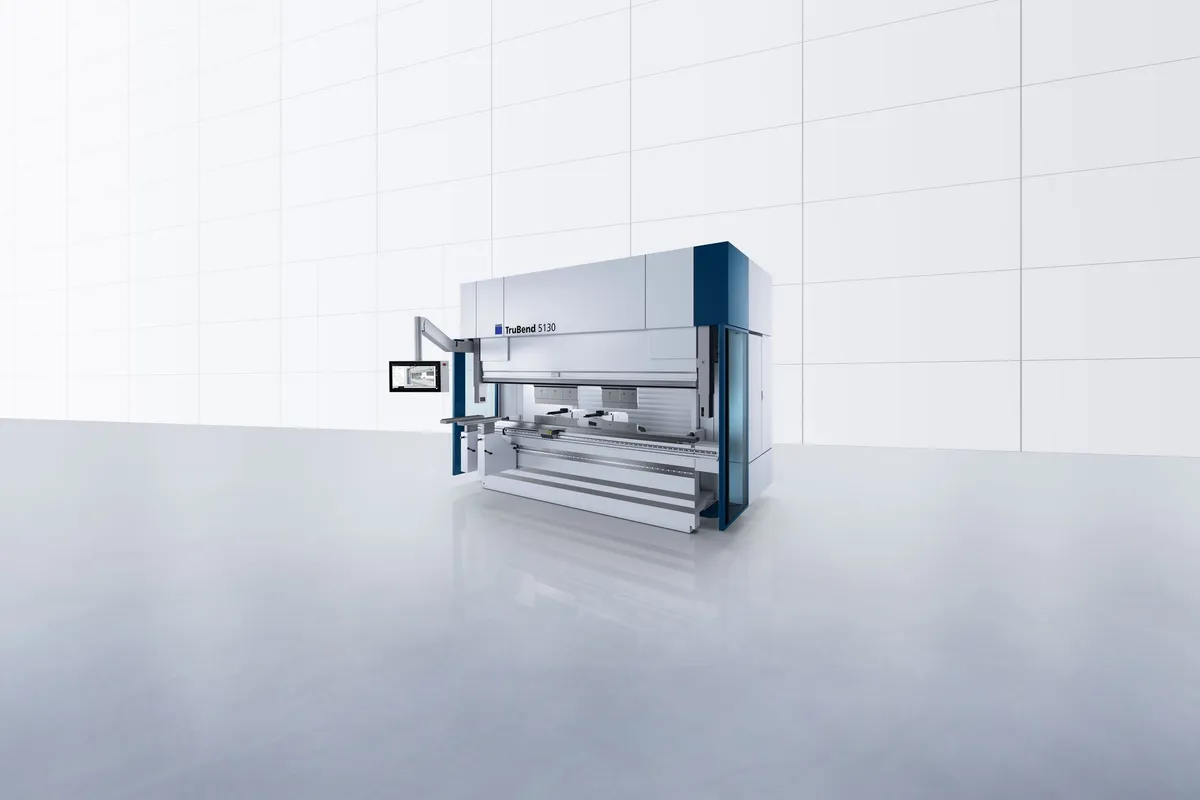

Trumpf TruBend Series 5000
Image: trumpf.com, Trumpf
Key Specifications
models
bending length range
usable open height
throat depth
max bending speed
back gauge
How much does the Trumpf TruBend Series 5000 cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.
Overview
The TruBend Series 5000 is a Trumpf press brake range with bending lengths from 2,210 to 4,420 mm (87.0 - 174.0 in), listed in the models 5085, 5085(S), 5130, 5170, 5170(S), 5230, 5230(S) and 5320. Every size shares a 420 mm throat, a 6-axis CNC back gauge, CNC-controlled crowning and the Touchpoint TruBend user interface.
The single-value rows in Trumpf's table describe the smallest machine: 850 kN of press force on a 2210 mm bending length, 1750 mm between the columns, and a machine 3020 mm long, 1800 mm wide and 2840 mm high that weighs 8300 kg. From there the range grows to 23,400 kg (51,588 lb), with machine lengths of 3,020 - 5,180 mm (118.9 - 203.9 in), widths of 1,800 - 2,055 mm (70.9 - 80.9 in) and heights of 2,840 - 3,200 mm (111.8 - 126.0 in).
One choice cuts across the sizes. Usable open height is 385 mm as standard and 615 mm for the extended version. The taller opening is what makes deep boxes and tall tooling workable, so ask which version a quoted machine is before comparing offers. The Y axis works at up to 25 mm/s (1.0 in/s) on every size.
Two members of the range show how the frames scale. The TruBend 5130 and the TruBend 5170 both have a 3,230 mm (127 in) bending length, but the TruBend 5130 weighs 11,800 kg (26,015 lb) and the TruBend 5170 weighs 14,150 kg (31,195 lb). Same bed, heavier structure, which is how a range adds force without adding length.
Full Specifications
| Parameter | Value |
|---|---|
| Models | 5085, 5085(S), 5130, 5170, 5170(S), 5230, 5230(S), 5320 |
| Bending Length Range | 2,210 - 4,420 mm (87.0 - 174.0 in) |
| Usable Open Height | 385 mm |
| Throat Depth | 420 mm |
| Max Bending Speed | 25 mm/s (1.0 in/s) |
| Back Gauge | 6-axis CNC |
| Crowning | CNC-controlled |
| Machine Weight Range | 8,300 - 23,400 kg (18,298 - 51,588 lb) |
| Machine Length Range | 3,020 - 5,180 mm (118.9 - 203.9 in) |
| Machine Width Range | 1,800 - 2,055 mm (70.9 - 80.9 in) |
| Machine Height Range | 2,840 - 3,200 mm (111.8 - 126.0 in) |
| Press Force | 850 kN |
| Bending Length | 2210 mm |
| Width Between Columns | 1750 mm |
| Usable Open Height for Extended Version | 615 mm |
| User Interface | Touchpoint TruBend |
| Maximum Speed Y Axis Operation | 25 mm/s |
| Length | 3020 mm |
| Width | 1800 mm |
| Height | 2840 mm |
| Machine Weight | 8300 kg |
Specifications sourced from trumpf.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Eight listed models covering bending lengths of 2,210 - 4,420 mm (87.0 - 174.0 in)
- 6-axis CNC back gauge and CNC-controlled crowning across the range
- Extended version raises usable open height from 385 mm to 615 mm
- Throat depth of 420 mm on every size
- Touchpoint TruBend user interface, with a Y-axis speed of up to 25 mm/s (1.0 in/s)
Limitations
- Standard usable open height is 385 mm; the 615 mm opening belongs to the extended version
- Press force is stated for one size only, 850 kN at 2210 mm, so the larger models need their own figures
- The largest machines reach 23,400 kg (51,588 lb) and 5,180 mm (203.9 in) in length
- Maximum bending length is 4,420 mm (174.0 in); longer work is outside this range
Best For
Frequently Asked Questions
01
Trumpf lists 5085, 5085(S), 5130, 5170, 5170(S), 5230, 5230(S) and 5320. Bending lengths across them run from 2,210 to 4,420 mm (87.0 - 174.0 in) and machine weights from 8,300 to 23,400 kg (18,298 - 51,588 lb).
02
Usable open height is 385 mm on the standard machine and 615 mm on the extended version. The throat depth is 420 mm in both cases. If your parts have high side flanges or you run tall tools, the extended version is the one to specify.
03
The table gives 850 kN alongside a 2210 mm bending length and 1750 mm between the columns, which are the figures of the smallest machine. Forces for the longer and heavier models are not broken out in this table and should be requested per model.
04
A 6-axis CNC back gauge, CNC-controlled crowning and the Touchpoint TruBend user interface are listed for the series. The maximum speed of the Y axis in operation is 25 mm/s (1.0 in/s).
05
Both have a 3,230 mm (127 in) bending length and the Touchpoint TruBend control. The TruBend 5130 weighs 11,800 kg (26,015 lb) and the TruBend 5170 weighs 14,150 kg (31,195 lb), about 20% more on the same bed length.
