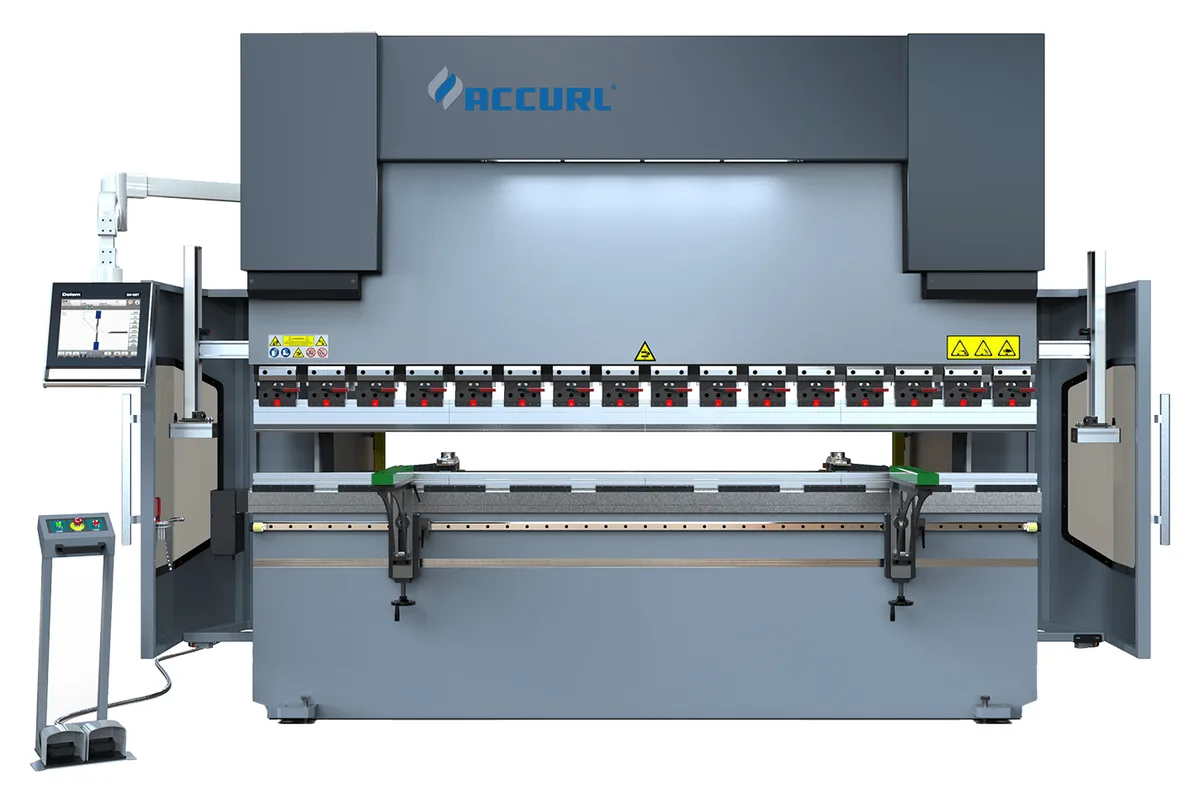

Accurl EURO-PRO B 60500
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 60500 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 60500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 60500 belongs to the heavy end of the catalogue. It delivers 5,000 kN on a bending length of 6,000 mm (236.2 in) and weighs 55,000 kg (121,252 lb).
The jump from the model below is larger than the force suggests. The EURO-PRO B 60400 weighs 38,000 kg (83,774 lb). This model is far heavier, and it brings a table 300 mm (11.8 in) wide and a daylight opening of 610 mm (24 in).
It is also one of only two models in the series with a longer backgauge stroke, 1,000 mm (39.4 in). On plate parts with long legs that is a practical gain, because the part can be gauged from behind instead of being marked out.
A 37 kW (49.6 hp) motor is fitted. The ram approaches at 100 mm/s and bends at 8 mm/s. Its return speed, 75 mm/s, is the lowest in the table.
The footprint is 6,500 mm (255.9 in) by 2,700 mm (106.3 in). This page carries no height for the model, so the building clearance has to be taken from Accurl's drawing. The stroke is 320 mm (12.6 in), the gap 450 mm (17.7 in) and the table height 990 mm (39 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 5,000 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Distance Between Side Frames | 5,050 mm (198.8 in) |
| Gap | 450 mm (17.7 in) |
| Daylight Opening | 610 mm (24 in) |
| Stroke | 320 mm (12.6 in) |
| Table Height | 990 mm (39 in) |
| Table Width | 300 mm (11.8 in) |
| Approach Speed | 100 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 75 mm/s |
| Motor Power | 37 kW (49.6 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 6,500 mm (255.9 in) |
| Machine Width | 2,700 mm (106.3 in) |
| Machine Weight | 55,000 kg (121,252 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 5,000 kN over 6,000 mm (236.2 in)
- 610 mm (24 in) daylight with a 320 mm (12.6 in) stroke
- Backgauge stroke of 1,000 mm (39.4 in)
- Table 300 mm (11.8 in) wide for large dies
- 37 kW (49.6 hp) motor with a stand-by function
Limitations
- Return speed of 75 mm/s, the lowest of the series
- 55,000 kg (121,252 lb) of machine to transport and found
- No machine height is given here; it must be requested
- Footprint of 6,500 mm (255.9 in) by 2,700 mm (106.3 in)
Best For
Frequently Asked Questions
01
55,000 kg (121,252 lb) by the specification table. It is 6,500 mm (255.9 in) long and 2,700 mm (106.3 in) wide. A height is not given on this page.
02
Daylight is 610 mm (24 in) and the stroke 320 mm (12.6 in). The table is 300 mm (11.8 in) wide and 990 mm (39 in) high, and the gap in the frames is 450 mm (17.7 in).
03
1,000 mm (39.4 in). The EURO-PRO B 60400 is listed with 750 mm (29.5 in). The standard backgauge type for the series is a BGA-2 on the X and R axes.
04
Fast approach is 100 mm/s, maximum bending speed 8 mm/s and return 75 mm/s, driven by a 37 kW (49.6 hp) motor. On a machine of this size the handling of the plate sets the cycle, not the ram.
