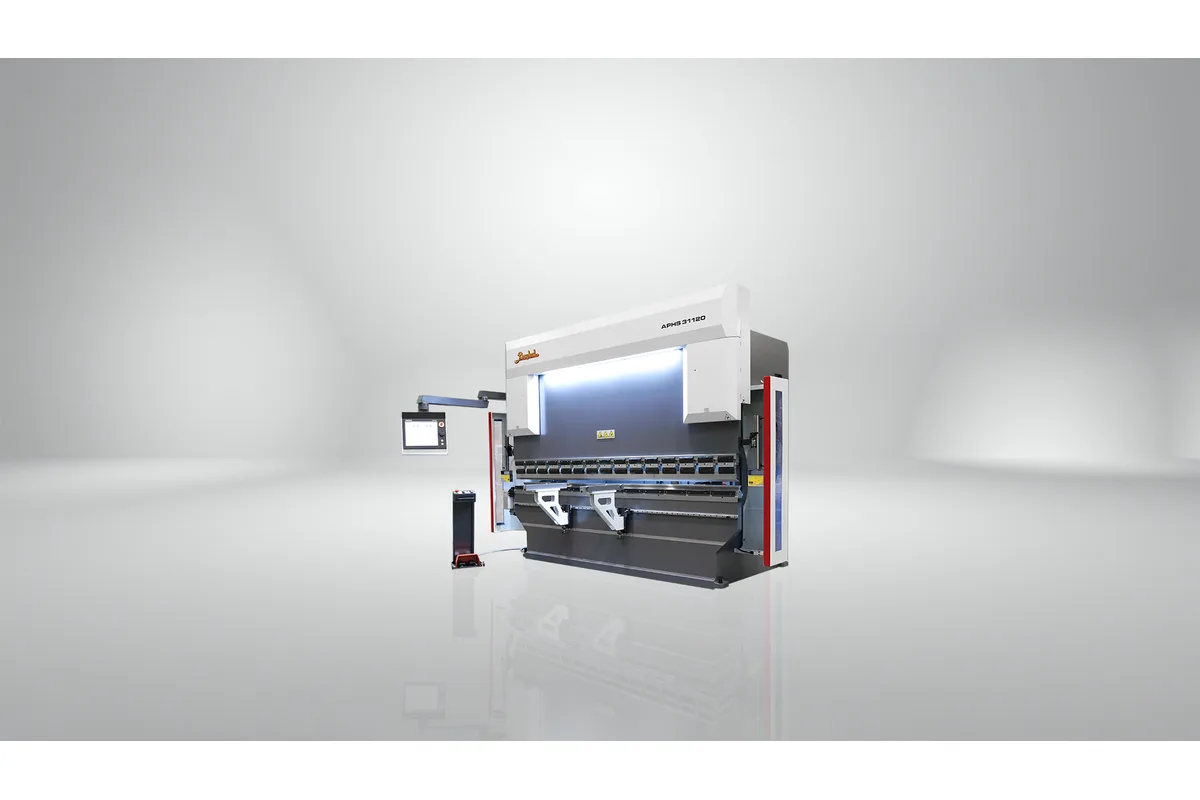

Baykal APHS 3108x160
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS 3108x160 cost?
Price estimate
We do not have a price for the Baykal APHS 3108x160 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 1,600 kN over 3,100 mm (122 in), the Baykal APHS 3108x160 is the strongest APHS that still runs at the top light-frame speeds: 160 mm/s approach, 10 mm/s working, 130 mm/s return. One size up, approach speed starts to fall.
The drive is where the change shows. A 15 kW (20.1 hp) motor replaces the 11 kW (14.8 hp) unit of the APHS 3106x120, and the tank goes from 140 L to 210 L. Weight is 9.7 Ton.
Nothing else has been altered to carry the extra load. The table is still 60 mm (2.4 in) wide; Baykal widens it only on the APHS 3110x200, to 90 mm (3.5 in). Daylight opening is 540 mm (21.3 in), stroke 260 mm (10.2 in), throat gap 410 mm (16.1 in). Side frame width is 1,600 mm (63 in) and the bed height 880 mm (34.6 in).
Baykal offers the same force on a longer bed: the APHS 4106x160 weighs 12 Ton and returns at 120 mm/s. If 3,100 mm (122 in) is long enough, the shorter model is the quicker and lighter choice, and its force is concentrated on less bed, which helps when thick material is bent over most of the length.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,600 kN |
| Bending Length | 3,100 mm (122 in) |
| Distance Between Frames | 2,550 mm (100.4 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 540 mm (21.3 in) |
| Table Width | 60 mm (2.4 in) |
| Bed Height | 880 mm (34.6 in) |
| Side Frame Width | 1,600 mm (63 in) |
| Approach Speed | 160 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 130 mm/s |
| Motor Power | 15 kW (20.1 hp) |
| Oil Tank Volume | 210 L |
| Machine Weight | 9.7 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,600 kN with the full 160 mm/s approach and 130 mm/s return
- 540 mm (21.3 in) of daylight opening
- 9.7 Ton, against 12 Ton for the APHS 4106x160 of equal force
- Bed height of 880 mm (34.6 in), unchanged from the lighter sizes
Limitations
- Oil tank volume rises to 210 L
- Table width remains 60 mm (2.4 in) at this force
- Throat gap of 410 mm (16.1 in); the 500 mm (19.7 in) throat begins with the APHS 3116x300
Best For
Frequently Asked Questions
01
No. Its speeds are 160 mm/s approach, 10 mm/s working and 130 mm/s return, the same as the APHS 3104x90. The first drop comes with the APHS 3110x200, listed at 150 mm/s approach.
02
Motor output is 15 kW (20.1 hp) and the tank holds 210 L. Both are a step above the APHS 3106x120, which has 11 kW (14.8 hp) and 140 L.
03
They share 1,600 kN, a 15 kW (20.1 hp) motor and 210 L of oil. The APHS 4106x160 bends 4,100 mm (161.4 in) and has 530 mm (20.9 in) of daylight. Choose by the longest part you bend; force per unit of length is higher on the shorter bed.
04
60 mm (2.4 in). Bed height is 880 mm (34.6 in). If wide multi-V dies or a heavy die rail are planned, ask Baykal what the 60 mm table accepts.
