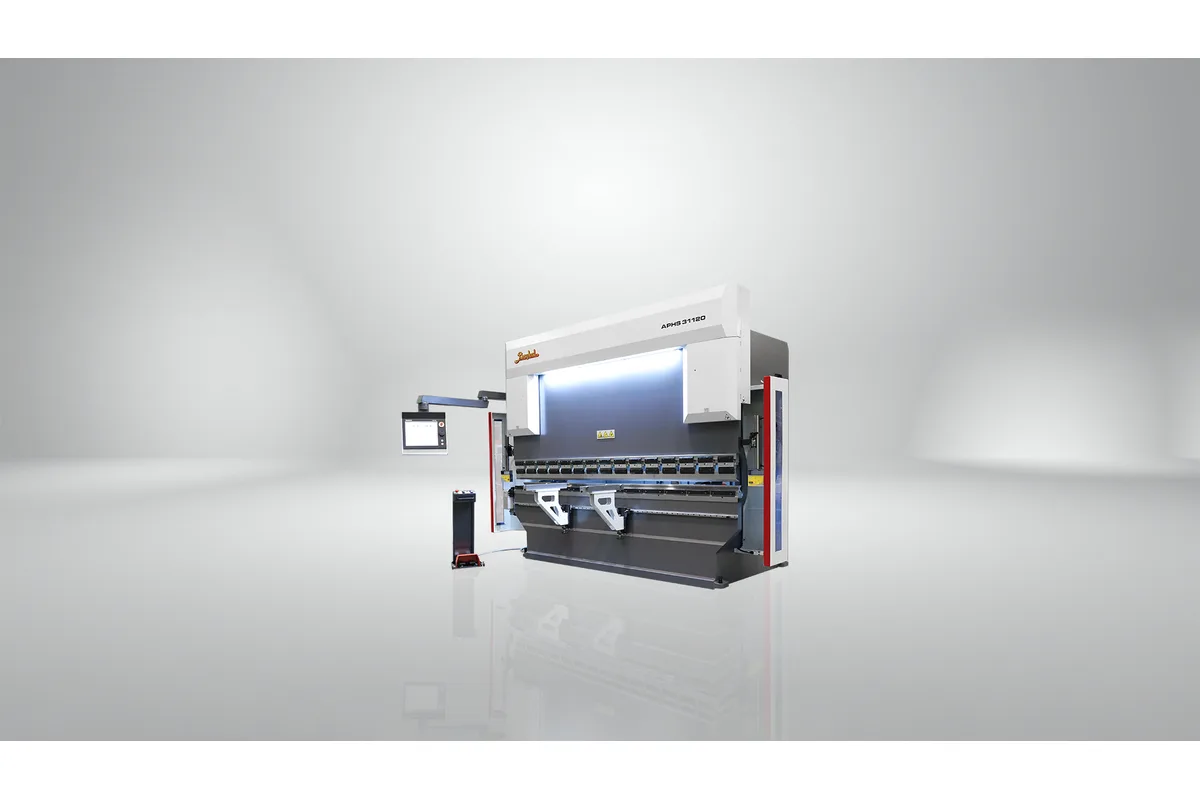

Baykal APHS 3106x120
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS 3106x120 cost?
Price estimate
We do not have a price for the Baykal APHS 3106x120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS 3106x120 raises the force on Baykal's 3,100 mm (122 in) bed to 1,200 kN while keeping the small 140 L oil tank. The motor grows to 11 kW (14.8 hp) and the weight to 8.4 Ton.
Think of it as the middle of three machines that share one frame. Below it, the APHS 3104x90 has 900 kN. Above it, the APHS 3108x160 has 1,600 kN and needs a 210 L tank. Bending length, the 2,550 mm (100.4 in) between the frames, the 410 mm (16.1 in) throat, the 260 mm (10.2 in) stroke, the 60 mm (2.4 in) table and all three ram speeds are the same on each. Only force, motor, oil and weight move.
That makes the buying question simple. A shop whose heaviest regular job needs more than the APHS 3104x90 can give, but which rarely fills the bed with thick plate, gets a third more force for a small rise in connected power.
Daylight opening is 540 mm (21.3 in). The ram approaches at 160 mm/s, works at 10 mm/s and returns at 130 mm/s, and the bed height is 880 mm (34.6 in). Side frame width is 1,590 mm (62.6 in), so the footprint does not grow either.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,200 kN |
| Bending Length | 3,100 mm (122 in) |
| Distance Between Frames | 2,550 mm (100.4 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 540 mm (21.3 in) |
| Table Width | 60 mm (2.4 in) |
| Bed Height | 880 mm (34.6 in) |
| Side Frame Width | 1,590 mm (62.6 in) |
| Approach Speed | 160 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 130 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Oil Tank Volume | 140 L |
| Machine Weight | 8.4 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,200 kN on a 3,100 mm (122 in) bed with only 140 L of oil
- 540 mm (21.3 in) daylight opening, against 530 mm (20.9 in) on the lighter APHS 3104x90
- No speed penalty against the APHS 3104x90: 160 mm/s approach, 10 mm/s working
- 11 kW (14.8 hp) motor keeps the electrical connection moderate
Limitations
- 60 mm (2.4 in) table width; the 90 mm (3.5 in) table starts at the APHS 3110x200
- Throat gap stays at 410 mm (16.1 in)
- Control and backgauge are not specified in the data sheet
Best For
Frequently Asked Questions
01
Force and drive. The APHS 3104x90 gives 900 kN from a 7.5 kW (10.1 hp) motor; this model gives 1,200 kN from 11 kW (14.8 hp). The frames, stroke, throat, tank volume and ram speeds do not change.
02
No. The tank is 140 L, as on the sizes below it. The step to 210 L comes with the APHS 3108x160, together with a 15 kW (20.1 hp) motor.
03
Daylight opening is 540 mm (21.3 in) and stroke 260 mm (10.2 in). The bed height is 880 mm (34.6 in), which is the working height before the die holder and die are added.
04
2,550 mm (100.4 in). A part narrower than that can be pushed back as far as the gauge allows. Wider parts sit in front of the frames and are held to the 410 mm (16.1 in) throat gap.
