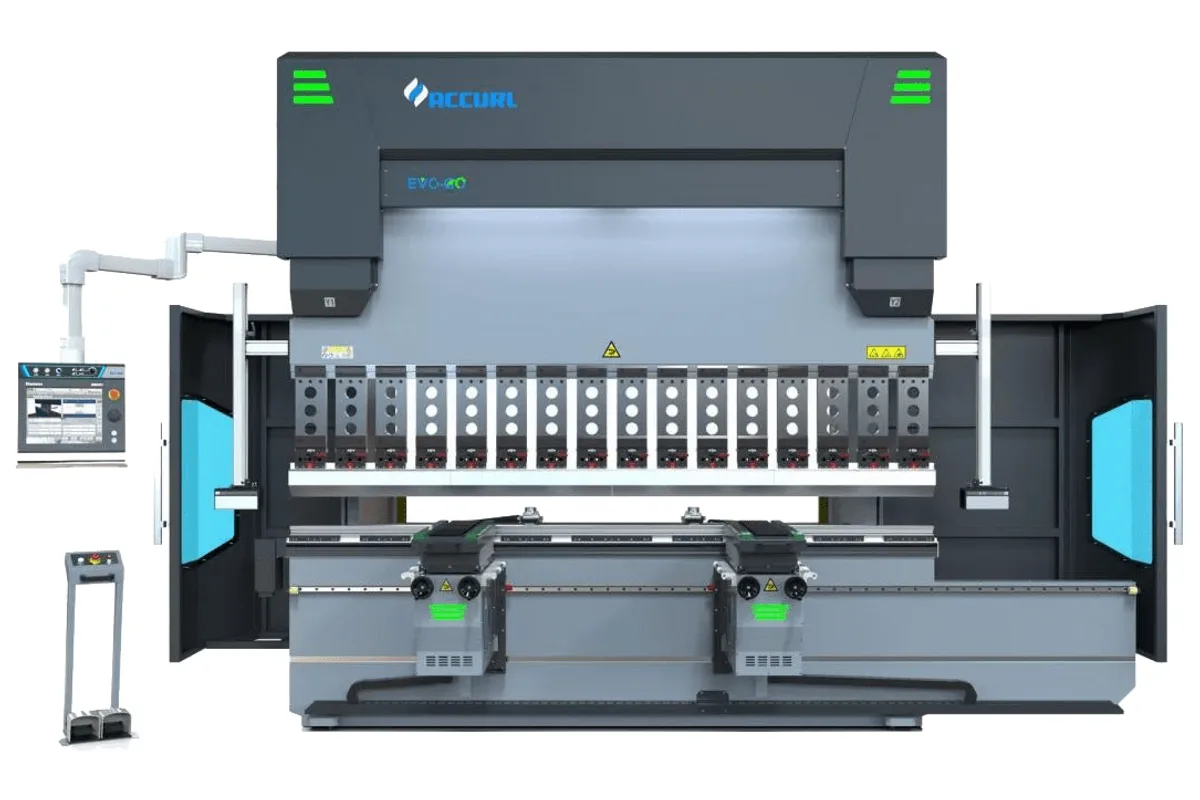

Accurl EURO GENIUS B40320H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40320H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40320H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B40320H is the heavy four-metre machine most fabricators will arrive at before considering the top model: 3,200 kN over 4,000 mm (157.5 in), driven by a 30 kW (40.2 hp) motor.
Its opening matches the largest in the series, with 630 mm (24.8 in) of daylight and a 350 mm (13.8 in) stroke, and the backgauge travels 1,000 mm (39.4 in). Throat depth is 450 mm (17.7 in).
Speed drops another notch at this size. Approach is 130 mm/s, down from 150 mm/s on the three-metre EURO GENIUS B32320H, while return holds at 110 mm/s. Bending speed is 0-10 mm/s.
Compare it with its two neighbours on the four-metre bed. The EURO GENIUS B40250H is lighter at 19,300 kg (42,549 lb) and approaches faster. The EURO GENIUS B40400H is stronger and has a deeper throat but weighs 28,500 kg (62,831 lb). This model, at 21,800 kg (48,060 lb), sits much closer to the lighter of the two in mass while delivering 3,200 kN.
Dimensions are 4,960 mm (195.3 in) by 2,020 mm (79.5 in) by 3,390 mm (133.5 in) high. Accurl's standard list for the series covers the DA-66T control, CNC motorized wave crowning and front and rear lighting.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 630 mm (24.8 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 130 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 110 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 4,960 mm (195.3 in) |
| Machine Width | 2,020 mm (79.5 in) |
| Machine Height | 3,390 mm (133.5 in) |
| Machine Weight | 21,800 kg (48,060 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 kN over 4,000 mm (157.5 in)
- 21,800 kg (48,060 lb), far lighter than the EURO GENIUS B40400H
- 630 mm (24.8 in) daylight with a 350 mm (13.8 in) stroke
- Backgauge stroke of 1,000 mm (39.4 in)
Limitations
- Approach speed of 130 mm/s
- Returns at 110 mm/s, the same as the lighter EURO GENIUS B40250H
- 30 kW (40.2 hp) motor needs a matching supply
- Throat depth of 450 mm (17.7 in), not the 500 mm (19.7 in) of the EURO GENIUS B40400H
Best For
Frequently Asked Questions
01
The EURO GENIUS B40400H has 4,000 kN, a 500 mm (19.7 in) throat depth and a 37 kW (49.6 hp) motor, and weighs 28,500 kg (62,831 lb). This model has 3,200 kN, 450 mm (17.7 in) and 30 kW (40.2 hp) at 21,800 kg (48,060 lb).
02
130 mm/s fast approach, 0-10 mm/s bending and 110 mm/s return. The six-metre EURO GENIUS B60320H shares the approach figure and returns at 100 mm/s.
03
4,960 mm (195.3 in) in length, 2,020 mm (79.5 in) in width and 3,390 mm (133.5 in) in height. Allow extra depth for the backgauge and its rear safety barriers.
04
Delem Profile-TL offline software is on the standard equipment list, together with the DELEM DA-66T control. Accurl describes the series control as 3D capable for simulating bending sequences and collision points.
