Trumpf TruBend Cell 7000

Est. $350,000 - $550,000 (new, configuration dependent) Specs verified 2026-10-03 · trumpf.com Updated 2026-10-03

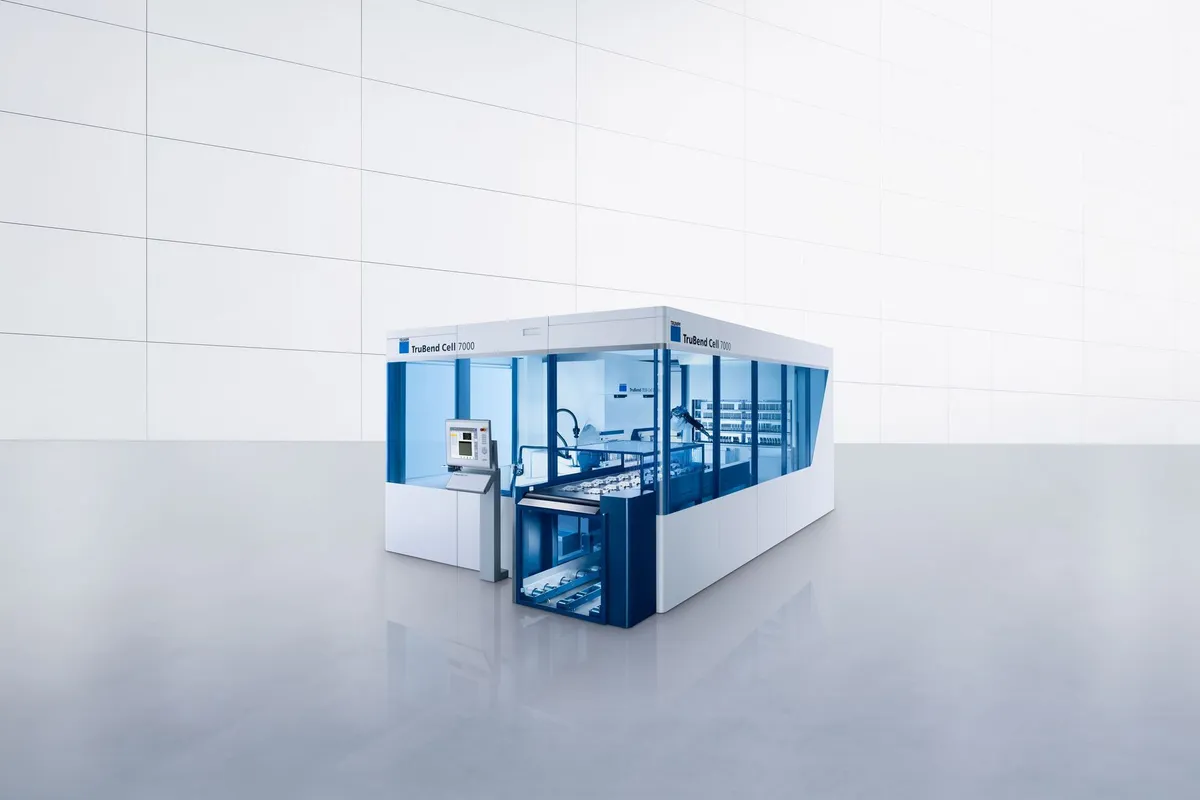

Image: trumpf.com, Trumpf

Key Specifications

press force

217 kN

bending length

2x500 mm

width between columns

1530 mm

usable open height

300 mm

throat depth

515 mm

working speed

up to 50 mm/s

How much does the Trumpf TruBend Cell 7000 cost?

Estimated price range

Est.$350,000 - $550,000 (new, configuration dependent)

Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.

Overview

The TruBend Cell 7000 is Trumpf's automated bending cell for small parts: a 217 kN press brake with a bending length listed as 2x500 mm, served by a BendMaster handling unit with a 15 kg carrying capacity. Everything about it is sized for small work. The largest part it takes is 500 x 380 mm (19.7 x 15.0 in) and the heaviest is 1.5 kg (3.3 lb).

Those part limits, more than the press, decide what the cell can run. Sheet thickness ranges from 0.5 mm (0.020 in) to 6 mm (0.236 in), and on a bend no longer than 500 mm a 217 kN press has force in hand for the thicker end of that range. The tonnage a bend needs still depends on the die opening and the material, so check the heaviest job against the press force instead of assuming 6 mm at full length.

The press brake has 1530 mm between the columns, a 515 mm throat and 300 mm of usable open height, and it bends at a working speed of up to 50 mm/s. The open height is the figure to watch, because it has to hold the upper tool, the die and the part's return flange at once. Trumpf lists ACB against angle precision, under the line "First part, perfect part".

For the floor plan, the cell measures 5,500 x 3,870 x 2,630 mm (216.5 x 152.4 x 103.5 in). The basic machine weighs 4,200 kg (9,259 lb) and the BendMaster 114 kg. Shops with larger work should look at the TruBend Cell 5000, whose table starts at a bending length of 3230 mm.

Full Specifications

Parameter	Value
Press Force	217 kN
Bending Length	2x500 mm
Width Between Columns	1530 mm
Usable Open Height	300 mm
Throat Depth	515 mm
Working Speed	up to 50 mm/s
Bendmaster Capacity	15 kg carrying capacity
Max Part Size	500 x 380 mm (19.7 x 15.0 in)
Max Part Weight	1.5 kg (3.3 lb)
Min Sheet Thickness	0.5 mm (0.020 in)
Max Sheet Thickness	6 mm (0.236 in)
Bendmaster Weight	114 kg
Basic Machine Weight	4,200 kg (9,259 lb)
Cell Dimensions	5,500 x 3,870 x 2,630 mm (216.5 x 152.4 x 103.5 in)
Min Hall Height	5500 mm
Maximum Part Size	500 mm x 380 mm
Maximum Part Weight	1.5 kg
Maximum Carrying Capacity	15 kg
Minimum Sheet Thickness	0.5 mm
Maximum Sheet Thickness	6 mm
Weight of Basic Machine	4200 kg
Trubend Machine	5500 mm x 3870 mm x 2630 mm
Precise Angles	First part, perfect part – with ACB.

Specifications sourced from trumpf.com — verified 2026-10-03

Strengths & Limitations

Strengths

Working speed of up to 50 mm/s on a 217 kN press, which keeps the bending stroke short on small parts
Covers sheet from 0.5 mm (0.020 in) to 6 mm (0.236 in) thick in one cell
ACB is listed for angle precision, aimed at a correct first part without trial bends
A 515 mm throat and 1530 mm between the columns leave plenty of clearance around a part of at most 500 x 380 mm
The whole cell fits in 5,500 x 3,870 x 2,630 mm (216.5 x 152.4 x 103.5 in), with a 4,200 kg (9,259 lb) basic machine

Limitations

Parts are limited to 500 x 380 mm (19.7 x 15.0 in) and 1.5 kg (3.3 lb); anything larger needs a different cell
Usable open height is 300 mm, which restricts tall tooling and deep return flanges
Press force is 217 kN, so the 6 mm (0.236 in) thickness limit is only practical on short bends with a suitable die opening
The table has no back gauge, control or tool-change rows, so those points have to be settled with Trumpf

Best For

Automated bending of small parts up to 500 x 380 mm (19.7 x 15.0 in) Light components weighing no more than 1.5 kg (3.3 lb) Thin sheet work starting at 0.5 mm (0.020 in) Short bends that fit within a 217 kN press force

Frequently Asked Questions

01 What is the largest part the TruBend Cell 7000 can handle?

Trumpf lists a maximum part size of 500 x 380 mm (19.7 x 15.0 in) and a maximum part weight of 1.5 kg (3.3 lb). The BendMaster's carrying capacity is given separately as 15 kg, but the part limits are the figures to plan a job around.

02 What sheet thickness does the TruBend Cell 7000 process?

From 0.5 mm (0.020 in) to 6 mm (0.236 in). The press force is 217 kN, so whether the thickest sheet can be bent depends on the bend length, the die opening and the material. Check the heaviest bend in the job against that force.

03 How much space does the TruBend Cell 7000 need?

The cell dimensions are 5,500 x 3,870 x 2,630 mm (216.5 x 152.4 x 103.5 in). The basic machine weighs 4,200 kg (9,259 lb) and the BendMaster adds 114 kg. Check the floor loading and the access route against those figures before delivery.

04 How does the TruBend Cell 7000 differ from the TruBend Cell 5000?

Scale. The TruBend Cell 5000 is built around a long press brake, with a listed bending length of 3230 mm. The TruBend Cell 7000 has a bending length listed as 2x500 mm, a 217 kN press and a part limit of 500 x 380 mm and 1.5 kg, so it is the cell for small components.

05 How fast does the press brake in the TruBend Cell 7000 work?

The working speed is listed as up to 50 mm/s. The press brake has 300 mm of usable open height, so the beam travel between bends is short as well. Trumpf's table does not give separate approach or return speeds for this cell.
