Accurl EURO-PRO B 40400
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 40400 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 40400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

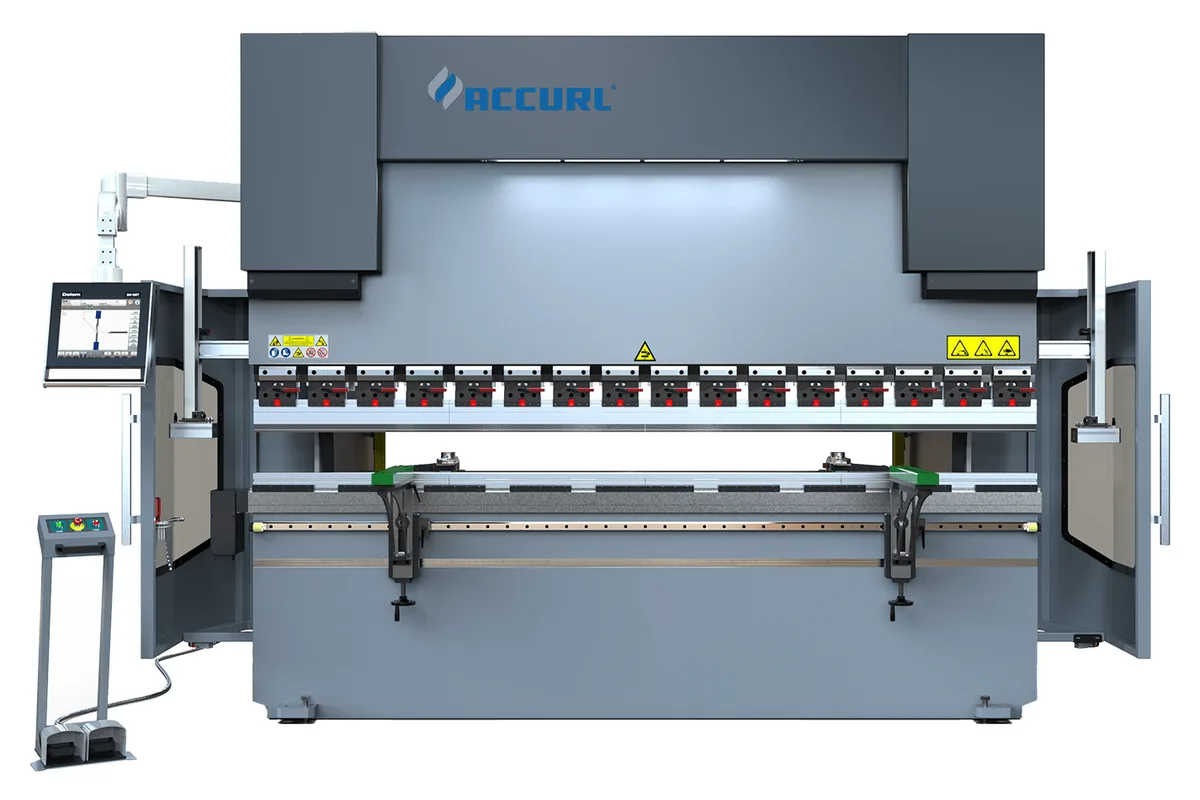

At 4,000 kN the EURO-PRO B series changes frame again, and the Accurl EURO-PRO B 40400 is the shortest machine built on it. Bending length is 4,000 mm (157.5 in). The gap in the side frames deepens to 450 mm (17.7 in) and the stroke lengthens to 320 mm (12.6 in).
The new frame is laid out differently from the one below it, and not every figure goes up. The table drops to 880 mm (34.6 in) from the floor, which makes heavy plate easier to load. It is 200 mm (7.9 in) wide. The daylight opening, though, is listed as 400 mm (15.7 in), where the EURO-PRO B 40320 has 560 mm (22 in). With a 320 mm stroke inside 400 mm of daylight, the height left for punch and die is small, so the tooling has to be chosen with the machine.
A 30 kW (40.2 hp) motor moves the ram at 120 mm/s on approach, 8 mm/s in the bend and 80 mm/s on return.
The machine weighs 27,000 kg (59,524 lb). It is shorter overall than the lighter four-metre models at 4,300 mm (169.3 in), 2,200 mm (86.6 in) wide and 3,580 mm (140.9 in) high. The EURO-PRO B 40320 is printed at 4,900 mm (192.9 in), so the length of this model is worth confirming.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 4,000 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Distance Between Side Frames | 3,300 mm (129.9 in) |
| Gap | 450 mm (17.7 in) |
| Daylight Opening | 400 mm (15.7 in) |
| Stroke | 320 mm (12.6 in) |
| Table Height | 880 mm (34.6 in) |
| Table Width | 200 mm (7.9 in) |
| Approach Speed | 120 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 80 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,300 mm (169.3 in) |
| Machine Width | 2,200 mm (86.6 in) |
| Machine Height | 3,580 mm (140.9 in) |
| Machine Weight | 27,000 kg (59,524 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 kN on a 4,000 mm (157.5 in) bed
- Stroke of 320 mm (12.6 in) and a gap of 450 mm (17.7 in)
- Low table at 880 mm (34.6 in) for loading heavy plate
- 30 kW (40.2 hp) motor keeps the approach at 120 mm/s
Limitations
- Daylight is listed as 400 mm (15.7 in), less than on the EURO-PRO B 40320
- Return speed of 80 mm/s with 8 mm/s in the bend
- Machine height of 3,580 mm (140.9 in)
- Printed length of 4,300 mm (169.3 in) looks short for the bending length and needs confirming
Best For
Frequently Asked Questions
01
The frame. On the Accurl EURO-PRO B 40400 the gap is 450 mm (17.7 in), the stroke 320 mm (12.6 in), the table 200 mm (7.9 in) wide and 880 mm (34.6 in) high, and the motor 30 kW (40.2 hp).
02
The table lists 400 mm (15.7 in). That is lower than the 560 mm (22 in) of the EURO-PRO B 40320, so confirm the usable tool height with Accurl for the punches and dies you plan to run.
03
27,000 kg (59,524 lb). Its outline is printed as 4,300 mm (169.3 in) long, 2,200 mm (86.6 in) wide and 3,580 mm (140.9 in) high.
04
Two. The EURO-PRO B 50400 bends 5,000 mm (196.9 in) and the EURO-PRO B 60400 bends 6,000 mm (236.2 in), each with a 30 kW (40.2 hp) motor like this one.
More from Accurl
Other CNC Press Brakes
Trumpf TruBend Cell 7000
Prima Power Express Bender

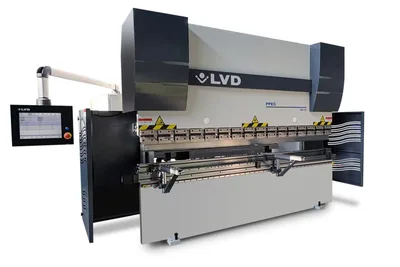

LVD PPEC 320/32
