Accurl EURO-PRO B 40220

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

Image: accurl.com, Accurl

Key Specifications

bending force

2,200 kN

bending length

4,000 mm (157.5 in)

distance between side frames

3,300 mm (129.9 in)

gap

400 mm (15.7 in)

daylight opening

470 mm (18.5 in)

stroke

200 mm (7.9 in)

How much does the Accurl EURO-PRO B 40220 cost?

Price estimate

Uncertain

We do not have a price for the Accurl EURO-PRO B 40220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accurl EURO-PRO B 40220 puts 2,200 kN on a four-metre bed. Bending length is 4,000 mm (157.5 in), weight 17,000 kg (37,478 lb), and the main motor is rated 18.5 kW (24.8 hp).

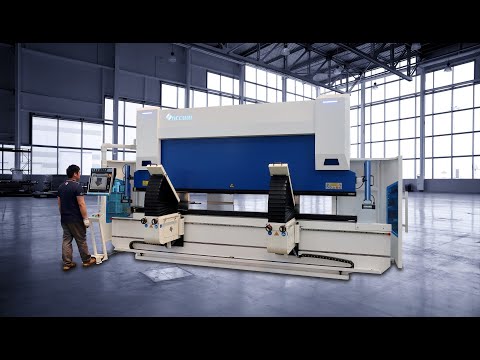

An operator will notice the table first. It stands 1,050 mm (41.3 in) above the floor. The EURO-PRO B 32220 has its table at 950 mm (37.4 in), and no lighter model of the series is as high as this one. Plate parts are heavy, and lifting them to that height all shift is worth planning for: a platform, or the optional AP3-AP4 sheet following system.

In the bend the machine behaves like its three-metre counterpart. Approach is 180 mm/s, bending 10 mm/s, return 140 mm/s. The daylight opening is 470 mm (18.5 in) and the stroke 200 mm (7.9 in).

Space requirements are 5,000 mm (196.9 in) in length and 1,800 mm (70.9 in) in width. The height reaches 3,000 mm (118.1 in).

Accurl's standard list includes a HOERBIGER hydraulic valve block, pump and valves. Hydraulic and pneumatic tool clamping systems are optional, and on a brake this long they shorten every tool change.

Full Specifications

Parameter	Value
Bending Force	2,200 kN
Bending Length	4,000 mm (157.5 in)
Distance Between Side Frames	3,300 mm (129.9 in)
Gap	400 mm (15.7 in)
Daylight Opening	470 mm (18.5 in)
Stroke	200 mm (7.9 in)
Table Height	1,050 mm (41.3 in)
Table Width	140 mm (5.5 in)
Approach Speed	180 mm/s
Bending Speed	10 mm/s
Return Speed	140 mm/s
Motor Power	18.5 kW (24.8 hp)
Backgauge Stroke	750 mm (29.5 in)
Machine Length	5,000 mm (196.9 in)
Machine Width	1,800 mm (70.9 in)
Machine Height	3,000 mm (118.1 in)
Machine Weight	17,000 kg (37,478 lb)

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

2,200 kN over 4,000 mm (157.5 in)
180 mm/s approach with an 18.5 kW (24.8 hp) motor
470 mm (18.5 in) daylight and a 140 mm (5.5 in) table
Width of only 1,800 mm (70.9 in)

Limitations

Table height of 1,050 mm (41.3 in) makes loading heavy parts harder
Stroke remains 200 mm (7.9 in)
Backgauge stroke of 750 mm (29.5 in) on a four-metre machine
Tool clamping systems are optional equipment

Best For

Four-metre plate and heavy sheet Truck body, tipper and trailer parts Steel fabricators bending long shallow sections

Frequently Asked Questions

01 How high is the table of the Accurl EURO-PRO B 40220?

1,050 mm (41.3 in), with a table width of 140 mm (5.5 in). The overall height of the machine is 3,000 mm (118.1 in) according to the specification table.

02 What are the dimensions and weight?

Length 5,000 mm (196.9 in), width 1,800 mm (70.9 in), height 3,000 mm (118.1 in), weight 17,000 kg (37,478 lb). Accurl prints these with a plus/minus mark.

03 Which model follows it on the same bed?

The EURO-PRO B 40250, with 2,500 kN, a 22 kW (29.5 hp) motor, a longer stroke of 250 mm (9.8 in) and a lower approach speed of 160 mm/s. Its return speed is unchanged.

04 Can tools be clamped hydraulically?

Hydraulic and pneumatic tool clamping systems are on the optional equipment list of the series. The catalogue does not state which manual clamping is fitted as standard, so ask for it in the quotation.
