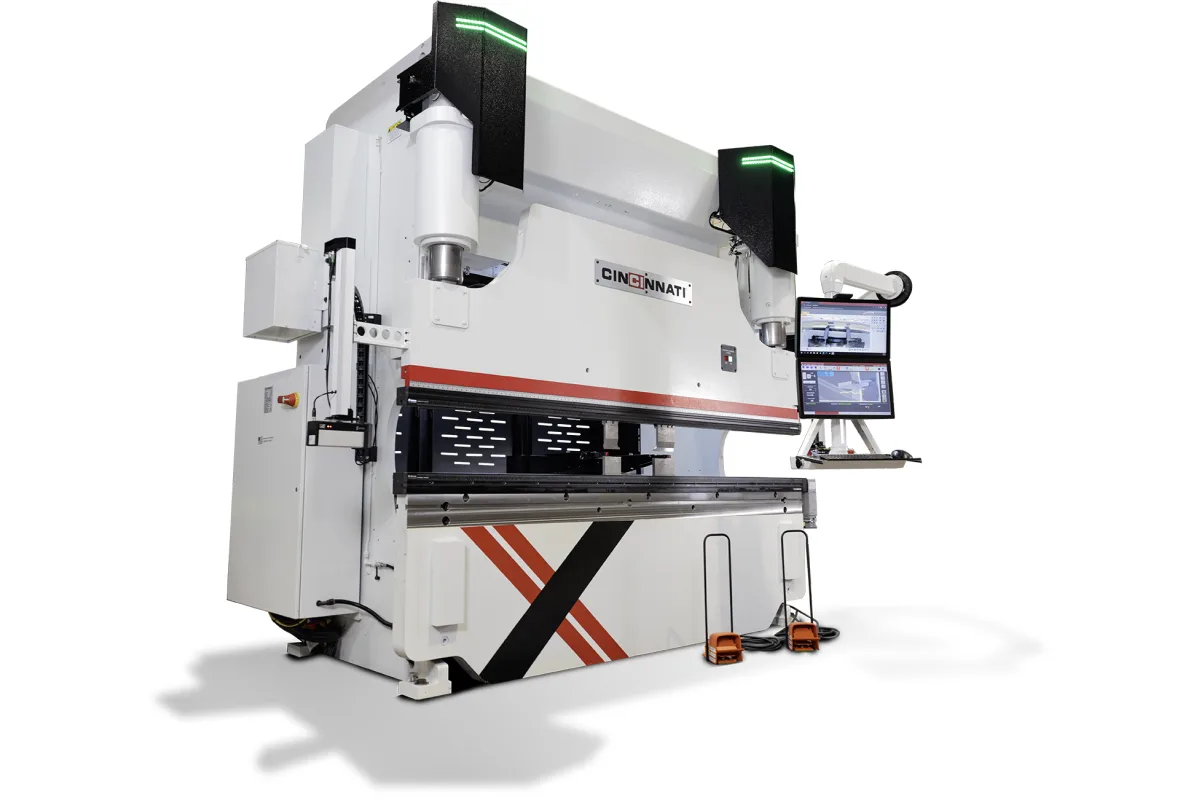

Cincinnati XFORMe 90XFe6
Image: e-ci.com, Cincinnati Incorporated
Key Specifications
overall die surface
closed height
stroke length
open height
throat
approach speed
How much does the Cincinnati XFORMe 90XFe6 cost?
Price estimate
We do not have a price for the Cincinnati XFORMe 90XFe6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Cincinnati XFORMe 90XFe6 is the smallest hybrid-drive XFORM press brake for which the maker publishes ram speeds. It has an 8 ft (2,438 mm) overall die surface, a 14 in (356 mm) stroke, 21 in (533 mm) of open height above a 7 in (178 mm) closed height, and an 18 in (457 mm) throat.
Hybrid here means a dual servo-motor pump that turns in both directions and runs only during the working portion of the stroke. Cincinnati's phrase for it is tonnage on demand. While the ram is idle, waiting for the operator to load a part, the drive draws little energy.
At this size the hybrid is not the speed choice. Its ram approaches and returns at 550 ipm (13,970 mm/min) and forms at 70 ipm (1,778 mm/min), while the hydraulic XFORM 90XF6 is listed at 650 ipm (16,510 mm/min) approach and 75 ipm (1,905 mm/min) forming. What the XFORMe adds is the quieter drive, a small fluid volume and Dynamic Thickness Compensation as standard.
Full Specifications
| Parameter | Value |
|---|---|
| Overall Die Surface | 8 ft (2,438 mm) |
| Closed Height | 7 in (178 mm) |
| Stroke Length | 14 in (356 mm) |
| Open Height | 21 in (533 mm) |
| Throat | 18 in (457 mm) |
| Approach Speed | 550 ipm (13,970 mm/min) |
| Forming Speed | 70 ipm (1,778 mm/min) |
| Return Speed | 550 ipm (13,970 mm/min) |
Specifications sourced from e-ci.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Servo pump drive that runs only during the working portion of the stroke
- Dynamic Thickness Compensation (DTC) is standard on XFORMe models
- 18 in (457 mm) throat and 21 in (533 mm) open height on an 8 ft (2,438 mm) bed
Limitations
- Approach speed is 550 ipm (13,970 mm/min); the hydraulic XFORM 90XF6 reaches 650 ipm (16,510 mm/min)
- Die surface is 8 ft (2,438 mm), the shortest of the XFORMe models with listed speeds
Best For
Frequently Asked Questions
01
The drive. The XFORMe 90XFe6 uses a dual servo-motor bidirectional pump and is listed at 550 ipm (13,970 mm/min) approach, 70 ipm (1,778 mm/min) forming and 550 ipm (13,970 mm/min) return. The all-hydraulic XFORM 90XF6 is listed at 650 ipm (16,510 mm/min), 75 ipm (1,905 mm/min) and 565 ipm (14,351 mm/min). Die surface, stroke, heights and throat are the same.
02
Dynamic Thickness Compensation automatically compensates for material thickness variations so that bends come out more accurate. Cincinnati states that it is standard on the XFORMe models.
