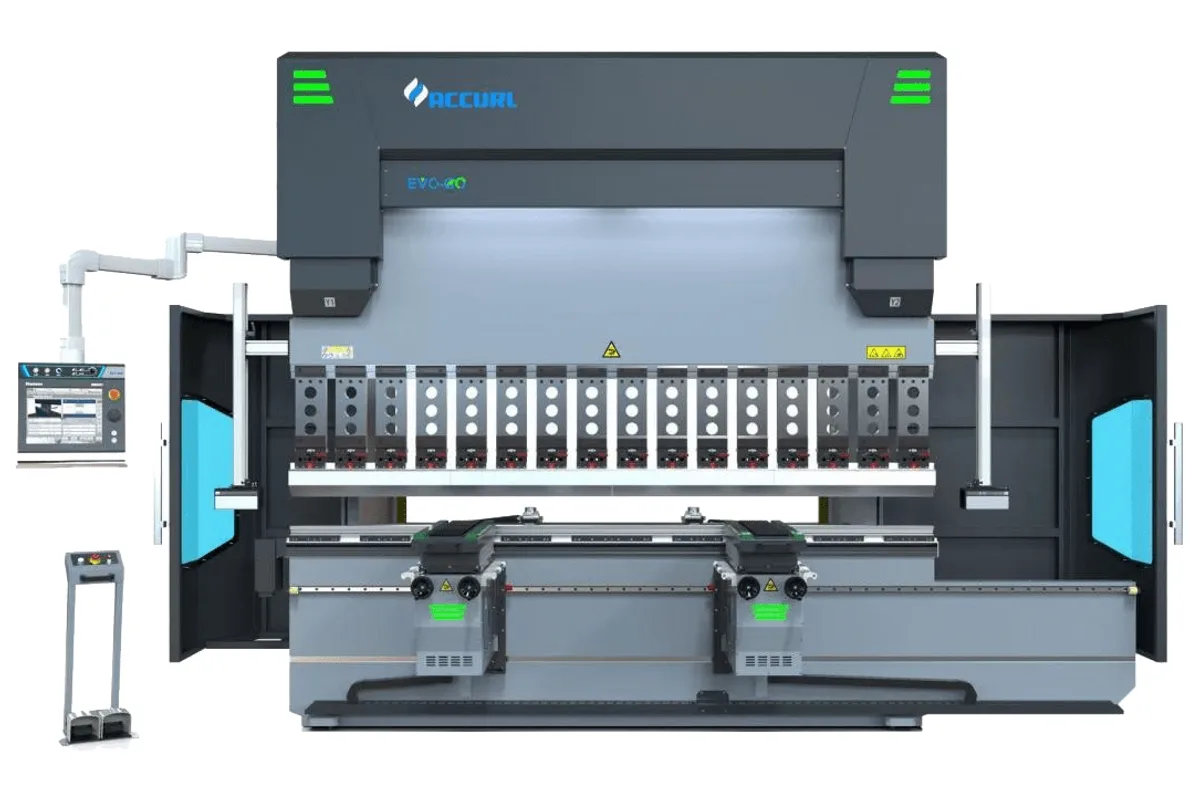

Accurl EURO GENIUS B40175H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40175H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40175H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,750 kN across 4,000 mm (157.5 in), the Accurl EURO GENIUS B40175H is the four-metre machine for shops that bend more than thin sheet. It weighs 12,650 kg (27,888 lb) and uses a 15 kW (20.1 hp) motor.
On the four-metre bed Accurl offers six capacities, and this is the second of them. Against the EURO GENIUS B40135H, which approaches at 190 mm/s, it has about 30% more force and a 180 mm/s approach. Return is 160 mm/s on both. Against the EURO GENIUS B40220H it is the faster and lighter machine but lacks that model's longer stroke.
Stroke here is 300 mm (11.8 in), daylight 550 mm (21.7 in), throat depth 450 mm (17.7 in). Bending speed is 0-10 mm/s.
One limitation is specific to the length. The backgauge stroke is 800 mm (31.5 in), matching the standard BGA-2 that Accurl gives as X=800mm. The stronger four-metre models are listed with 1,000 mm (39.4 in). If long flanges are gauged from the back, the optional X axis of 1000 mm is the item to ask for.
The machine is 4,900 mm (192.9 in) long, 1,900 mm (74.8 in) wide and 3,020 mm (118.9 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,750 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 180 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 15 kW (20.1 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,900 mm (192.9 in) |
| Machine Width | 1,900 mm (74.8 in) |
| Machine Height | 3,020 mm (118.9 in) |
| Machine Weight | 12,650 kg (27,888 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,750 kN over 4,000 mm (157.5 in)
- 180 mm/s approach and 160 mm/s return
- 12,650 kg (27,888 lb), lighter than the EURO GENIUS B40220H at 14,950 kg (32,959 lb)
- DELEM DA-66T control with 2D graphics as standard
Limitations
- Backgauge stroke of 800 mm (31.5 in), where the EURO GENIUS B40220H has 1,000 mm (39.4 in)
- 300 mm (11.8 in) stroke, short of the 320 mm (12.6 in) on the EURO GENIUS B40220H
- Height of 3,020 mm (118.9 in) needs checking against the building
Best For
Frequently Asked Questions
01
12,650 kg (27,888 lb). Its outline is 4,900 mm (192.9 in) by 1,900 mm (74.8 in), and it stands 3,020 mm (118.9 in) high.
02
The table gives a backgauge stroke of 800 mm (31.5 in). Accurl lists an X axis of 1000 mm with light barrier back protection as optional equipment.
03
Speed and weight. The EURO GENIUS B40220H has 2,200 kN and a 320 mm (12.6 in) stroke but approaches at 165 mm/s and returns at 150 mm/s. This model approaches at 180 mm/s and returns at 160 mm/s.
04
Yes, CNC motorized wave crowning is in the standard equipment list. Accurl explains that the system offsets deformation of the beam while bending so the angle stays constant along the entire plate length.
