AWEA LP-7033

Q: How much does the AWEA LP-7033 cost?

The price estimate for the AWEA LP-7033 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-lp-7033#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

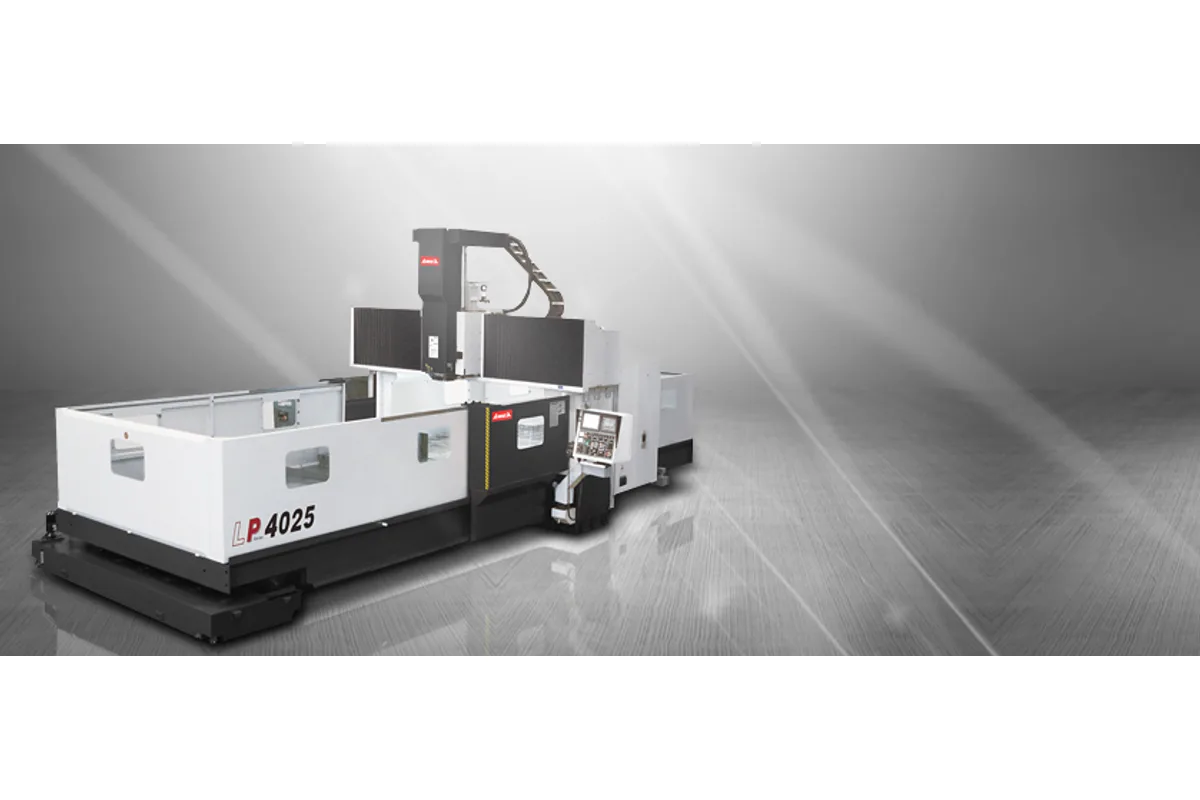

AWEA LP series bridge type machining center (LP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

6,000 rpm (Std.) Z-axis : 1,000 / 1,200 / 1,400 mm ; Gear 4,000 / 5,000 rpm (Opt.) Built-in 6,000 / 8,000 rpm (Opt.) Direct Drive 8,000 / 10,000 rpm (Opt.)

Spindle Taper

BT50 (ISO50) / DIN69871-A (Opt.)

Tool Capacity

32 (60 / 90 / 120 Opt.)

Table Size

7,020 x 2,400 mm (276.4 x 94.5 in)

Spindle Power

22 / 26 kW (30 / 35 HP)

x axis travel

7,000 mm (275.6 in)

How much does the AWEA LP-7033 cost?

Price estimate

Uncertain

We do not have a price for the AWEA LP-7033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

No LP model reaches further than the AWEA LP-7033: 7,000 mm (275.6 in) of X travel, 3,300 mm (129.9 in) of Y, a 7,020 x 2,400 mm (276.4 x 94.5 in) table and 66,000 kg (145,503 lb) of machine. Three things set it apart from the rest of the series, and all three come from its length.

First, the X axis is measured directly. AWEA's accuracy footnote says that machines with X travel of 7,000 mm and more carry an X-axis linear scale as a standard accessory. The listed VDI figures reflect it: P = 0.040 mm positioning accuracy over full travel and Ps = 0.030 mm repeatability, tighter than the P ≤ 0.050 mm and Ps ≤ 0.035 mm of the shorter LP-6033.

Second, delivery. The maker notes that a base for X travel longer than 6,000 mm may be built in two sections because of transport limits. Expect the bed to be joined and aligned on site, and plan the foundation and the installation time for that.

Third, speed. X rapid traverse is 7,500 mm/min (295 ipm), the lowest in the LP series; the LP-6033 moves at 10,000 mm/min (394 ipm). Y and Z rapids are 15,000 mm/min (591 ipm).

Table load is 20,000 kg (44,092 lb), which is no more than the LP-6033 carries. The extra metre is for longer parts, or for two setups side by side, not for heavier ones. The spindle is the common LP unit: BT50, 22 / 26 kW (30 / 35 HP), 6,000 rpm standard.

Full Specifications

Parameter	Value
X Axis Travel	7,000 mm (275.6 in)
Y Axis Travel	3,300 mm (129.9 in) (4,000 mm Opt.)
Z Axis Travel	760 mm (29.9 in) (1,000 / 1,200 / 1,400 mm Opt.)
Table Size	7,020 x 2,400 mm (276.4 x 94.5 in)
Max Table Load	20,000 kg (44,092 lb)
Distance Spindle Nose to Table	240 ~ 1,000 mm (9.4 ~ 39.4 in) (200 ~ 1,200 mm / 200 ~ 1,400 mm / 200 ~ 1,600 mm Opt.)
Distance Between Columns	3,500 mm (137.8 in)
Spindle Motor Power	22 / 26 kW (30 / 35 HP)
Max Spindle Speed	6,000 rpm (Std.) Z-axis : 1,000 / 1,200 / 1,400 mm ; Gear 4,000 / 5,000 rpm (Opt.) Built-in 6,000 / 8,000 rpm (Opt.) Direct Drive 8,000 / 10,000 rpm (Opt.)
Spindle Taper	BT50 (ISO50) / DIN69871-A (Opt.)
Rapid Traverse X	7,500 mm/min (295 ipm)
Rapid Traverse Y	15,000 mm/min (591 ipm)
Rapid Traverse Z	15,000 mm/min (591 ipm)
Tool Capacity	32 (60 / 90 / 120 Opt.)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Max Tool Length	350 mm (13.8 in)
Max Tool Weight	20 kg (44 lb)
Positioning Accuracy VDI 3441	P = 0.040 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps = 0.030 mm
Air Pressure Requirement	5 ~ 8 (5) kg/cm²
Hydraulic Tank Capacity	120 liter (10 HP)
Lubrication Tank Capacity	6 liter
Coolant Tank Capacity	750 liter (1.5 HP)
Machine Weight	66,000 kg (145,503 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

7,000 mm (275.6 in) of X travel, the longest in the LP series
X-axis linear scale is a standard accessory at this travel
VDI positioning accuracy of P = 0.040 mm over full travel, tighter than the LP-6033 figure
7,020 x 2,400 mm (276.4 x 94.5 in) table rated for 20,000 kg (44,092 lb)
3,500 mm (137.8 in) between columns with 3,300 mm (129.9 in) of Y travel

Limitations

X rapid traverse of 7,500 mm/min (295 ipm), the slowest X axis of the LP machines
The base may be delivered in two sections, which adds work at installation
Table load of 20,000 kg (44,092 lb) is no higher than on the LP-6033
66,000 kg (145,503 lb) machine weight, against 57,000 kg (125,661 lb) for the LP-6033

Best For

Parts between 6,000 and 7,000 mm long machined in one clamping Two long setups side by side along the 7,020 mm table Long work where an X-axis linear scale is required Rail, beam and frame components up to 20,000 kg (44,092 lb)

Frequently Asked Questions

01 Does the LP-7033 have linear scales?

On the X axis, yes. AWEA's specification footnote states that machines with X-axis travel of 7,000 mm or more come with the X-axis linear scale as a standard accessory. The table does not mention scales on Y or Z for this model.

02 Is the LP-7033 delivered in one piece?

Not necessarily. AWEA describes a one-piece base structure for the series but adds that with X-axis travel longer than 6,000 mm the base may be in two sections due to the transportation limit. The LP-7033, with 7,000 mm (275.6 in) of X travel and a weight of 66,000 kg (145,503 lb), falls under that note.

03 How fast does the LP-7033 traverse?

X rapid traverse is 7,500 mm/min (295 ipm). Y and Z are 15,000 mm/min (591 ipm). For comparison, the LP-6033 and LP-5033 have an X rapid of 10,000 mm/min (394 ipm) and the LP-4033 15,000 mm/min (591 ipm).

04 LP-7033 or LP-6033?

The LP-7033 adds 1,000 mm of X travel and table length and a standard X-axis linear scale, with listed VDI accuracy of P = 0.040 mm against P ≤ 0.050 mm for the LP-6033. The LP-6033 is faster in X, 10,000 mm/min (394 ipm), and lighter at 57,000 kg (125,661 lb). Both carry 20,000 kg (44,092 lb).

05 How many tools does the LP-7033 hold?

32 as standard, with 60, 90 or 120 tool magazines as options. Tools can be up to Ø127 mm in diameter, or Ø215 mm with the adjacent pockets empty, up to 350 mm (13.8 in) long and up to 20 kg (44 lb).
