AWEA AF-1060II

Q: How much does the AWEA AF-1060II cost?

The price estimate for the AWEA AF-1060II is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-af-1060ii#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

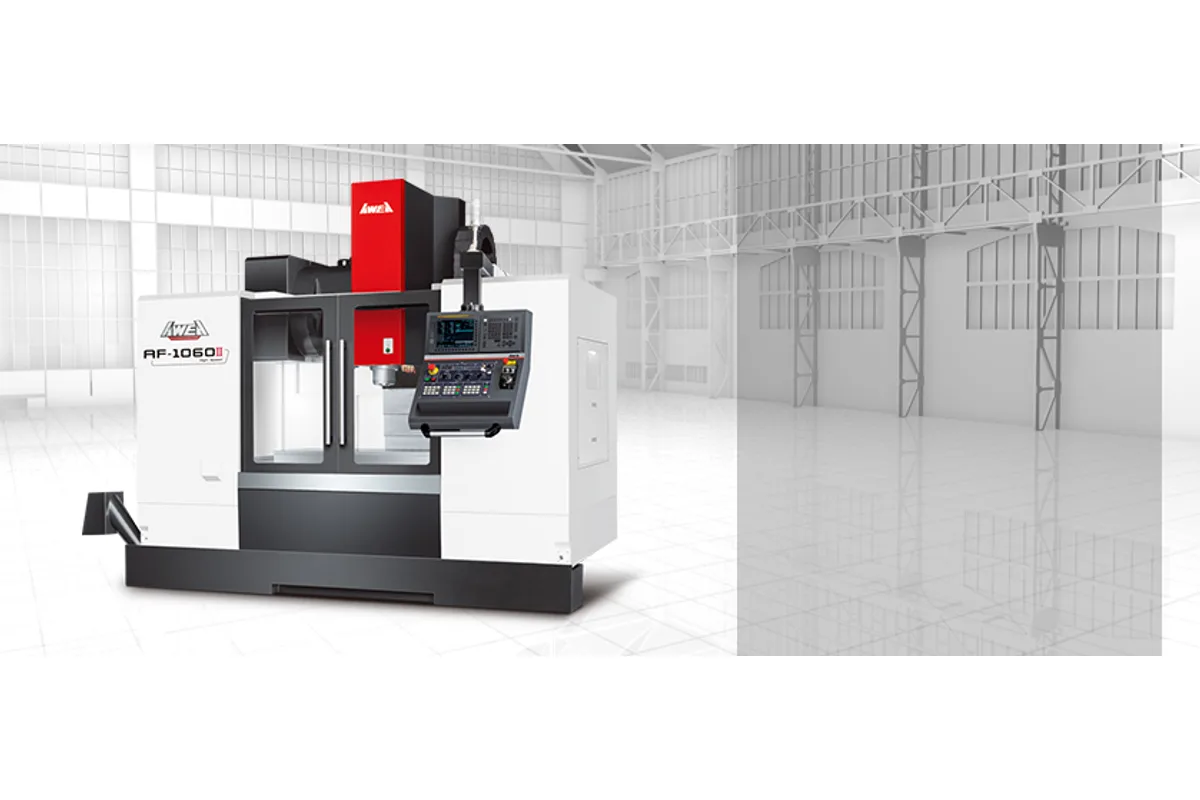

AWEA AF-1060II vertical machining center

Image: awea.com, AWEA

Key Specifications

Max Spindle

Direct-drive 12,000 rpm

Spindle Taper

BT40 (BT50 Opt.)

Tool Capacity

24 T

Table Size

1,200 x 650 mm (47.2 x 25.6 in)

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Accuracy

0.008 mm

How much does the AWEA AF-1060II cost?

Price estimate

Uncertain

We do not have a price for the AWEA AF-1060II that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA AF-1060II opens the mid-size group of the AF-II vertical machining centers. Travels are 1,060 mm (41.7 in) in X, 650 mm (25.6 in) in Y and 610 mm (24.0 in) in Z over a 1,200 x 650 mm (47.2 x 25.6 in) table. It is the first AF model for which AWEA's table lists a BT50 spindle as an option beside the standard BT40.

Three machines share this casting size. The AF-1250II and AF-1400II keep the same Y, Z, column reach of 710 mm (28.0 in) and rapids, and only lengthen X. Of the three, the AF-1060II has the lowest table load at 700 kg (1,543 lb) and the lowest weight at 6,900 kg (15,212 lb). It also needs 30 kVA, where the AF-1250II and AF-1400II need 35 kVA.

Movement is quick for this class. X and Y traverse at 48 m/min (1,890 ipm), and Z at 36 m/min (1,417 ipm), which is faster in Z than any other group in the range. Positioning accuracy is listed as 0.008 mm and repeatability as 0.006 mm to ISO230-2. The standard spindle is direct-drive, 12,000 rpm, 11 / 15 kW (14.8 / 20.1 hp).

For heavier cutting AWEA describes gear spindles for the series: an 8,000 rpm BT40 unit with 280 Nm at 375 rpm, and a 6,000 rpm BT50 unit with a 15 kW motor and 382 Nm at 375 rpm. Gear spindles come with a box way Z-axis. AWEA asks buyers to confirm with the sales representative which models these apply to, so treat them as something to ask about, not as part of the base machine.

Full Specifications

Parameter	Value
X Axis Travel	1,060 mm (41.7 in)
Y Axis Travel	650 mm (25.6 in)
Z Axis Travel	610 mm (24.0 in)
Table Size	1,200 x 650 mm (47.2 x 25.6 in)
Max Table Load	700 kg (1,543 lb)
Distance Spindle Center to Column	710 mm (28.0 in)
Distance Spindle Nose to Table	125 ~ 735 mm (4.9 ~ 28.9 in)
T-Slots	18 mm x 100 mm x 5
Spindle Taper	BT40 (BT50 Opt.)
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Max Spindle Speed	Direct-drive 12,000 rpm
Rapid Traverse Xy	48 m/min (1,890 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Cutting Feed Rate	15 m/min (591 ipm)
Tool Capacity	24 T
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in)
Positioning Accuracy	0.008 mm
Repeatability	0.006 mm
CNC Control	FANUC Oi-MF PLUS
Air Pressure Requirement	6 kg/cm²
Power Requirement	30 kVA
Coolant Tank Capacity	370 liter
Machine Weight	6,900 kg (15,212 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

650 mm (25.6 in) of Y travel matched to a 650 mm deep table, 100 mm more than the AF-1000
Fastest Z rapid in the AF-II range at 36 m/min (1,417 ipm), with 48 m/min (1,890 ipm) in X and Y
BT50 listed as an option alongside the standard BT40 taper
Needs only 30 kVA, less than the AF-1250II and AF-1400II on the same frame size
Direct-drive 12,000 rpm spindle rated 11 / 15 kW (14.8 / 20.1 hp)

Limitations

Table load is 700 kg (1,543 lb); the AF-1250II on the same Y and Z carries 1,000 kg (2,205 lb)
Positioning accuracy of 0.008 mm is looser than the 0.006 mm listed for the AF-1000
Z travel of 610 mm (24.0 in) is shorter than the 635 mm (25.0 in) of the AF-1000
Gear spindle availability for this model has to be confirmed with AWEA

Best For

General job-shop milling of parts up to 1,060 x 650 mm Mold bases and plates that need the full 650 mm (25.6 in) of Y Work with frequent Z retracts, helped by 36 m/min (1,417 ipm) Z rapids Shops wanting a BT50 option in a one-metre-class machine

Frequently Asked Questions

01 What are the main specifications of the AWEA AF-1060II?

X, Y and Z travels are 1,060 mm (41.7 in), 650 mm (25.6 in) and 610 mm (24.0 in). The table is 1,200 x 650 mm (47.2 x 25.6 in) and carries 700 kg (1,543 lb). The spindle is a direct-drive 12,000 rpm unit, BT40 as standard with BT50 optional, and the machine weighs 6,900 kg (15,212 lb).

02 Is a BT50 spindle available on the AF-1060II?

AWEA's table gives the taper as BT40 with BT50 as an option. For the series, AWEA describes a 6,000 rpm BT50 high torque gear spindle with a 15 kW motor and 382 Nm at 375 rpm, and states that gear spindles are equipped with a box way Z-axis. Which models can take it is something AWEA asks buyers to confirm with their sales representative.

03 How does the AF-1060II compare with the AF-1250II?

The AF-1250II has 1,250 mm (49.2 in) of X travel, a 1,350 x 650 mm (53.1 x 25.6 in) table and a 1,000 kg (2,205 lb) load rating. Y and Z travel, rapids, spindle and accuracy figures are the same as on the AF-1060II. The AF-1250II weighs 7,500 kg (16,534 lb) and needs 35 kVA.

04 What accuracy does AWEA list for the AF-1060II?

Positioning accuracy is 0.008 mm and repeatability is 0.006 mm, both stated to ISO230-2. AWEA attributes the axis performance to roller type linear guide ways, dual-nut ball screws and FANUC αi absolute AC servo motors driving the screws directly.
