AWEA HTP-7033

Q: How much does the AWEA HTP-7033 cost?

The price estimate for the AWEA HTP-7033 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-7033#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

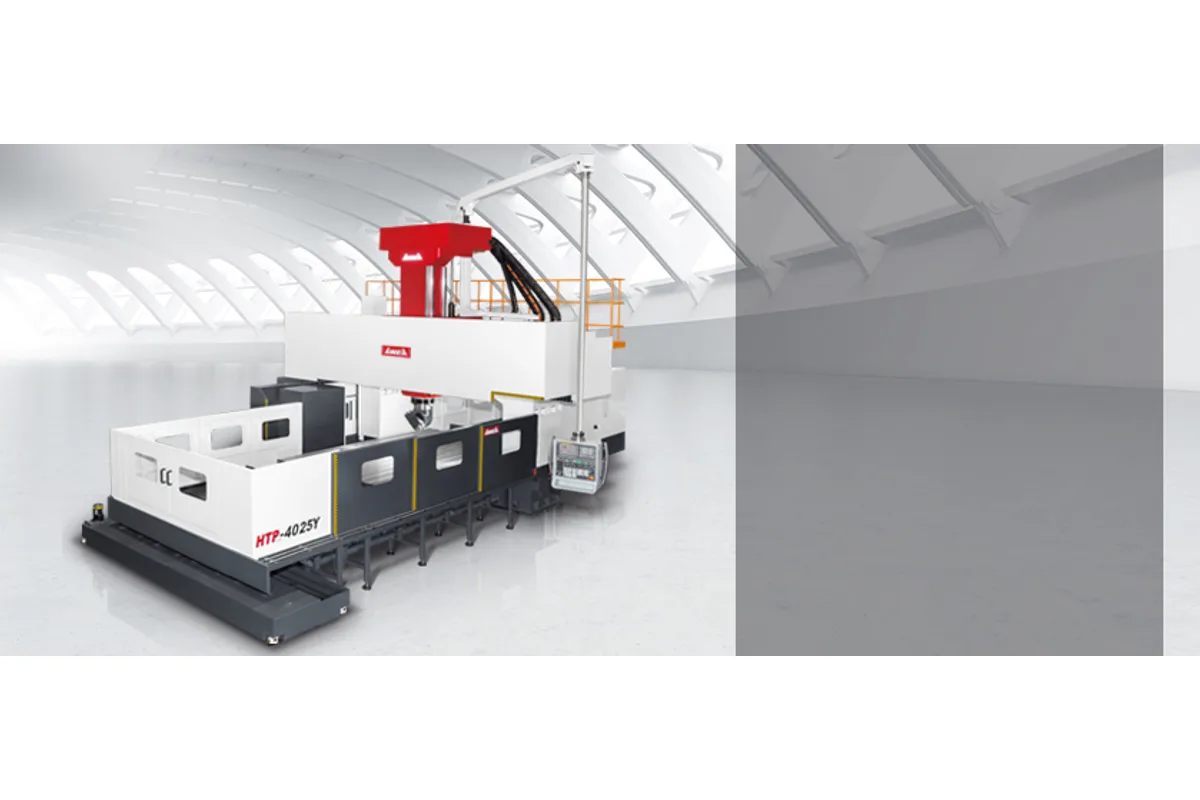

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

7,020 x 3,000 mm (276.4 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

7,000 mm (275.6 in)

How much does the AWEA HTP-7033 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-7033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA HTP-7033 stretches the 3,500 mm (137.8 in) HTP frame to 7,000 mm (275.6 in) of X travel. Y is 3,300 mm (129.9 in), Z is 1,000 mm (39.4 in) and the table measures 7,020 x 3,000 mm (276.4 x 118.1 in).

The step from six metres to seven is the biggest jump in mass anywhere in the series. This machine weighs 61,000 kg (134,480 lb); the HTP-6033 weighs 51,000 kg (112,434 lb). The table rating does not move with it. Both carry 20,000 kg (44,092 lb), so the added iron goes into the longer base and table, not into payload.

X rapid traverse drops to 7.5 m/min (295 ipm), the slowest value AWEA prints for an HTP, and cutting feed is 1 ~ 5 m/min (39 ~ 197 ipm). A full-length repositioning move therefore takes noticeably longer than on the shorter models, and programs with many end-to-end moves should be planned around it.

Accuracy runs against the usual pattern. The table gives P ≤ 0.040 mm over full travel and Ps ≤ 0.030 mm under VDI for the HTP-7033, tighter than the P ≤ 0.050 mm and Ps ≤ 0.035 mm of the HTP-6033. AWEA's HTP pages describe a semi-closed loop system with encoders on the ball screws and do not explain the difference, so confirm the figure and the feedback hardware when quoting.

Spindle, taper and magazine are common to the series: 4,000 rpm gear drive, BBT50 (ISO 50), 32 T.

Full Specifications

Parameter	Value
X Axis Travel	7,000 mm (275.6 in)
Y Axis Travel	3,300 mm (129.9 in) (Opt. 4,000)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	7,020 x 3,000 mm (276.4 x 118.1 in)
Max Table Load	20,000 kg (44,092 lb)
Distance Between Columns	3,500 mm (137.8 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	7.5 m/min (295 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 5 m/min (39 ~ 197 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.040 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.030 mm
Coolant Tank Capacity	1,050 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	61,000 kg (134,480 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

7,000 mm (275.6 in) of X travel with a 7,020 x 3,000 mm (276.4 x 118.1 in) table
VDI accuracy of P ≤ 0.040 mm over full travel, tighter than the figure listed for the HTP-6033
20,000 kg (44,092 lb) table load
4 guideways on the base under the table, which AWEA says reduces work table overhang
1,050 liter coolant tank with two coil type chip augers and a caterpillar type chip conveyor as standard

Limitations

X rapid traverse of 7.5 m/min (295 ipm), the slowest in the series
61,000 kg (134,480 lb) machine weight, against 51,000 kg (112,434 lb) for the HTP-6033
Table load does not rise above the 20,000 kg (44,092 lb) of the HTP-6033
Cutting feed capped at 1 ~ 5 m/min (39 ~ 197 ipm)

Best For

Single parts up to 7,000 mm (275.6 in) long that cannot be re-clamped Pendulum-style loading with two setups along the 7,020 mm (276.4 in) table Heavy, slow milling and boring where rapid speed matters little Structures up to 20,000 kg (44,092 lb)

Frequently Asked Questions

01 How heavy is the HTP-7033 and what does that mean for installation?

61,000 kg (134,480 lb), before a workpiece of up to 20,000 kg (44,092 lb). Foundation design, crane capacity and transport sections should be settled with AWEA before the order, because this is a clear step above the 51,000 kg (112,434 lb) HTP-6033.

02 How fast are the axes of the HTP-7033?

X rapid traverse is 7.5 m/min (295 ipm). Y and Z rapids are 12 m/min (472 ipm). Cutting feed is 1 ~ 5 m/min (39 ~ 197 ipm). The HTP-7041 has the same X figure but 10 m/min (394 ipm) on Y and Z.

03 Is the HTP-7033 really more accurate than the HTP-6033?

On paper. AWEA's table prints P ≤ 0.040 mm over full travel and Ps ≤ 0.030 mm for the HTP-7033, and P ≤ 0.050 mm and Ps ≤ 0.035 mm for the HTP-6033, both under VDI. The JIS rows are the same for the two: ± 0.015 mm and ± 0.003 mm. The feature pages give no reason, so ask the maker.

04 What is the difference between the HTP-7033 and the LP-7033?

Both have 7,000 mm (275.6 in) of X and 3,300 mm (129.9 in) of Y. The LP-7033 lists a 7,020 x 2,400 mm (276.4 x 94.5 in) table, 760 mm (29.9 in) of Z and 66,000 kg (145,503 lb). The HTP-7033 lists a 7,020 x 3,000 mm (276.4 x 118.1 in) table, 1,000 mm (39.4 in) of Z and 61,000 kg (134,480 lb).
