AWEA HTP-4033

Q: How much does the AWEA HTP-4033 cost?

The price estimate for the AWEA HTP-4033 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-4033#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

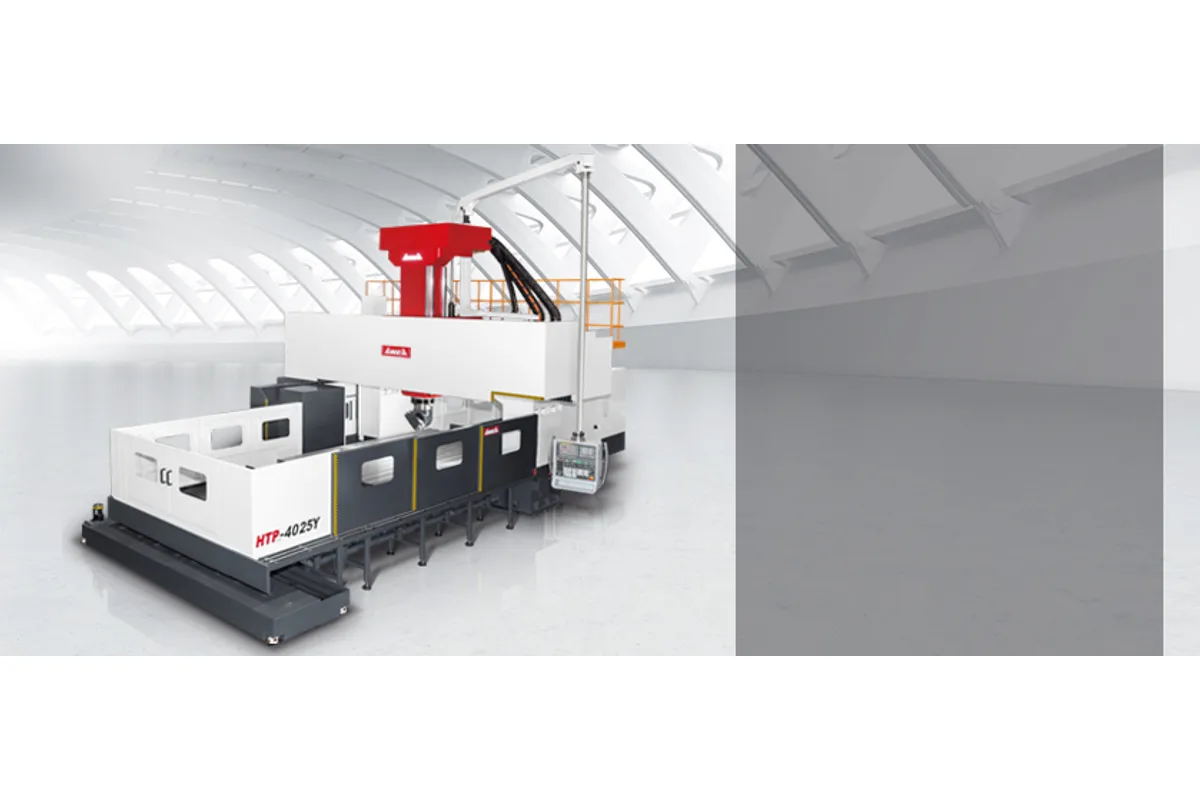

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

4,020 x 3,000 mm (158.3 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

4,000 mm (157.5 in)

How much does the AWEA HTP-4033 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-4033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 3,500 mm (137.8 in) between its columns, the AWEA HTP-4033 opens the middle width of the HTP bridge series. Travels are 4,000 mm (157.5 in) in X, 3,300 mm (129.9 in) in Y and 1,000 mm (39.4 in) in Z, over a table of 4,020 x 3,000 mm (158.3 x 118.1 in).

That table is nearly square in plan, and it changes what fits. The HTP-4025 offers the same length on a 4,020 x 2,400 mm (158.3 x 94.5 in) table with 2,500 mm (98.4 in) of Y. Going wide does not raise the load rating, which stays at 15,000 kg (33,069 lb), and it adds little mass: 43,000 kg (94,797 lb) against the 41,000 kg (90,388 lb) of the HTP-4025.

Nothing is lost in motion either. X rapid traverse is 15 m/min (591 ipm), Y and Z run at 12 m/min (472 ipm), and cutting feed is 1 ~ 10 m/min (39 ~ 394 ipm). VDI accuracy matches the narrow machine at P ≤ 0.030 mm over full travel.

A longer cross beam puts more demand on the Y-axis, since the headstock hangs further from the columns at mid-span. AWEA's answer is a stepped offset three guideways design on Y, with the head on a one-piece U-shaped saddle. The spindle is the series' 4,000 rpm gear unit with BBT50 (ISO 50) taper. Coolant capacity rises to 1,050 liter on this frame.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	3,300 mm (129.9 in) (Opt. 4,000)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	4,020 x 3,000 mm (158.3 x 118.1 in)
Max Table Load	15,000 kg (33,069 lb)
Distance Between Columns	3,500 mm (137.8 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	15 m/min (591 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 10 m/min (39 ~ 394 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.030 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.025 mm
Coolant Tank Capacity	1,050 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	43,000 kg (94,797 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,300 mm (129.9 in) of Y travel and 3,500 mm (137.8 in) between the columns on a 4,000 mm (157.5 in) X stroke
Keeps the 15 m/min (591 ipm) X rapid and 1 ~ 10 m/min (39 ~ 394 ipm) cutting feed of the HTP-4025
4,020 x 3,000 mm (158.3 x 118.1 in) table for wide plates and ring-shaped parts
43,000 kg (94,797 lb), close to the 41,000 kg (90,388 lb) of the narrower HTP-4025
1,050 liter coolant tank, larger than the 900 liter tank of the HTP-4025

Limitations

Table load is 15,000 kg (33,069 lb), no higher than the narrower HTP-4025
The 3,000 mm (118.1 in) table width is less than the 3,300 mm (129.9 in) Y travel, so the widest work overhangs the table
4,000 rpm gear spindle only in the specification table
A universal head must be ordered for slanted angle milling

Best For

Wide plates, large flanges and frames up to about 4,000 x 3,000 mm Parts that need 3,300 mm (129.9 in) of Y but only 4,000 mm of X Heavy cutting with BBT50 tooling at up to 4,000 rpm Two fixtures side by side across a 3,000 mm (118.1 in) wide table

Frequently Asked Questions

01 What does the HTP-4033 add over the HTP-4025?

Width. Against the HTP-4025, column spacing goes from 2,700 mm (106.3 in) to 3,500 mm (137.8 in), Y travel from 2,500 mm (98.4 in) to 3,300 mm (129.9 in) and the table from 4,020 x 2,400 mm (158.3 x 94.5 in) to 4,020 x 3,000 mm (158.3 x 118.1 in). Rapids, cutting feed, table load and accuracy figures are the same on both.

02 Is a wider Y travel available on the HTP-4033?

The table prints 3,300 mm (129.9 in) followed by "Opt. 4,000". The distance between columns is given as 3,500 mm (137.8 in) with no option beside it, so ask AWEA how the optional travel relates to the clearance between the columns.

03 How is the Y-axis of the HTP-4033 supported?

By three guideways in a stepped offset layout, which AWEA says reduces distortion due to headstock weight. All three axes use roller type linear guide ways, and the Z-axis has two guideways on each side of the headstock.

04 What is the X rapid traverse of the HTP-4033?

15 m/min (591 ipm), the series maximum. The HTP-5033 and HTP-6033 are listed at 10 m/min (394 ipm) and the HTP-7033 at 7.5 m/min (295 ipm), so this is the quickest machine of the 3,500 mm (137.8 in) frame.
