AWEA HTP-6033

Q: How much does the AWEA HTP-6033 cost?

The price estimate for the AWEA HTP-6033 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-6033#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

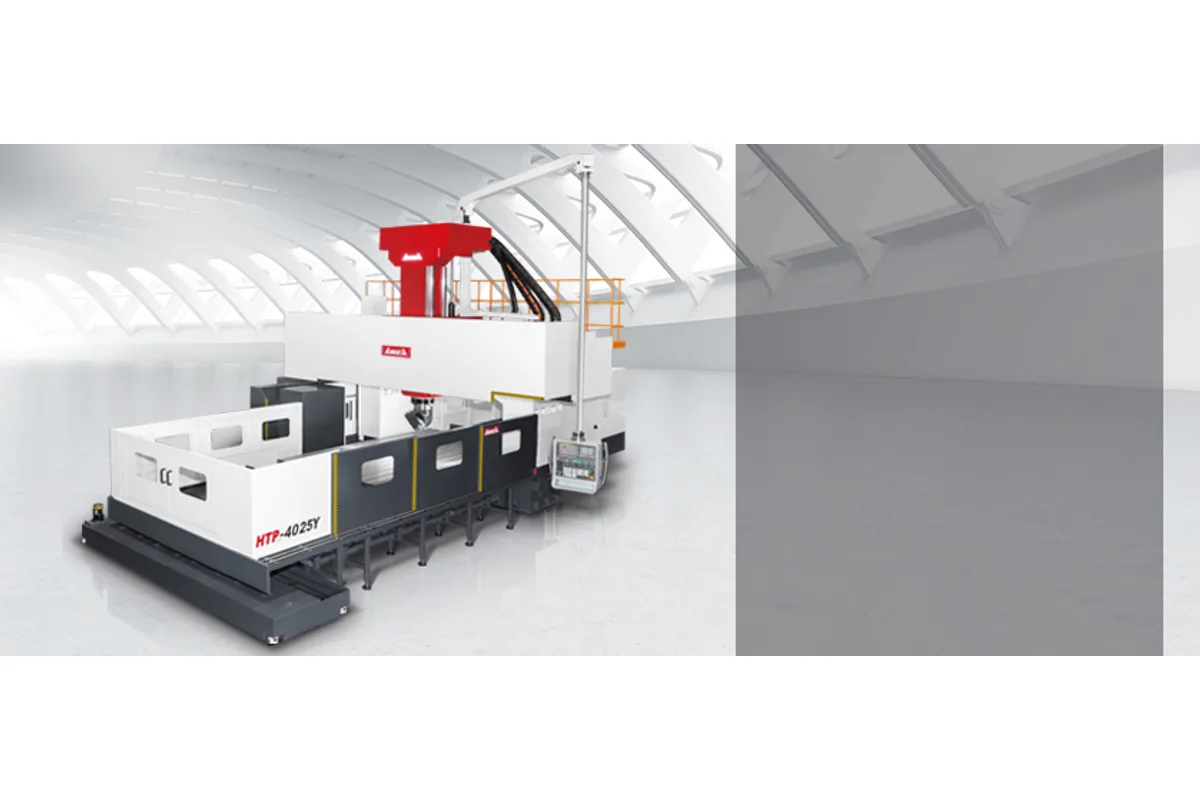

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

6,020 x 3,000 mm (237.0 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

6,000 mm (236.2 in)

How much does the AWEA HTP-6033 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-6033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Six metres by three: the AWEA HTP-6033 has a 6,020 x 3,000 mm (237.0 x 118.1 in) table, 6,000 mm (236.2 in) of X travel and 3,300 mm (129.9 in) of Y. It takes 20,000 kg (44,092 lb) on the table and weighs 51,000 kg (112,434 lb) itself.

A part that fills such a table is rarely turned over for the sake of one side face. That is the case for the options AWEA groups under multi-face machining. An automatic head changer stores one cover and one 90° head in two compartments attached to the column, behind a door that opens only during a head exchange. A vertical / horizontal ATC system then changes tools in either head position. Both are optional upgrades; the 3D coordinate transform function that re-orients the program to the head is standard.

Without those options the HTP-6033 is a three-axis machine with a vertical 4,000 rpm gear spindle, BBT50 (ISO 50) taper and a 22 / 26 kW (29.5 / 34.9 hp) motor. Z travel is 1,000 mm (39.4 in).

Feeds are modest, as on all the long HTP machines: 10 m/min (394 ipm) X rapid and 1 ~ 5 m/min (39 ~ 197 ipm) in the cut. VDI positioning is P ≤ 0.050 mm over full travel. Oddly, the longer HTP-7033 is listed tighter, at P ≤ 0.040 mm.

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	3,300 mm (129.9 in) (Opt. 4,000)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	6,020 x 3,000 mm (237.0 x 118.1 in)
Max Table Load	20,000 kg (44,092 lb)
Distance Between Columns	3,500 mm (137.8 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	10 m/min (394 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 5 m/min (39 ~ 197 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.050 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.035 mm
Coolant Tank Capacity	1,050 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	51,000 kg (112,434 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,020 x 3,000 mm (237.0 x 118.1 in) table rated for 20,000 kg (44,092 lb)
Optional automatic head changer mounted on the column, holding one cover and one 90° head
3D coordinate transform function is standard
51,000 kg (112,434 lb), well below the 61,000 kg (134,480 lb) of the HTP-7033 with the same table load
32 T magazine as standard with larger magazines available

Limitations

The automatic head changer and the vertical / horizontal ATC system are options, not part of the base machine
VDI figures of P ≤ 0.050 mm and Ps ≤ 0.035 mm, wider than those printed for the HTP-7033
Cutting feed of 1 ~ 5 m/min (39 ~ 197 ipm)
Y and Z rapids of 12 m/min (472 ipm) and an X rapid of 10 m/min (394 ipm) make for slow repositioning across a large table

Best For

Large fabrications machined on the top and the side faces in one clamping, with the head options Machine tool beds and columns up to 6,000 mm (236.2 in) Loads up to 20,000 kg (44,092 lb) Wide die sets and bolsters on a 3,000 mm (118.1 in) table

Frequently Asked Questions

01 Can the HTP-6033 machine the side faces of a part?

With options, yes. AWEA offers an automatic head changer whose two storage compartments hold one cover and one 90° head, and a vertical / horizontal ATC system for tool changes in both orientations. The standard machine has a vertical spindle only. Slanted angle milling needs a universal head, which must be ordered.

02 Where is the head changer of the HTP-6033 installed?

On the column. AWEA says attaching the head changing system there reduces floor space. The head magazine has its own automatic door, which opens only during head exchanges to keep chips and coolant out.

03 Why would I choose the HTP-6033 over the HTP-6025?

For width. The HTP-6025 has 2,700 mm (106.3 in) between the columns, 2,500 mm (98.4 in) of Y and a 6,020 x 2,400 mm (237.0 x 94.5 in) table. The HTP-6033 has 3,500 mm (137.8 in), 3,300 mm (129.9 in) and 6,020 x 3,000 mm (237.0 x 118.1 in). Table load is 20,000 kg (44,092 lb) on each, and the accuracy and feed rows are identical.

04 What tool magazine comes with the HTP-6033?

A 32 tools magazine is standard, and AWEA lists 40T / 60T / 90T / 120T magazines as optional. Maximum tool weight is 20 kg (44 lb) and maximum tool length 350 mm (13.8 in).
