AWEA HTP-4025

Q: How much does the AWEA HTP-4025 cost?

The price estimate for the AWEA HTP-4025 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-4025#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

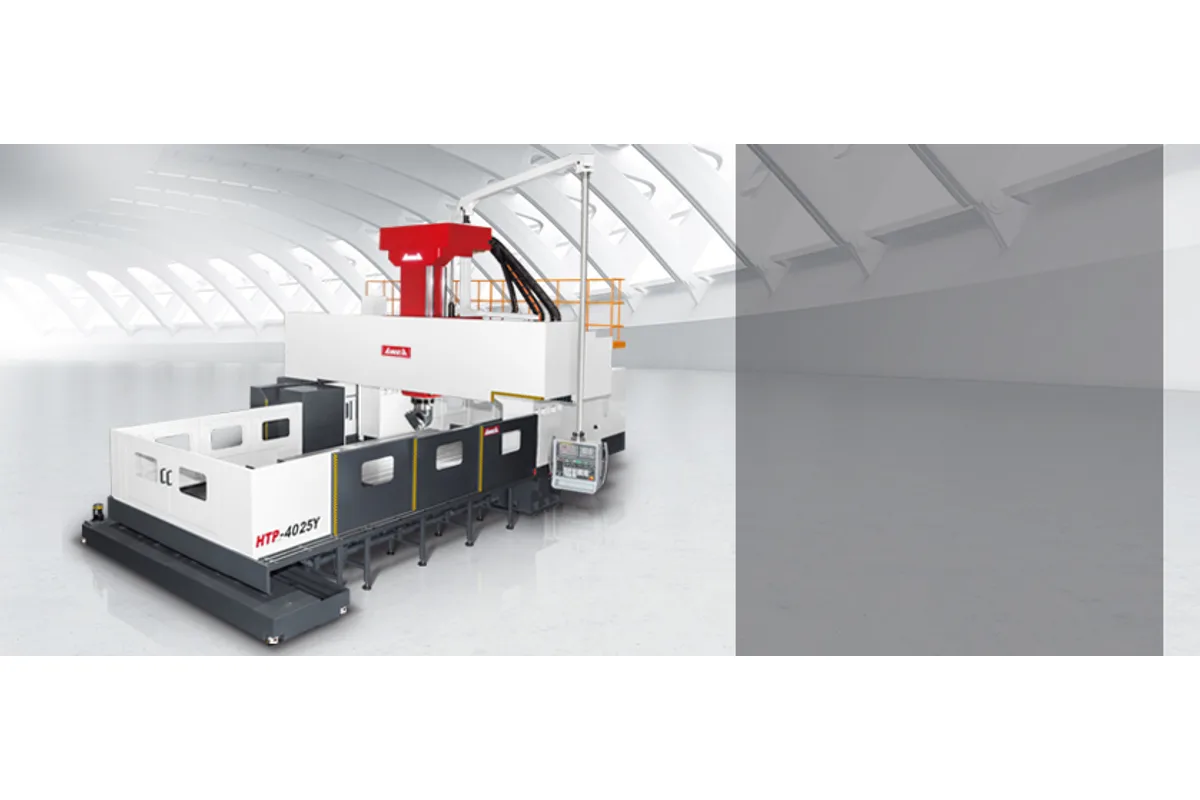

AWEA HTP-4025 bridge type machining center

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

4,020 x 2,400 mm (158.3 x 94.5 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

4,000 mm (157.5 in)

How much does the AWEA HTP-4025 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-4025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA HTP-4025 is the shortest and narrowest machine in the HTP bridge series: 4,000 mm (157.5 in) of X travel, 2,500 mm (98.4 in) of Y and 1,000 mm (39.4 in) of Z under a fixed cross beam, with 2,700 mm (106.3 in) between the columns. Its table measures 4,020 x 2,400 mm (158.3 x 94.5 in) and carries 15,000 kg (33,069 lb).

Being the shortest brings two measurable benefits. X rapid traverse is 15 m/min (591 ipm), the highest figure in the series, where the HTP-5025 drops to 10 m/min (394 ipm). The VDI figures are also the tightest AWEA prints for an HTP: P ≤ 0.030 mm over full travel and Ps ≤ 0.025 mm.

AWEA builds a second bridge machine with the same table and the same X and Y strokes, the LP-4025. What separates them is the head. The LP-4025 has 760 mm (29.9 in) of Z as standard, while the HTP-4025 starts at 1,000 mm and is built around a 4,000 rpm gear spindle with a BBT50 (ISO 50) taper and a 22 / 26 kW (29.5 / 34.9 hp) motor. AWEA describes a U-shaped saddle with four linear guideways and ten sliding blocks supporting the Z-axis, which is how the head keeps its support when it reaches down that far.

The machine weighs 41,000 kg (90,388 lb). A 32 T magazine is standard, tools may be 350 mm (13.8 in) long and 20 kg (44 lb), and the coolant tank holds 900 liter.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	2,500 mm (98.4 in) (Opt. 3,200)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	4,020 x 2,400 mm (158.3 x 94.5 in)
Max Table Load	15,000 kg (33,069 lb)
Distance Between Columns	2,700 mm (106.3 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	15 m/min (591 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 10 m/min (39 ~ 394 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.030 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.025 mm
Coolant Tank Capacity	900 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	41,000 kg (90,388 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

X rapid traverse of 15 m/min (591 ipm), the fastest in the HTP series and shared only with the HTP-4033 and HTP-4041
VDI positioning accuracy of P ≤ 0.030 mm over full travel with repeatability of Ps ≤ 0.025 mm
1,000 mm (39.4 in) of Z travel as standard, against 760 mm (29.9 in) on the LP-4025
BBT dual contact spindle, with taper and face both held against the tool holder
At 41,000 kg (90,388 lb) it is the lightest HTP, which eases the foundation and the lift

Limitations

The gear spindle tops out at 4,000 rpm, so small cutters and aluminium finishing run slowly
2,700 mm (106.3 in) between the columns; work wider than that needs the HTP-4033 at 3,500 mm (137.8 in)
Table load of 15,000 kg (33,069 lb) is the lowest in the series; the HTP-5025 carries 18,000 kg (39,683 lb)
The automatic head changer and the vertical / horizontal ATC system are optional upgrades

Best For

Heavy steel and cast iron milling on parts up to 4,000 mm (157.5 in) long Mould bases and die shoes within a 4,020 x 2,400 mm table Deep work that needs 1,000 mm (39.4 in) of Z Shops that want the tightest VDI figures of the HTP range

Frequently Asked Questions

01 How does the HTP-4025 differ from the LP-4025?

Both have 4,000 mm (157.5 in) of X, 2,500 mm (98.4 in) of Y, a 4,020 x 2,400 mm (158.3 x 94.5 in) table and a 15,000 kg (33,069 lb) table load. The LP-4025 lists 760 mm (29.9 in) of Z and weighs 40,000 kg (88,183 lb). The HTP-4025 lists 1,000 mm (39.4 in) of Z with a 4,000 rpm gear spindle and weighs 41,000 kg (90,388 lb).

02 What spindle does the HTP-4025 have?

A gear spindle running to 4,000 rpm with a BBT50 (ISO 50) taper and a 22 / 26 kW (29.5 / 34.9 hp) motor; the table also prints a 30 / 37 option. AWEA says the gear head uses a short, highly rigid transmission shaft meant for heavy cutting.

03 How accurate is the HTP-4025?

AWEA gives two sets of figures. Under JIS, positioning is ± 0.015 mm over full travel and repeatability is ± 0.003 mm. Under VDI, P ≤ 0.030 mm over full travel and Ps ≤ 0.025 mm. Feedback is a semi-closed loop system with encoders connected directly to the ball screws.

04 Can the Y and Z travels of the HTP-4025 be extended?

The specification table shows Y travel of 2,500 mm (98.4 in) with the note "Opt. 3,200" and Z travel of 1,000 mm (39.4 in) with "Opt. 1,200 / 1,400". The spindle nose to table distance is 200 ~ 1,200 mm (7.9 ~ 47.2 in) in the standard form.
