AWEA BM-1400II

Q: How much does the AWEA BM-1400II cost?

The price estimate for the AWEA BM-1400II is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-bm-1400ii#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

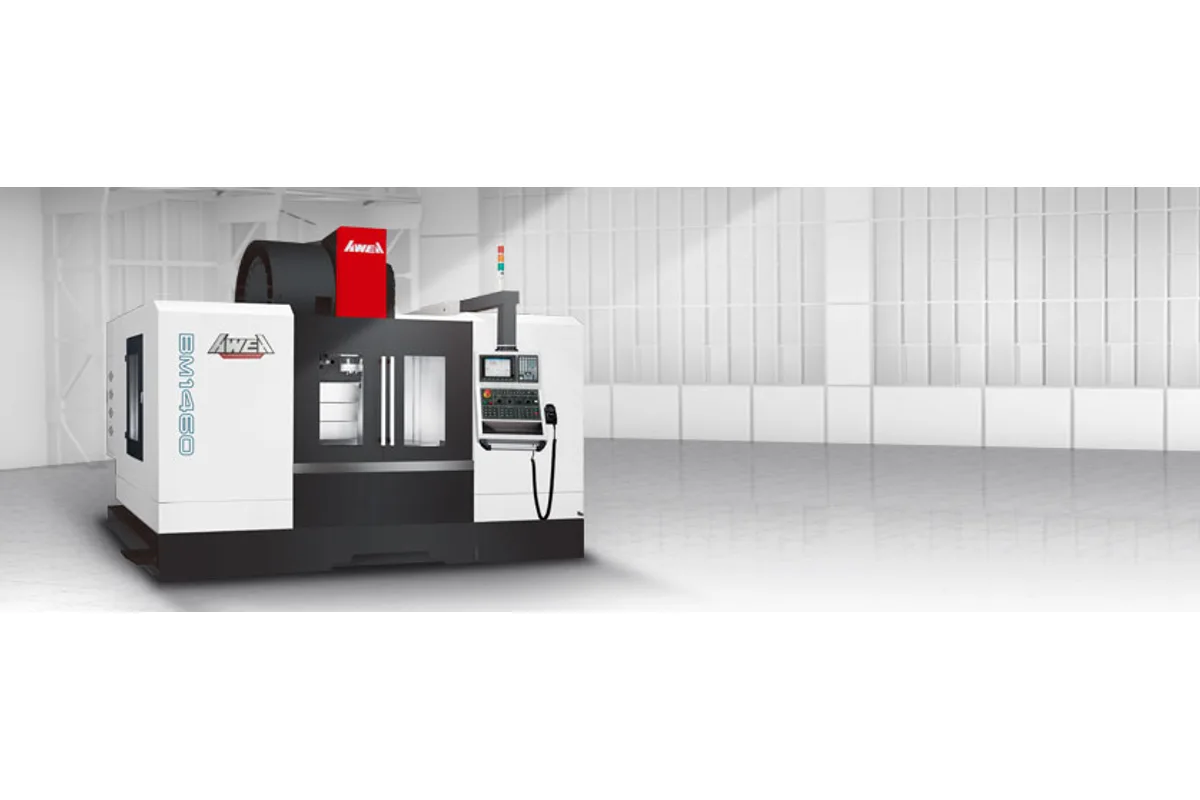

AWEA BM-1400II BM series vertical machining center (BM-1400II / BM-1500II (badged BM1460))

Image: awea.com, AWEA

Key Specifications

Max Spindle

Belt-drive 8,000 rpm

Spindle Taper

BT40 / BT50 (Opt.)

Tool Capacity

24 T

Table Size

1,500 x 650 mm (59.1 x 25.6 in)

Spindle Power

7.5 / 11 kW (10.1 / 14.8 hp)

Accuracy

0.008 mm

How much does the AWEA BM-1400II cost?

Price estimate

Uncertain

We do not have a price for the AWEA BM-1400II that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA BM-1400II gives 1,400 mm (55.1 in) of X travel on the narrow BM-II casting, with 650 mm (25.6 in) of Y and 610 mm (24.0 in) of Z. A 1,500 x 650 mm (59.1 x 25.6 in) table rated for 1,400 kg (3,086 lb) makes it the highest-capacity BM-II before the frame widens at the BM-1500II.

AWEA's range holds three machines with exactly this X stroke, and they serve different shops. The AF-1400II has the same travels and the same 8,100 kg (17,857 lb) weight but runs on linear guide ways with a 12,000 rpm spindle and a 1,000 kg (2,205 lb) table. The BM-1400 MAX keeps the box ways and adds a gear spindle, 800 mm (31.5 in) of Y and a weight of 13,000 kg (28,660 lb). The BM-1400II sits between them: box-way damping and a higher table load than the AF, without the mass and floor loading of the MAX.

Its spindle is the series' belt-drive 8,000 rpm unit with a 7.5 / 11 kW (10.1 / 14.8 hp) motor, BT40 or optional BT50. Feed figures are 30 m/min (1,181 ipm) for X and Y rapids, 24 m/min (945 ipm) for Z and 1 - 15 m/min (39 - 591 ipm) for cutting.

This is the last size on which Y-axis chip augers are listed as standard. The coolant tank holds 390 liter. Power requirement remains 25 kVA, unchanged from the smallest model, and the control is the FANUC Oi -MF Plus.

Full Specifications

Parameter	Value
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	650 mm (25.6 in)
Z Axis Travel	610 mm (24.0 in)
Table Size	1,500 x 650 mm (59.1 x 25.6 in)
Max Table Load	1,400 kg (3,086 lb)
Distance Spindle Center to Column	710 mm (28.0 in)
Distance Spindle Nose to Table	125 ~ 735 mm (4.9 ~ 28.9 in)
Spindle Taper	BT40 / BT50 (Opt.)
Spindle Motor Power	7.5 / 11 kW (10.1 / 14.8 hp)
Max Spindle Speed	Belt-drive 8,000 rpm
Rapid Traverse Xy	30 m/min (1,181 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Cutting Feed Rate	1 - 15 m/min (39 - 591 ipm)
Tool Capacity	24 T
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in)
Positioning Accuracy	0.008 mm
Repeatability	0.006 mm
CNC Control	FANUC Oi -MF Plus
Air Pressure Requirement	6 kg/cm²
Power Requirement	25 kVA
Coolant Tank Capacity	390 liter
Machine Weight	8,100 kg (17,857 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,400 kg (3,086 lb) table load, more than the 1,000 kg (2,205 lb) of the AF-1400II with the same travels
1,400 mm (55.1 in) of X travel on box ways
Y-axis chip augers standard, the largest BM-II size to have them listed
Same 25 kVA requirement as the smallest BM-II machine
8,100 kg (17,857 lb), well under the 13,000 kg (28,660 lb) of the BM-1400 MAX

Limitations

Y travel of 650 mm (25.6 in); the BM-1400 MAX gives 800 mm (31.5 in)
Belt-drive 8,000 rpm spindle with a 7.5 / 11 kW (10.1 / 14.8 hp) motor, not the gear spindle of the MAX models
Tool weight limit of 7 kg (15 lb), against 15 kg (33 lb) on the BM-1400 MAX
Rapids of 30 m/min (1,181 ipm), slower than the 48 m/min (1,890 ipm) AF-1400II

Best For

Long steel parts and weldments up to 1,400 kg (3,086 lb) Die shoes and plates about 1,400 x 650 mm Heavy milling on a moderate floor loading Shops choosing box ways over speed in this travel

Frequently Asked Questions

01 BM-1400II, BM-1400 MAX or AF-1400II: which AWEA 1,400 mm machine is which?

The BM-1400II is a box-way machine with 650 mm (25.6 in) of Y, an 8,000 rpm belt-drive spindle and a 1,400 kg (3,086 lb) table. The BM-1400 MAX has 800 mm (31.5 in) of Y, a 6,000 rpm gear spindle and weighs 13,000 kg (28,660 lb). The AF-1400II uses linear guide ways with a 12,000 rpm direct-drive spindle and 48 m/min (1,890 ipm) rapids.

02 What is the table size and load of the BM-1400II?

The table is 1,500 x 650 mm (59.1 x 25.6 in) and is rated for 1,400 kg (3,086 lb). AWEA describes a double ribbed table design intended to keep it from deforming under heavy loads over time.

03 What tools can the BM-1400II magazine take?

The 24-tool arm type magazine accepts tools up to 250 mm (9.8 in) long and 7 kg (15 lb). Diameter is limited to Ø75 mm with adjacent pockets occupied and Ø150 mm with them empty. A shortcut tool change function is standard, and an ultra fast tool exchange system is listed as an option.

04 How accurate is the BM-1400II?

AWEA lists positioning accuracy of 0.008 mm and repeatability of 0.006 mm under ISO230-2. The maker points to hand-scraped contact surfaces, dual-nut ball screws and directly coupled FANUC αi absolute servo motors as the basis for those figures.
