Accuway UV-75ATCC

Q: How much does the Accuway UV-75ATCC cost?

The price estimate for the Accuway UV-75ATCC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-uv-75atcc#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

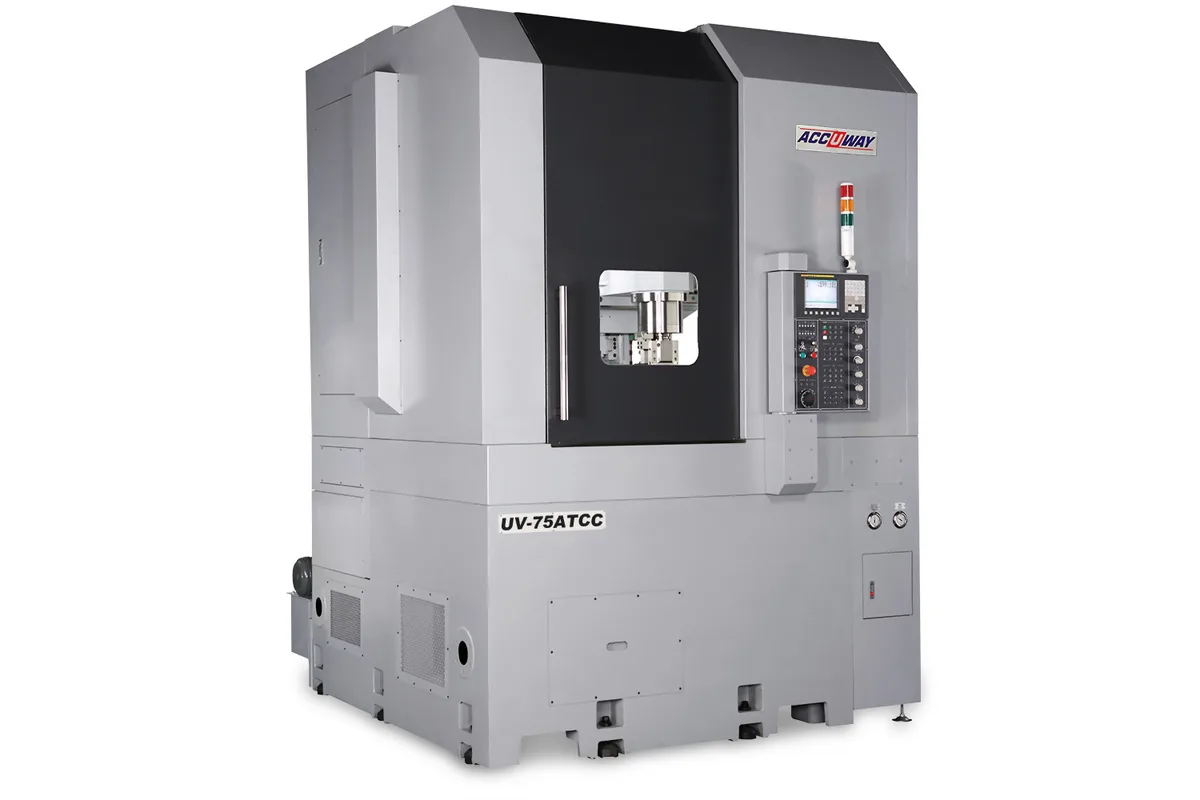

Accuway UV-75ATCC vertical turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

1,600 rpm

Tool Capacity

Spindle Power

Cont. / 30min: 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

800 mm (31.5 in)

control

FANUC 0i-T

swing over bed

850 mm (33.5 in)

How much does the Accuway UV-75ATCC cost?

Price estimate

Uncertain

We do not have a price for the Accuway UV-75ATCC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UV-75ATCC is a vertical turning center whose ram carries a driven tool spindle. The tool spindle section of its table lists a BT50 taper, 3,000 rpm, belt drive, a 100 mm (3.9 in) bearing diameter, a 5.5/7.5 kW (7.4/10.1 hp) motor and 105 N-m (77.4 lb-ft) of maximum torque. On the UV-75ATC the same section holds the taper alone.

So this is the model for turned parts that also need real milling. A 50-taper spindle with 105 N-m behind it drives face mills, large drills and taps that the rotary holders of a turret machine would not. The tools come from a 12-station magazine with servo-gear indexing and may be 400 mm (15.7 in) long and 50 kg (110 lb) each, within a 420 kg (926 lb) magazine load.

The turning side is unchanged from the rest of the 750 mm frame. Maximum turning diameter is 750 mm (29.5 in), turning length 800 mm (31.5 in), and the A2-11 work spindle runs to 1,600 rpm on 18.5/22 kW (24.8/29.5 hp) by belt. The chuck row reads 24 (32) in.

X and Z travels are 650 mm (25.6 in) and 800 mm (31.5 in). Twelve tools must cover both turning and milling, so tool lists need planning. The table shows no Y axis, which limits milling to what X, Z and the work spindle can position. Net weight is 16,500 kg (36,376 lb). No accessory list is published on the page.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	850 mm (33.5 in)
Max Turning Diameter	750 mm (29.5 in)
Max Turning Length	800 mm (31.5 in)
Guideway Type	Linear (Box way)
Spindle Nose	A2-11
Chuck Size	24 (32) in
Max Spindle Speed	1,600 rpm
Spindle Drive	Belt
Spindle Motor Power	Cont. / 30min: 18.5/22 kW (24.8/29.5 hp)
Tool Spindle Taper	BT50
Tool Spindle Speed	3,000 rpm
Tool Spindle Drive	Belt
Tool Spindle Bearing Diameter	100 mm (3.9 in)
Tool Spindle Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
Tool Spindle Torque	105 N-m (77.4 lb-ft)
X Axis Travel	650 mm (25.6 in)
Z Axis Travel	800 mm (31.5 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	7 m/min (276 in/min)
Magazine Indexing Type	Servo-gear
Tool Capacity	12
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	50 kg (110 lb)
Max Magazine Load	420 kg (926 lb)
Machine Dimensions	L x W x H: 2.7 x 3.7 x 4.0 m (106.3 x 145.7 x 157.5 in)
Machine Weight	16,500 kg (36,376 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Driven BT50 tool spindle: 3,000 rpm, 5.5/7.5 kW (7.4/10.1 hp), 105 N-m (77.4 lb-ft)
Turning and milling in one chucking on parts up to 750 mm (29.5 in)
12-station magazine for tools up to 400 mm (15.7 in) and 50 kg (110 lb)
100 mm (3.9 in) tool spindle bearing diameter

Limitations

Only 12 tools for both turning and milling
No Y axis in the spec table
Tool spindle speed tops out at 3,000 rpm
No standard or optional accessories are listed on the page

Best For

Housings and flanges needing face milling and drilling after turning Heavy drilling and tapping with BT50 tools on large chucked parts Deep boring with long bars Large parts where a second machine and a crane move can be avoided

Frequently Asked Questions

01 What is the tool spindle of the Accuway UV-75ATCC?

A BT50 spindle with belt drive, a maximum speed of 3,000 rpm, a 5.5/7.5 kW (7.4/10.1 hp) motor on continuous and 30 min ratings, a 100 mm (3.9 in) bearing diameter and 105 N-m (77.4 lb-ft) of maximum torque.

02 How is the UV-75ATCC different from the UV-75ATC?

The UV-75ATC table gives only the BT50 taper under the tool spindle heading and a net weight of 16,000 kg (35,273 lb). The UV-75ATCC adds speed, power, torque and bearing rows for a driven tool spindle and weighs 16,500 kg (36,376 lb). Turning capacity and travels are the same.

03 What turning capacity does the UV-75ATCC have?

750 mm (29.5 in) maximum turning diameter and 800 mm (31.5 in) maximum turning length, with an 850 mm (33.5 in) swing. The work spindle is A2-11, 1,600 rpm, 18.5/22 kW (24.8/29.5 hp), and the chuck row reads 24 (32) in.

04 How large can tools be on the UV-75ATCC?

Maximum tool length is 400 mm (15.7 in) and maximum tool weight is 50 kg (110 lb). The magazine has 12 stations and a maximum load of 420 kg (926 lb). The guideway type row reads Linear (Box way).
