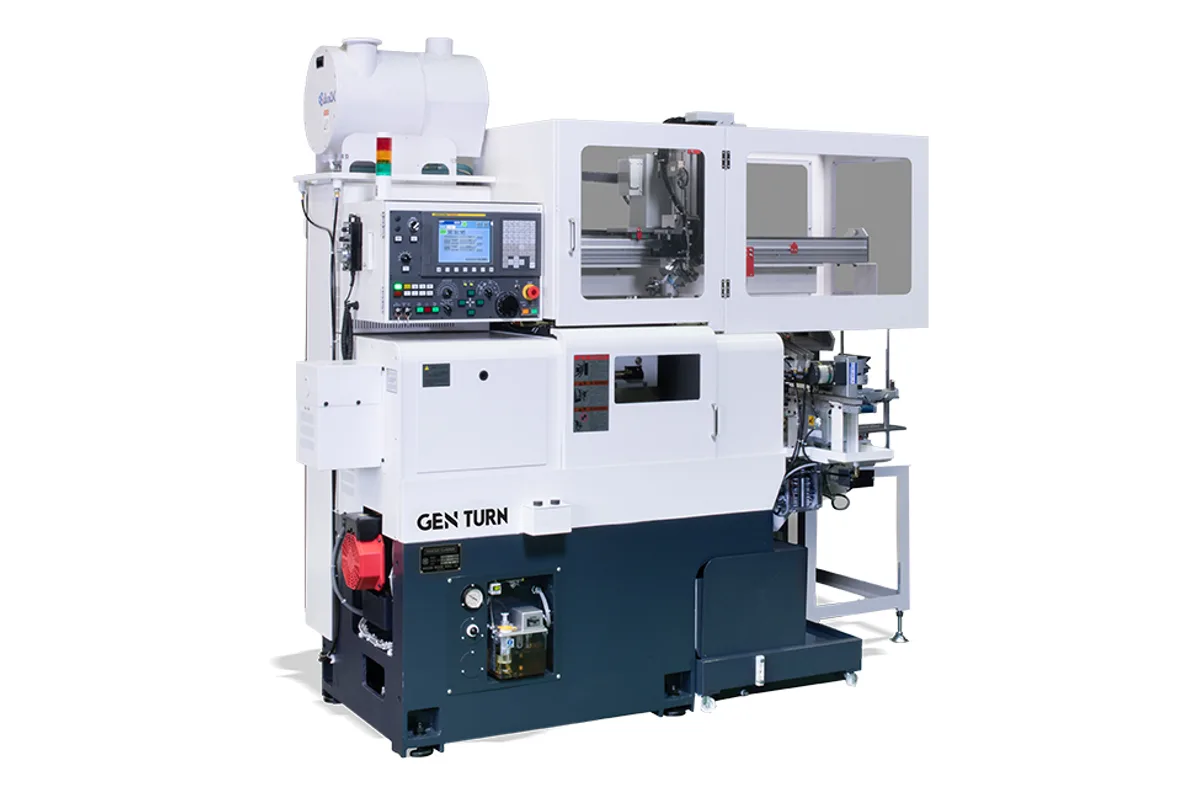

Ganesh GEN TURN C24-G

Q: How much does the Ganesh GEN TURN C24-G cost?

The price estimate for the Ganesh GEN TURN C24-G is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-c24-g#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

6,000 rpm

Rapid Traverse

468 ipm (12 m/min) X and Z

Spindle Power

7 HP 30-minute duty rated / 5 HP constant duty

max chucking diameter

5 in (125 mm)

max swing

10 in (250 mm)

bar capacity

1 in (25 mm)

How much does the Ganesh GEN TURN C24-G cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN C24-G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN TURN C24-G is a compact chucking lathe built around automation instead of size: a 5C collet chuck, an 8-station turret and a gantry loader that Expand Machinery describes as built in, with either 2 or 3 axes. The maker calls it ideal for high production of fasteners, and the figures agree. X travel is 3.937 in (100 mm), Z travel 9.448 in (240 mm), and bar capacity through the A2-4 spindle is 1 in (25 mm).

Small blanks are the point. Maximum chucking diameter is 5 in (125 mm) under a 10 in (250 mm) swing, and the spindle runs to 6,000 rpm on a motor rated 7 HP on the 30-minute duty rating and 5 HP constant duty. The hydraulic octagonal turret indexes in 0.8 second, and the machine is also available with gang tooling in place of the turret. A hydraulic tailstock with 4 in (100 mm) of stroke is in the table, which helps with slender headed parts.

For feeding blanks, the specification lists an optional part loader with 12 rotary stacking stations and a lifter station. It takes workpieces from 3/8 in (10 mm) to 3.15 in (80 mm) in diameter, at least 2.0 mm thick, with a total pallet weight of 100 lb (45 kg). Bowl feeders are a further option for loose parts such as screw blanks.

The whole machine weighs 3,087 lb (1,400 kg) and occupies 55 x 40 x 64 in (1,390 x 1,000 x 1,625 mm), so it fits where a bar-fed twin-spindle machine would not. Control is Fanuc. The listed specification shows no live tooling, no sub-spindle and no Y axis: the machine turns, faces, drills on center and threads, then hands the part back to the gantry.

Full Specifications

Parameter	Value
Max Chucking Diameter	5 in (125 mm)
Max Swing	10 in (250 mm)
Bar Capacity	1 in (25 mm)
Spindle Nose	A2-4
Spindle Bore	35 mm (1.37 in) through hole
Max Spindle Speed	6,000 rpm
Spindle Motor Power	7 HP 30-minute duty rated / 5 HP constant duty
Turret Stations	8-station hydraulic-driven octagonal tool turret (available as a gang tool machine)
Tool Index Time	0.8 second
Tailstock Stroke	4 in (100 mm), hydraulic driven
X Axis Travel	3.937 in (100 mm)
Z Axis Travel	9.448 in (240 mm)
Rapid Traverse Rate	468 ipm (12 m/min) X and Z
Axis Motor Power	0.66 HP / 1.0 HP (0.5 kW / 0.75 kW) X and Z
Machine Weight	3,087 lb (1,400 kg)
Machine Dimensions	55 x 40 x 64 in (1,390 x 1,000 x 1,625 mm) W x D x H
Power Requirement	220 VAC ±5%, 3-phase
Air Requirement	0.4 - 0.5 MPa, filtered and lubricated, 150 L/min
Workpiece Loader	12 rotary stacking loading stations and a lifter station (optional part loader)
Loader Workpiece Size	3/8 in (10 mm) minimum diameter, 3.15 in (80 mm) maximum diameter, 2.0 mm thickness or more
Loader Pallet Weight	100 lb (45 kg) total pallet weight
CNC Control	Fanuc CNC control

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

Gantry loader is built in, in a 2-axis or 3-axis version, so the machine arrives automated
8-station hydraulic turret indexes in 0.8 second; a gang-tool version is also available
6,000 rpm spindle with a built-in 5C collet chuck and 1 in (25 mm) bar capacity
Small footprint of 55 x 40 x 64 in (1,390 x 1,000 x 1,625 mm) at 3,087 lb (1,400 kg)
Hydraulic tailstock with 4 in (100 mm) of stroke

Limitations

X travel is only 3.937 in (100 mm) and maximum chucking diameter 5 in (125 mm)
Rapids of 468 ipm (12 m/min) are slow next to the 787 ipm (20 m/min) of the GEN TURN 32-GT
The stacking part loader in the table is marked optional, and bowl feeders are optional too
Spindle motor is 5 HP on the constant-duty rating

Best For

High-volume fastener and small chucker work Blanks from 3/8 in (10 mm) to 3.15 in (80 mm) in diameter fed by the stacking loader Unattended second operations on parts within a 5 in (125 mm) chucking diameter Cells where floor space is tight

Frequently Asked Questions

01 What kind of machine is the GEN TURN C24-G?

A small CNC turning center with a built-in 5C collet chuck, an 8-station hydraulic turret and a built-in gantry loader with 2 or 3 axes. Travels are 3.937 in (100 mm) in X and 9.448 in (240 mm) in Z. Expand Machinery describes it as ideal for high production of fasteners, and it is also available as a gang-tool machine.

02 What part sizes can the loader handle?

The optional part loader has 12 rotary stacking loading stations and a lifter station. It accepts workpieces from 3/8 in (10 mm) to 3.15 in (80 mm) in diameter with a thickness of 2.0 mm or more, and the total pallet weight is 100 lb (45 kg). Bowl feeders are listed as a separate option.

03 How fast and how powerful is the spindle?

Maximum spindle speed is 6,000 rpm. The motor is rated 7 HP on the 30-minute duty rating and 5 HP constant duty. The spindle nose is A2-4 with a 35 mm (1.37 in) through hole, and bar capacity is 1 in (25 mm).

04 What does the C24-G need for installation?

Power is 220 VAC ±5%, 3-phase. Air must be filtered and lubricated at 0.4 - 0.5 MPa with a flow of 150 L/min. The machine measures 55 x 40 x 64 in (1,390 x 1,000 x 1,625 mm) and weighs 3,087 lb (1,400 kg).
