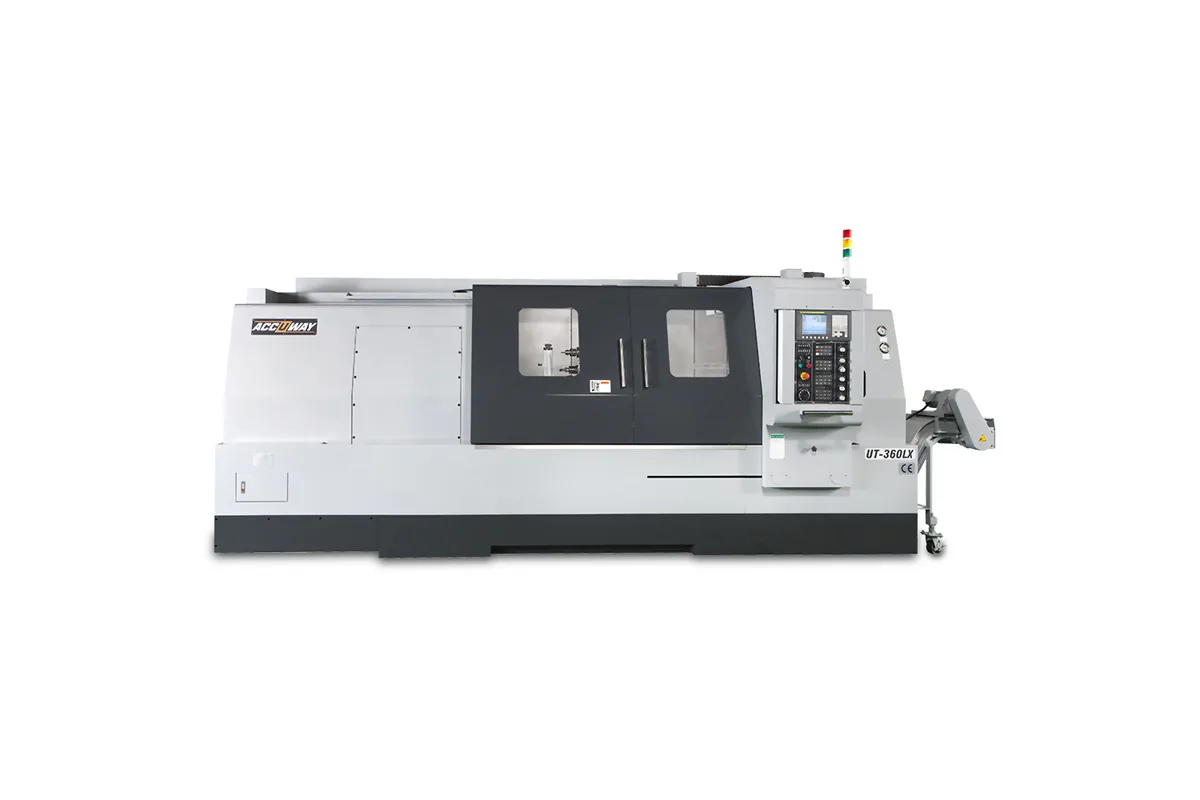

Accuway UT-360LX
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-360LX cost?
Price estimate
We do not have a price for the Accuway UT-360LX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-360LX turns heavy work up to 1,630 mm (64.2 in) long. Z travel is 1,750 mm (68.9 in), the turning diameter 540 mm (21.3 in), and the machine weighs 8,000 kg (17,637 lb).
Place it beside the UT-300LX and the two look alike from outside; the dimension rows are identical at 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in). Inside the enclosure they differ. The UT-300LX has a 15/18.5 kW (20.1/24.8 hp) spindle and a 110 mm (4.3 in) tailstock quill; the UT-360LX has 18.5/22 kW (24.8/29.5 hp) and a 120 mm (4.7 in) MT#6 quill. Swing over saddle is 600 mm (23.6 in), which decides whether a shaft with a large flange in the middle can be turned at all.
In the A2-11 columns turning length is 1,550 mm (61.0 in). Rapid traverse is 20 m/min (787 in/min) in both X and Z.
Roughing a long forging loads the tailstock and the turret as much as the spindle. The UT-360LX answers with 32 mm (1.3 in) square tool shanks, a tailstock body that travels 1,540 mm (60.6 in), and an option list that includes a steady rest and a gear box. A larger A2-15 spindle headstock and 166 mm bar capacity is optional too, for pipe that will not pass the tabled 116.5 mm (4.6 in) bore. The standard turret is BOT with 12 stations; the APT 50 power turret is an option.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 750 mm (29.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 540 mm (21.3 in) |
| Max Turning Length | 1,630 / 1,550 / 1,550 mm (64.2 / 61.0 / 61.0 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 |
| Chuck Size | 12 / 15 / 15 in |
| Bar Capacity | 90 / 105 / 116.5 mm (3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 1,750 mm (68.9 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 1,540 mm (60.6 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,630 mm (64.2 in) turning length at 540 mm (21.3 in) diameter
- 8,000 kg (17,637 lb) machine with an 18.5/22 kW (24.8/29.5 hp) spindle
- 600 mm (23.6 in) swing over saddle
- Tailstock body travel of 1,540 mm (60.6 in), MT#6 quill
- Optional steady rest, gear box and A2-15 spindle headstock
Limitations
- Spindle speed limited to 2,700 rpm
- Rotary tools only through the optional APT 50 power turret
- No bar feeder or loader interface on the option list
- 5.2 m of length to accommodate
Best For
Frequently Asked Questions
01
Maximum turning length is 1,630 mm (64.2 in) with the A2-8 spindle nose and 1,550 mm (61.0 in) with the A2-11 noses. Z-axis travel is 1,750 mm (68.9 in), and the tailstock body travels 1,540 mm (60.6 in).
02
Externally, yes: both are listed at 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in). The UT-360LX weighs 8,000 kg (17,637 lb) and turns 540 mm (21.3 in); the UT-300LX weighs 7,500 kg (16,534 lb) and turns 500 mm (19.7 in).
03
For shaft work, the steady rest and the gear box. For large tube, the A2-15 spindle headstock and 166 mm bar capacity. For milling, the APT 50 power turret + CS contouring control or CF Axis Control. All are on the optional accessories list.
04
Body travel 1,540 mm (60.6 in), quill travel 120 mm (4.7 in), quill diameter 120 mm (4.7 in) and an MT#6 quill taper. That is a larger quill than the 110 mm (4.3 in) MT#5 one on the UT-300LX.
