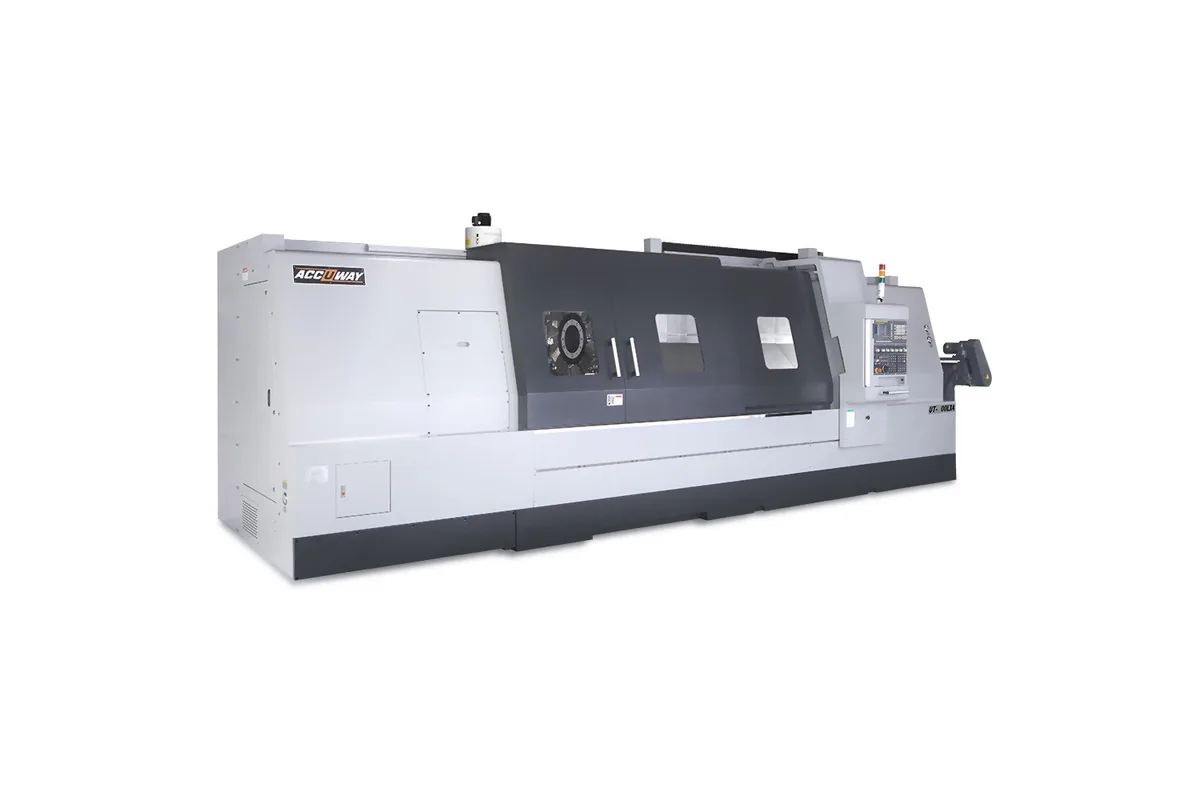

Accuway UT-600LX4
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-600LX4 cost?
Price estimate
We do not have a price for the Accuway UT-600LX4 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-600LX4 is the top of the UT range: 900 mm (35.4 in) of turning diameter, 3,950 mm (155.5 in) of turning length and 21,000 kg (46,296 lb) of machine.
Z travel is 4,100 mm (161.4 in). X travel is 470 mm (18.5 in), a little shorter than the 495 mm (19.5 in) of the UT-600LX3 and the other beds in the series; the page gives no reason. Turning length and tailstock body travel are printed as the same figure, 3,950 mm (155.5 in).
Very few shops need this envelope every day. Those that do, in steel mills, shipyards, oilfield supply and heavy repair, usually have parts that weigh tonnes and take hours per operation. For that kind of work the 6 m/min (236 in/min) Z rapid is of little consequence. A secure setup matters more: a 160 mm (6.3 in) quill on an MT#6 centre, box guideways, and a steady rest from the option list.
The headstock is offered in five sizes. A2-15 noses carry the three smaller chucks with bores of 205 mm (8.1 in), 235 mm (9.3 in) or 258 mm (10.2 in). A2-20 noses carry a 32 in chuck with a 320 mm (12.6 in) or 375 mm (14.8 in) bore, at 400 rpm and 300 rpm. Power is 30/37 kW (40.2/49.6 hp) through a 2-step gearbox. The outline is 9 x 2.9 x 3 m (354.3 x 114.2 x 118.1 in), and the control is a FANUC 0i-T.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,030 mm (40.6 in) |
| Swing Over Saddle | 950 mm (37.4 in) |
| Max Turning Diameter | 900 mm (35.4 in) |
| Max Turning Length | 3,950 mm (155.5 in) |
| Guideway Type | Box |
| Spindle Nose | A2-15 / A2-15 / A2-15 / A2-20 / A2-20 |
| Chuck Size | 20 / 20 / 24 / 32 / 32 in |
| Spindle Bore | 205 / 235 / 258 / 320 / 375 mm (8.1 / 9.3 / 10.2 / 12.6 / 14.8 in) |
| Max Spindle Speed | 1,500 / 850 / 800 / 400 / 300 rpm |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox |
| X Axis Travel | 470 mm (18.5 in) |
| Z Axis Travel | 4,100 mm (161.4 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 6 m/min (236 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 3,950 mm (155.5 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 160 mm (6.3 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 9 x 2.9 x 3 m (354.3 x 114.2 x 118.1 in) |
| Machine Weight | 21,000 kg (46,296 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,950 mm (155.5 in) turning length at 900 mm (35.4 in) diameter
- 21,000 kg (46,296 lb) machine on box guideways
- 32 in chuck and 375 mm (14.8 in) bore in the largest column
- Tailstock body travel of 3,950 mm (155.5 in)
- Standard gear box on a 30/37 kW (40.2/49.6 hp) motor
Limitations
- Z rapid traverse of 6 m/min (236 in/min)
- X travel of 470 mm (18.5 in), less than the shorter UT-600 beds
- 9 m long and 3 m high, with crane loading over the full bed
- Steady rest must be ordered as an option
Best For
Frequently Asked Questions
01
Maximum turning diameter 900 mm (35.4 in), maximum turning length 3,950 mm (155.5 in), swing over bed 1,030 mm (40.6 in), swing over saddle 950 mm (37.4 in), X travel 470 mm (18.5 in) and Z travel 4,100 mm (161.4 in).
02
The UT-400LX4 turns 700 mm (27.6 in), weighs 19,000 kg (41,887 lb) and offers bores up to 258 mm (10.2 in). The UT-600LX4 turns 900 mm (35.4 in), weighs 21,000 kg (46,296 lb) and offers bores up to 375 mm (14.8 in). Both have 4,100 mm (161.4 in) of Z travel.
03
X rapid traverse is 20 m/min (787 in/min) and Z rapid traverse 6 m/min (236 in/min). Spindle speed ranges from 1,500 rpm in the first column down to 300 rpm in the fifth.
04
The machine itself is 9 x 2.9 x 3 m (354.3 x 114.2 x 118.1 in) and weighs 21,000 kg (46,296 lb). Loading a part close to four metres long needs crane coverage over the whole bed as well.
