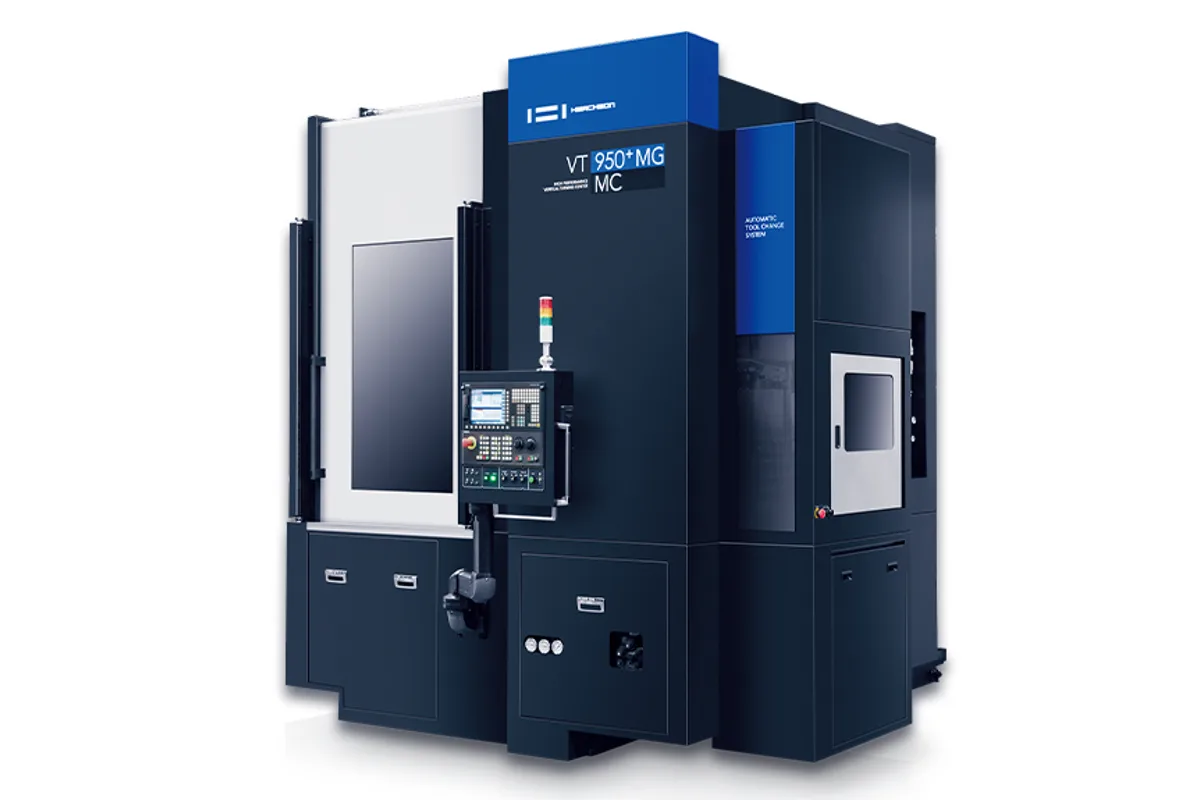

Hwacheon VT-950+

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

1,125 rpm (opt. 1: 1,500 rpm / opt. 2: 1,125 rpm / opt. 3: 800 rpm)

Rapid Traverse

24 / 24 m/min (945 / 945 ipm) (X / Z)

Spindle Power

30 / 22 kW (40.2 / 29.5 hp) (opt. 45 / 37 kW (60.3 / 49.6 hp))

Max Turn Length

850 mm (33.5 in)

variants

VT-950+, VT-950+ MG, VT-950+ MC, VT-950+ MG / MC

swing over bed

Ø1,100 mm (Ø43.3 in)

How much does the Hwacheon VT-950+ cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon VT-950+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon VT-950+ is a mid-size vertical turning center for parts up to Ø950 mm (Ø37.4 in) and 850 mm (33.5 in) high, on a 24 in chuck with a 32 in option. Swing over the bed is Ø1,100 mm (Ø43.3 in). It is built in four forms: the turret machine, the VT-950+ MG with a 16-tool magazine, the VT-950+ MC with driven tools, and the VT-950+ MG / MC with both.

The headstock is where it parts company with the A2-11 nosed VT-650. The spindle nose is a Ø380 flat type rather than an A2 nose, the front bearing is Ø240 mm (Ø9.4 in), and the motor is 30 / 22 kW (40.2 / 29.5 hp) as standard or 45 / 37 kW (60.3 / 49.6 hp) as an option. Standard speed is 1,125 rpm. The spindle options are listed as 1,500 rpm (opt. 1), 1,125 rpm (opt. 2) and 800 rpm (opt. 3), so a buyer can trade speed for torque at the order stage; confirm which option pairs with which motor when quoting.

The turret has 12 stations, or 10 plus the 16-tool magazine on MG versions, takes □32 mm shanks and Ø60 mm boring bars, and indexes in 0.18 s/step. X travel is 505 mm (19.9 in) and Z travel 850 mm (33.5 in), both with 24 m/min (945 ipm) rapids. On MC versions the driven tools are rated 7.5 / 5.5 kW (10.1 / 7.4 hp), 11 / 7.5 kW (14.8 / 10.1 hp) as an option, at up to 3,000 rpm, with Ø32 mm drilling and M24 tapping.

Against the VT-650, which turns Ø800 mm (Ø31.5 in) by 750 mm (29.5 in) with 22 / 18.5 kW (29.5 / 24.8 hp), the VT-950+ adds diameter, height and a larger motor. It needs 85 kVA, holds 266 L of coolant, stands 3,320 mm (130.7 in) tall on 2,620 x 3,598 mm (103.1 x 141.7 in) of floor (3,100 x 3,598 mm with MG) and weighs 15,000 kgf (33,069 lb) to 16,100 kgf (35,494 lb) depending on version.

Full Specifications

Parameter	Value
Variants	VT-950+, VT-950+ MG, VT-950+ MC, VT-950+ MG / MC
Swing Over Bed	Ø1,100 mm (Ø43.3 in)
Max Turning Diameter	Ø950 mm (Ø37.4 in)
Standard Turning Diameter	Ø700 mm (Ø27.6 in)
Max Turning Length	850 mm (33.5 in)
Chuck Size	24 in (opt. 32 in)
Spindle Nose	Ø380 flat
Max Spindle Speed	1,125 rpm (opt. 1: 1,500 rpm / opt. 2: 1,125 rpm / opt. 3: 800 rpm)
Spindle Bearing Diameter	Ø240 mm (Ø9.4 in) (front)
Spindle Motor Power	30 / 22 kW (40.2 / 29.5 hp) (opt. 45 / 37 kW (60.3 / 49.6 hp))
Turret Stations	12; MG versions: 10 + 16-tool magazine
Turret Tool Size	□32 x Ø60 mm (OD x boring bar)
Turret Index Time	0.18 s/step
X Axis Travel	505 mm (19.9 in)
Z Axis Travel	850 mm (33.5 in)
Rapid Traverse Rate	24 / 24 m/min (945 / 945 ipm) (X / Z)
Live Tool Power	MC: 7.5 / 5.5 kW (10.1 / 7.4 hp) (opt. 11 / 7.5 kW (14.8 / 10.1 hp))
Live Tool Speed Max	MC: 3,000 rpm
Drilling Tapping Capacity	MC: Ø32 mm / M24
C Axis Indexing	MC: 0.0001°
Power Requirement	85 kVA
Coolant Tank Capacity	266 L
Machine Height	3,320 mm (130.7 in)
Machine Dimensions	2,620 x 3,598 mm (103.1 x 141.7 in) (L x W); MG: 3,100 x 3,598 mm (122.0 x 141.7 in)
Machine Weight	15,000 kgf (33,069 lb); MG: 16,000 kgf (35,274 lb); MC: 15,100 kgf (33,289 lb); MG / MC: 16,100 kgf (35,494 lb)
CNC Control	Fanuc 0i-TF Plus

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

30 / 22 kW (40.2 / 29.5 hp) spindle as standard, 45 / 37 kW (60.3 / 49.6 hp) as an option
Ø950 mm (Ø37.4 in) by 850 mm (33.5 in) turning envelope with a 24 in chuck, 32 in optional
Rapids of 24 / 24 m/min (945 / 945 ipm) on X and Z
MC driven tools of 7.5 / 5.5 kW (10.1 / 7.4 hp) for Ø32 mm drilling and M24 tapping
Turret indexes in 0.18 s/step; MG versions add a 16-tool magazine
Spindle speed options of 1,500 rpm (opt. 1) and 800 rpm (opt. 3) besides the standard 1,125 rpm

Limitations

Standard top speed is 1,125 rpm, low for the smaller diameters on a part
The MG magazine cuts the turret from 12 to 10 stations
No Y axis is listed for any VT-950+ version
Needs 85 kVA and a floor for up to 16,100 kgf (35,494 lb)

Best For

Chucked parts up to Ø950 mm (Ø37.4 in) and 850 mm (33.5 in) high Heavier roughing with the 45 / 37 kW (60.3 / 49.6 hp) motor option Turned parts with axial or radial holes up to Ø32 mm, on MC versions Jobs needing more than 10 tools, using the MG magazine

Frequently Asked Questions

01 What spindle options does the VT-950+ have?

The standard spindle runs to 1,125 rpm with 30 / 22 kW (40.2 / 29.5 hp). The table lists speed options of 1,500 rpm (opt. 1), 1,125 rpm (opt. 2) and 800 rpm (opt. 3), and a 45 / 37 kW (60.3 / 49.6 hp) motor option. The nose is a Ø380 flat type with a Ø240 mm (Ø9.4 in) front bearing.

02 How does the VT-950+ compare with the VT-1150+?

The VT-1150+ turns Ø1,150 mm (Ø45.3 in) by 950 mm (37.4 in) on a 40 in chuck with a Ø520 flat nose and 55 / 45 kW (73.8 / 60.3 hp), but runs to 630 rpm and weighs 24,500 kgf (54,013 lb). The VT-950+ is smaller and faster, Ø950 mm (Ø37.4 in) at 1,125 rpm, and weighs 15,000 kgf (33,069 lb).

03 What do the MG and MC versions add?

MG adds a 16-tool magazine alongside a 10-station turret and lengthens the footprint from 2,620 mm to 3,100 mm. MC adds driven tools of 7.5 / 5.5 kW (10.1 / 7.4 hp), 11 / 7.5 kW optional, at up to 3,000 rpm, with Ø32 mm / M24 capacity and 0.0001° C-axis indexing. MG / MC combines both.

04 How much does each VT-950+ version weigh?

15,000 kgf (33,069 lb) for the turret machine, 15,100 kgf (33,289 lb) for the MC, 16,000 kgf (35,274 lb) for the MG and 16,100 kgf (35,494 lb) for the MG / MC. All need an 85 kVA supply and 3,320 mm (130.7 in) of height.
