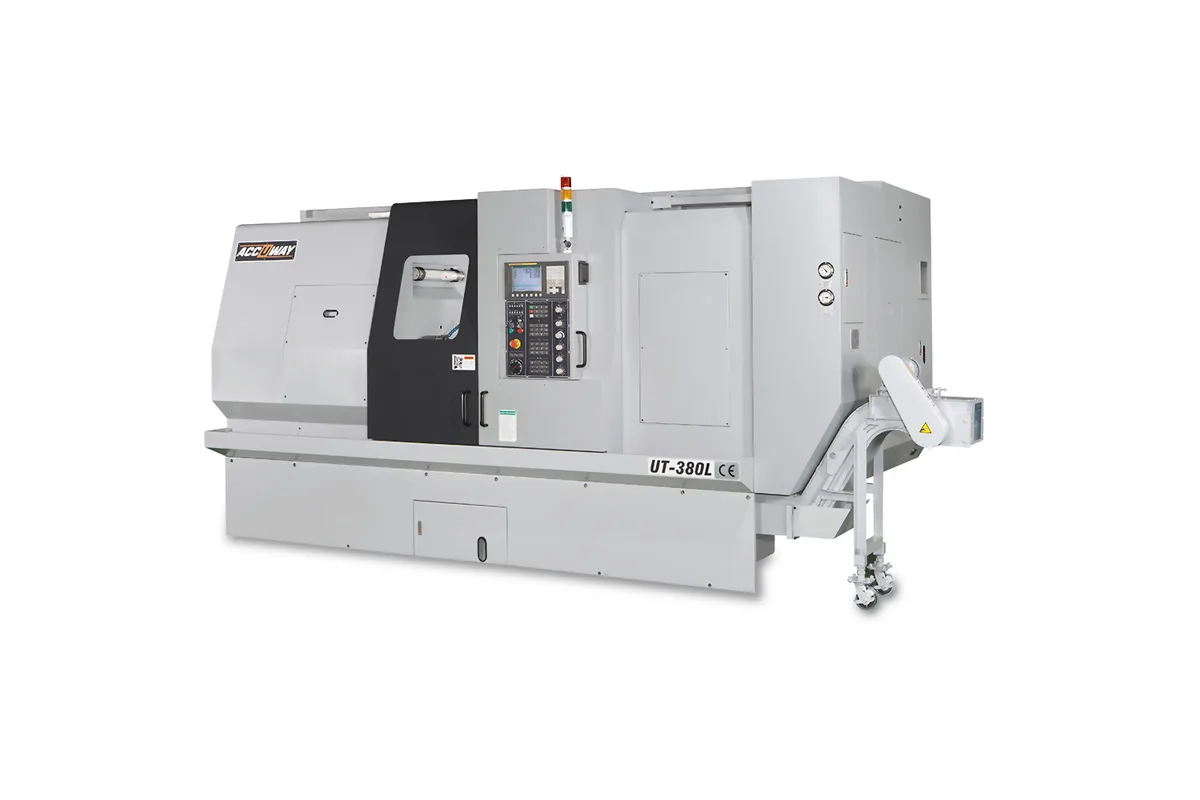

Accuway UT-380L
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-380L cost?
Price estimate
We do not have a price for the Accuway UT-380L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-380L offers a 680 mm (26.8 in) turning diameter along 1,250 mm (49.2 in) of Z travel. In the series it is the general-purpose length: long enough for a metre of shaft, short enough that Z still rapids at 20 m/min (787 in/min).
A feature buyers of big-bore lathes look for is on the table, not on the option list. The fourth spindle column gives an A2-15 nose, an 18 in chuck and 166.5 mm (6.6 in) of bar capacity at 1,800 rpm. Oil-country tube and thick-walled pipe pass through that bore, and the gear box that comes as a standard accessory supplies torque for threading them at low speed.
Turning length depends strongly on the column chosen: 1,130 mm (44.5 in) with A2-8, 1,050 mm (41.3 in) with A2-11 and 990 mm (39.0 in) with A2-15. Tailstock body travel is 1,040 mm (40.9 in).
Machine weight is 7,500 kg (16,534 lb). That is a moderate step from the UT-380 at 6,500 kg (14,330 lb), and far less than the jump to the next bed, the UT-380LX at 11,200 kg (24,691 lb). So the L is the last UT-380 that installs like a mid-size lathe. The turret is the BOT 12-station type with Hydraulic/Servo drive; a servo turret and an APT 50 power turret are optional.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Swing Over Saddle | 700 mm (27.6 in) |
| Max Turning Diameter | 680 mm (26.8 in) |
| Max Turning Length | 1,130 / 1,050 / 1,050 / 990 mm (44.5 / 41.3 / 41.3 / 39.0 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 / A2-15 |
| Chuck Size | 12 / 15 / 15 / 18 in |
| Bar Capacity | 90 / 105 / 116.5 / 166.5 mm (3.5 / 4.1 / 4.6 / 6.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 / 1,800 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) + 2-step gearbox |
| X Axis Travel | 370 mm (14.6 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 4.5 x 2.3 x 2.2 m (177.2 x 90.6 x 86.6 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 680 mm (26.8 in) turning diameter with 1,130 mm (44.5 in) of turning length
- A2-15 column with 166.5 mm (6.6 in) bar capacity in the table
- Gear box included as a standard accessory
- Z rapid traverse of 20 m/min (787 in/min)
- 7,500 kg (16,534 lb), far lighter than the next bed length
Limitations
- Turning length falls to 990 mm (39.0 in) with the A2-15 spindle
- Largest spindle runs at 1,800 rpm
- Rotary tools need the optional APT 50 power turret
- Steady rest is an optional accessory
Best For
Frequently Asked Questions
01
Up to 680 mm (26.8 in) in diameter. Length is 1,130 mm (44.5 in) in the A2-8 column, 1,050 mm (41.3 in) in the two A2-11 columns and 990 mm (39.0 in) in the A2-15 column. Swing over saddle is 700 mm (27.6 in).
02
166.5 mm (6.6 in), in the column with the A2-15 spindle nose and 18 in chuck. Maximum spindle speed in that column is 1,800 rpm. The smaller columns pass 90 mm (3.5 in), 105 mm (4.1 in) and 116.5 mm (4.6 in).
03
The UT-360L turns 540 mm (21.3 in), has three spindle columns up to A2-11 and weighs 7,000 kg (15,432 lb). The UT-380L turns 680 mm (26.8 in), adds the A2-15 column, has a standard gear box and weighs 7,500 kg (16,534 lb).
04
Dimensions are 4.5 x 2.3 x 2.2 m (177.2 x 90.6 x 86.6 in) as length, width and height, and the net weight is 7,500 kg (16,534 lb). A transformer and a CE version are listed among the optional accessories.
