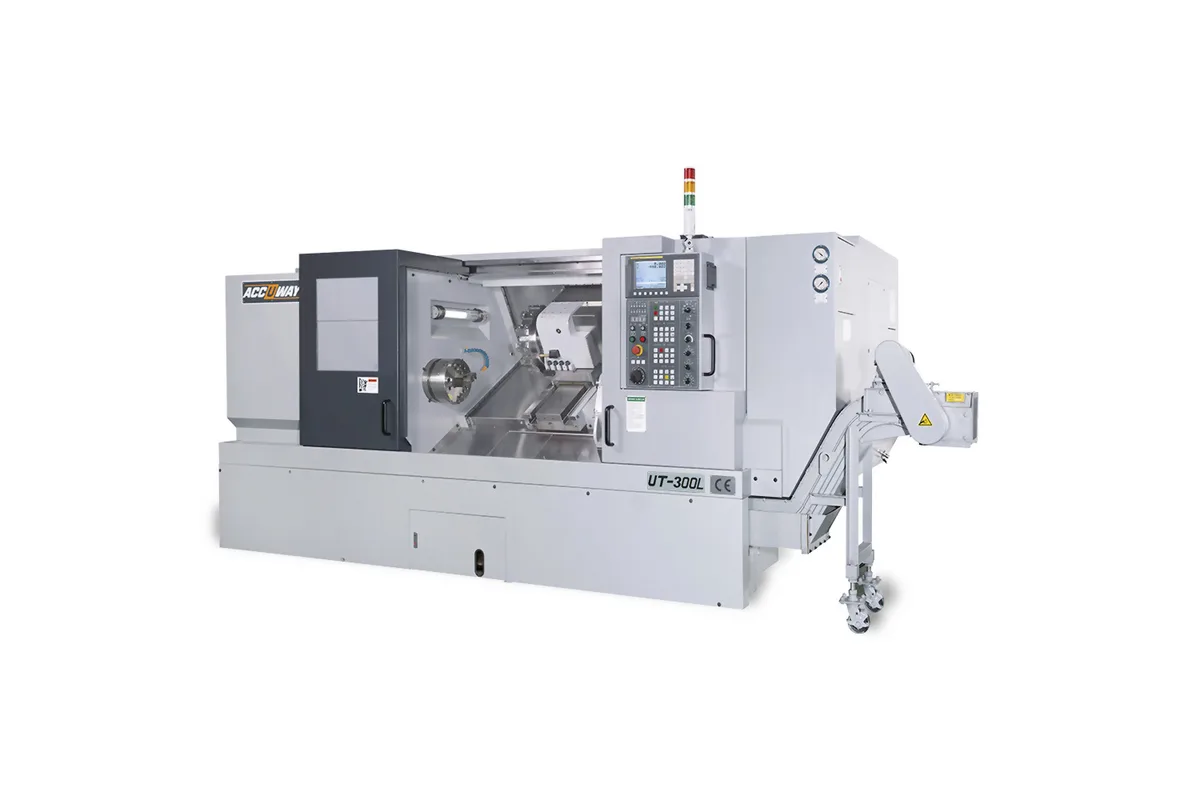

Accuway UT-300L
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300L cost?
Price estimate
We do not have a price for the Accuway UT-300L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A shaft lathe for work around a metre long, the Accuway UT-300L stretches the UT-300 to 1,250 mm (49.2 in) of Z travel. Maximum turning length is 1,180 mm (46.5 in) in the A2-8 spindle columns and 1,100 mm (43.3 in) in the A2-11 columns, at a turning diameter of 500 mm (19.7 in).
The longer bed brings the weight to 6,000 kg (13,228 lb), against 5,500 kg (12,125 lb) for the UT-300, and the footprint grows to 4 x 1.8 x 1.8 m (157.5 x 70.9 x 70.9 in). Z rapid traverse stays at 24 m/min (945 in/min), which matters on a bed this long because the turret spends more of each cycle travelling. The two longer beds above it are slower: the UT-300LX2 rapids at 15 m/min (591 in/min) in Z.
Shaft work depends on the tailstock, and here its body travels 1,040 mm (40.9 in). The quill is 110 mm (4.3 in) in diameter with an MT#5 taper and 120 mm (4.7 in) of stroke. No steady rest appears on this model's option list, so slender shafts near the full length need some thought about deflection.
This is the plain two-axis version with a 12-station BOT turret taking 25 mm (1.0 in) square and 40 mm (1.6 in) round shanks. Spindle power is 15/18.5 kW (20.1/24.8 hp), and the largest bore passes a 116.5 mm (4.6 in) bar at 2,000 rpm.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 500 mm (19.7 in) |
| Max Turning Length | 1,180 / 1,180 / 1,100 / 1,100 mm (46.5 / 46.5 / 43.3 / 43.3 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 4 x 1.8 x 1.8 m (157.5 x 70.9 x 70.9 in) |
| Machine Weight | 6,000 kg (13,228 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,180 mm (46.5 in) turning length with an A2-8 spindle
- Z rapid traverse of 24 m/min (945 in/min) on a 1,250 mm (49.2 in) travel
- Tailstock body travel of 1,040 mm (40.9 in) with a 110 mm (4.3 in) quill
- Bar capacity up to 116.5 mm (4.6 in)
Limitations
- No rotary tools on this version
- No steady rest among the optional accessories
- Needs 4 m of length before a bar feeder or conveyor
- Spindle speed tops out at 3,500 rpm in the smallest column
Best For
Frequently Asked Questions
01
Maximum turning length is 1,180 mm (46.5 in) in the two A2-8 columns and 1,100 mm (43.3 in) in the two A2-11 columns. Z-axis travel is 1,250 mm (49.2 in) and the tailstock body travels 1,040 mm (40.9 in).
02
Bed length. The UT-300LX has 1,750 mm (68.9 in) of Z travel, weighs 7,500 kg (16,534 lb) and lists a steady rest as an option. The UT-300L has 1,250 mm (49.2 in) of Z, weighs 6,000 kg (13,228 lb) and lists a bar feeder and gantry loader system instead.
03
A 12-station turret with BOT tooling; the turret driven type row reads Hydraulic/Servo. Square shank tools are 25 mm (1.0 in) and round shank tools 40 mm (1.6 in). There are no rotary tool rows for this model.
04
Yes. The UT-300LM, which shares this page, has a BMT/VDI turret with 4,000 rpm rotary tools, a 420 mm (16.5 in) turning diameter and a 1,040 mm (40.9 in) turning length in the A2-8 columns.
