Accuway UL-15M

Q: How much does the Accuway UL-15M cost?

The price estimate for the Accuway UL-15M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ul-15m#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

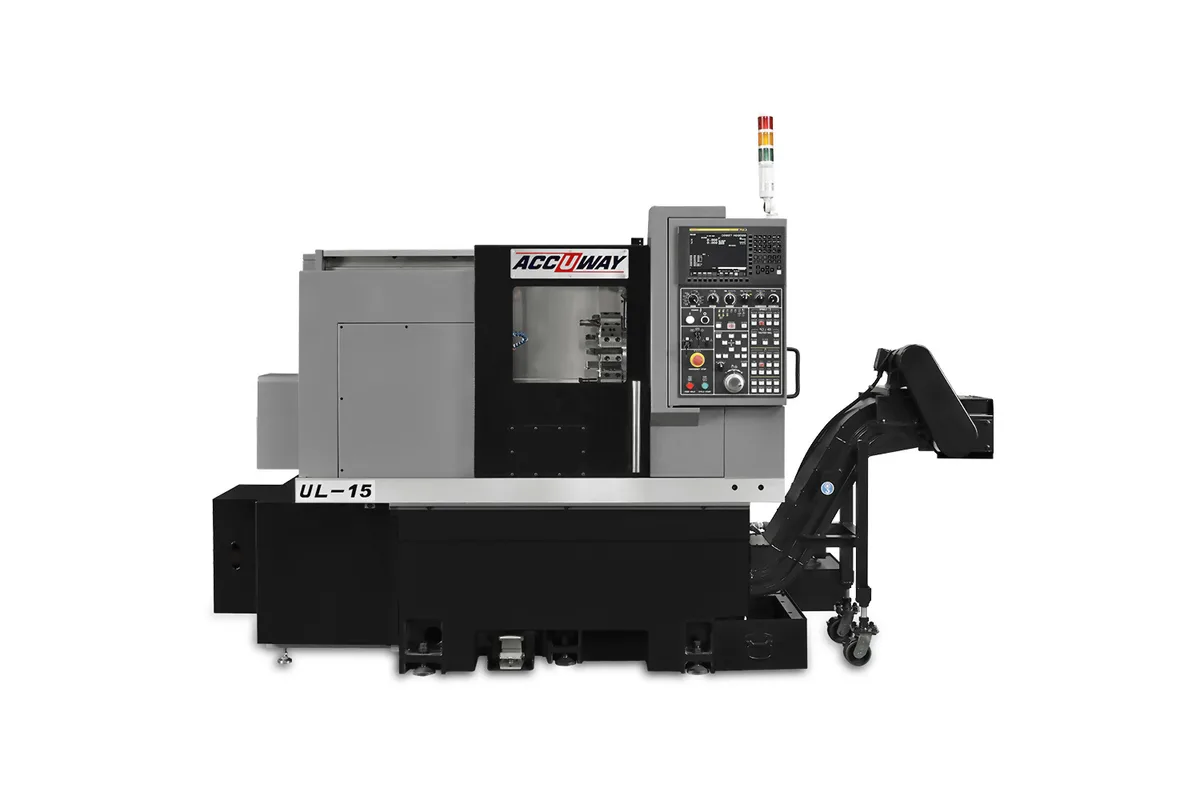

Accuway UL-15 / UL-15M flat bed CNC turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp)

Max Turn Length

210 mm (8.3 in)

control

FANUC 0i-T

swing over bed

455 mm (17.9 in)

swing over saddle

260 mm (10.2 in)

How much does the Accuway UL-15M cost?

Price estimate

Uncertain

We do not have a price for the Accuway UL-15M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Fast live tools on a short, stiff lathe: the Accuway UL-15M runs rotary tools at 6,000 rpm from a 3.7/5.5 kW (5.0/7.4 hp) motor, in a 12-station BMT/VDI turret with servo mechanical drive.

The 6,000 rpm figure separates it from Accuway's bigger live-tool lathes, such as the UT-300M at 4,000 rpm. Small drills and end mills cut properly at that speed, which suits the part size: the UL-15M turns up to 180 mm (7.1 in) in diameter and 210 mm (8.3 in) in length.

Both figures are well under the plain UL-15, which turns 280 mm (11.0 in) by 300 mm (11.8 in). The driven turret is bulkier and its tools stand further out, and on a 350 mm (13.8 in) Z travel there is little room to spare. Anyone moving up from the two-axis machine should lay the longest live tool and the chuck jaws out on paper first.

The spindle keeps the full 11/15 kW (14.8/20.1 hp), with the same three columns: 6 in chuck at 6,000 rpm, or 8 in at 4,500 rpm and 4,000 rpm, the last with a 65 mm (2.6 in) bar capacity. Tool shanks are 20 mm (0.8 in) square and 32 mm (1.3 in) round. Weight is 3,000 kg (6,614 lb) and the machine is 2.4 m long. There is no Y axis. The 0 degree and 90 degree rotary tool holders are optional accessories marked for the UL-15M.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	455 mm (17.9 in)
Swing Over Saddle	260 mm (10.2 in)
Max Turning Diameter	180 mm (7.1 in)
Max Turning Length	210 mm (8.3 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6
Chuck Size	6 / 8 / 8 in
Bar Capacity	44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp)
X Axis Travel	175 mm (6.9 in)
Z Axis Travel	350 mm (13.8 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Tailstock Body Travel	200 mm (7.9 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Diameter	70 mm (2.8 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 2.4 x 1.5 x 1.75 m (94.5 x 59.1 x 68.9 in)
Machine Weight	3,000 kg (6,614 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Rotary tools at 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp)
12-station BMT/VDI turret, servo mechanical
11/15 kW (14.8/20.1 hp) main spindle
3,000 kg (6,614 lb) on box guideways
Bar capacity up to 65 mm (2.6 in)

Limitations

Turning length of 210 mm (8.3 in)
Turning diameter of 180 mm (7.1 in), far below the UL-15
No Y axis in the table, so no off-centre milling
Rotary tool holders are optional accessories

Best For

Short bar parts with cross drilling and milling Small flanges with bolt circles Brass and aluminium fittings using small tools Compact turn-mill production with a bar feeder

Frequently Asked Questions

01 How fast are the rotary tools on the Accuway UL-15M?

Maximum rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). The turret has 12 stations with BMT/VDI tooling and servo mechanical drive.

02 What can the UL-15M turn?

Up to 180 mm (7.1 in) in diameter and 210 mm (8.3 in) in length. Swing over bed is 455 mm (17.9 in) and swing over saddle 260 mm (10.2 in). X travel is 175 mm (6.9 in) and Z travel 350 mm (13.8 in).

03 Is there a longer version of the UL-15M?

The UL-20M has 625 mm (24.6 in) of Z travel and a 500 mm (19.7 in) turning length with the same turret and rotary tools, at a weight of 3,500 kg (7,716 lb).

04 How much room does the UL-15M take?

2.4 x 1.5 x 1.75 m (94.5 x 59.1 x 68.9 in) as length, width and height, at 3,000 kg (6,614 lb). A bar feeder, parts conveyor or gantry loader system, all optional, adds to that.
