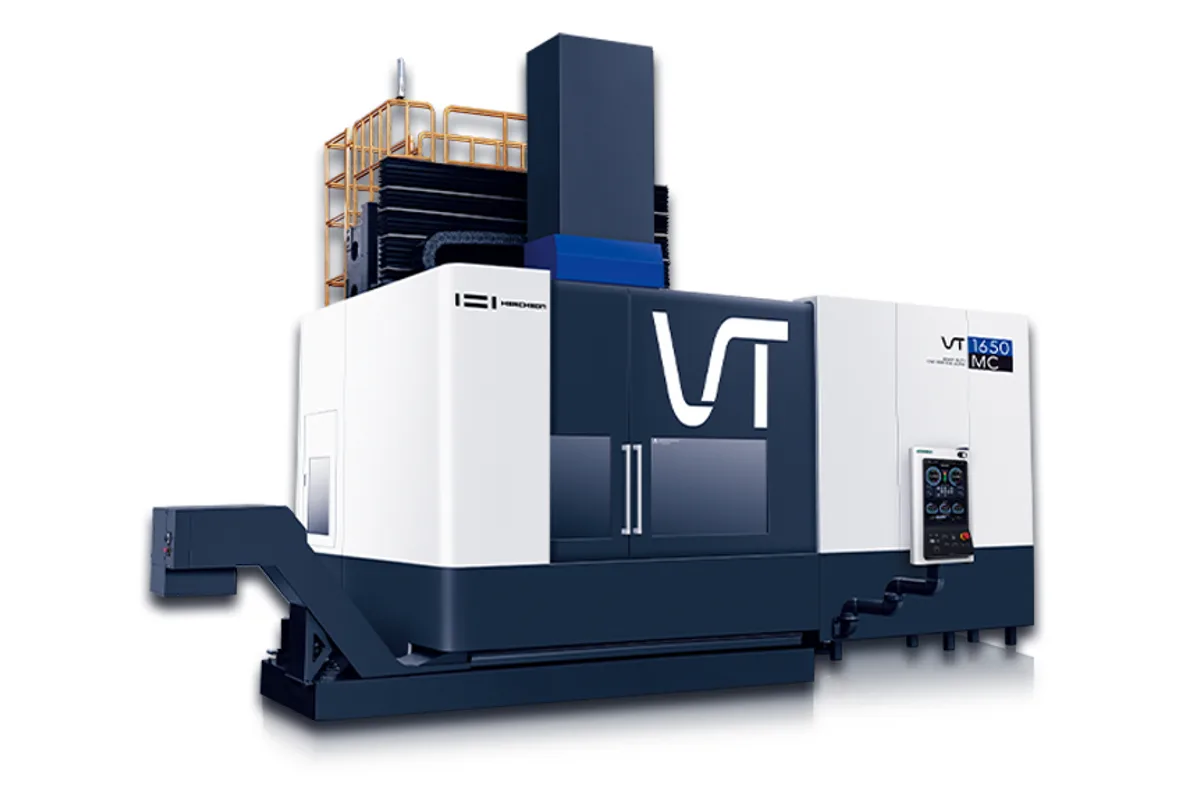

Hwacheon VT-1650
Image: hwacheon.com, Hwacheon
Key Specifications
Tool Capacity
Table Size
variants
max swing
max turning diameter
max turning height
How much does the Hwacheon VT-1650 cost?
Price estimate
We do not have a price for the Hwacheon VT-1650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon VT-1650 is a ram-type vertical lathe with a Ø1,650 mm (Ø64.96 in) table, Ø2,000 mm (Ø78.74 in) maximum turning diameter and 1,800 mm (70.87 in) maximum turning height. Swing is Ø2,100 mm (Ø82.68 in). Unlike the chuck-type VT models, the tool works from a ram on a cross rail: X is -450 ~ +1,360 mm (-17.72 ~ +53.54 in) horizontally on the ram, Z is 1,000 mm (39.37 in) vertically, and the cross rail itself moves 800 mm (31.50 in) on W to set the working height.
The table is driven by a 45 / 37 kW (60 / 50 HP) motor, rated for 30 minutes and continuous, and delivers up to 27,587 Nm (20,348 lb-ft) of torque with a top speed of 250 rpm. It carries 10,000 kgf (22,046 lbf). Next to the VT-1350 MC, which has a Ø1,350 mm (Ø53.15 in) table, 23,460 Nm (17,304 lb-ft) and 8,000 kgf (17,637 lbf) on the same 45 / 37 kW motor rating, the VT-1650 gives a bigger table, more torque and a higher load rating.
The VT-1650 / MC turns the machine into a turn-mill: a 26 / 22 kW (35 / 29.5 HP) milling spindle with a BT-50 taper and a C axis on the table that indexes in 0.001° steps and turns at up to 3 rpm, with 0 ~ 720 deg/min of C-axis feed. Tools are held in a 16-pocket drum magazine, 24 as an option, each count including 1 dummy cover. Turning tools are □40 mm, and the magazine takes tools up to Ø150 mm (Ø5.90 in) with adjacent pockets full or Ø350 mm (Ø13.78 in) with them empty, 344 mm (13.54 in) long and 120 kgf (265 lbf).
Cutting feed is 1 ~ 2,000 mm/min (0.03 ~ 78.74 ipm) on X and Z, from 5.5 kW (7.5 HP) feed motors on X, Z and W. The machine is tall, 6,350 mm (250 in), on 8,270 x 5,200 mm (325.59 x 204.72 in) of floor, and weighs 35,500 kgf (78,263 lbf), 36,000 kgf (79,366 lbf) as the MC. It needs 110 kVA at 380 V, 60 Hz and runs the HARMONY control on a Fanuc 0i-TF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| Variants | VT-1650, VT-1650 / MC |
| Max Swing | Ø2,100 mm (Ø82.68 in) |
| Max Turning Diameter | Ø2,000 mm (Ø78.74 in) |
| Max Turning Height | 1,800 mm (70.87 in) |
| X Axis Travel | -450 ~ +1,360 mm (-17.72 ~ +53.54 in) (ram, horizontal) |
| Z Axis Travel | 1,000 mm (39.37 in) (ram, vertical) |
| W Axis Travel | 800 mm (31.50 in) (cross rail) |
| Table Size | Ø1,650 mm (Ø64.96 in) |
| Table Speed Max | 250 rpm |
| Table Motor | 45 / 37 kW (60 / 50 HP) (30 min / cont.) |
| Max Table Torque | 27,587 Nm (20,348 lb-ft) |
| Max Table Load | 10,000 kgf (22,046 lbf) |
| C Axis | MC: 0.001° minimum increment, 3 rpm max |
| Milling Spindle Motor | MC: 26 / 22 kW (35 / 29.5 HP) (30 min / cont.) |
| Cutting Feed Rate | 1 ~ 2,000 mm/min (0.03 ~ 78.74 ipm) (X / Z); MC C axis: 0 ~ 720 deg/min |
| Tool Capacity | 16 (opt. 24), drum type, including 1 dummy cover |
| Turning Tool Size | □40 mm (inch type: □1.5 in) |
| Milling Tool Taper | BT-50 (7/24 taper) |
| Max Tool Diameter (full magazine) | Ø150 / Ø350 mm (Ø5.90 / Ø13.78 in) (adjacent pockets full / empty) |
| Max Tool Length | 344 mm (13.54 in) |
| Max Tool Weight | 120 kgf (265 lbf) |
| Feed Motors | 5.5 / 5.5 / 5.5 kW (7.5 / 7.5 / 7.5 HP) (X / Z / W) |
| Power Requirement | 110 kVA, 380 V, 60 Hz |
| Machine Height | 6,350 mm (250 in) |
| Machine Dimensions | 8,270 x 5,200 mm (325.59 x 204.72 in) (L x W) |
| Machine Weight | 35,500 kgf (78,263 lbf); MC: 36,000 kgf (79,366 lbf) |
| CNC Control | HARMONY (Fanuc 0i-TF Plus) |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Ø1,650 mm (Ø64.96 in) table carrying 10,000 kgf (22,046 lbf)
- 27,587 Nm (20,348 lb-ft) of table torque from a 45 / 37 kW (60 / 50 HP) motor
- Turning up to Ø2,000 mm (Ø78.74 in) and 1,800 mm (70.87 in) high
- MC version adds a 26 / 22 kW (35 / 29.5 HP) BT-50 milling spindle and a 0.001° C axis
- Drum magazine of 16 tools, 24 optional, taking tools up to 120 kgf (265 lbf)
Limitations
- Table speed tops out at 250 rpm, so small diameters run below ideal cutting speed
- Milling and the C axis are only on the MC version
- C axis turns at no more than 3 rpm, so contour milling around the part is slow
- Needs 6,350 mm (250 in) of headroom and a 110 kVA supply
Best For
Frequently Asked Questions
01
The tool is carried on a ram. X is the ram's horizontal stroke of -450 ~ +1,360 mm (-17.72 ~ +53.54 in), Z its vertical stroke of 1,000 mm (39.37 in), and W moves the whole cross rail by 800 mm (31.50 in) to suit the height of the part. Together they reach parts up to 1,800 mm (70.87 in) tall.
02
A 26 / 22 kW (35 / 29.5 HP) milling spindle with a BT-50 taper, and a C axis on the table with 0.001° minimum increment, 3 rpm maximum speed and 0 ~ 720 deg/min feed. The MC weighs 36,000 kgf (79,366 lbf) against 35,500 kgf (78,263 lbf) for the turning machine.
03
The VT-1350 MC has a Ø1,350 mm (Ø53.15 in) table, turns up to Ø1,650 mm (Ø64.96 in), carries 8,000 kgf (17,637 lbf) and gives 23,460 Nm (17,304 lb-ft) of table torque. The VT-1650 has a Ø1,650 mm table, turns Ø2,000 mm (Ø78.74 in), carries 10,000 kgf (22,046 lbf) and gives 27,587 Nm (20,348 lb-ft). Both use a 45 / 37 kW table motor.
04
The drum magazine holds 16 tools, or 24 as an option, each count including 1 dummy cover. Tools can be up to Ø150 mm (Ø5.90 in) with the adjacent pockets full, Ø350 mm (Ø13.78 in) with them empty, 344 mm (13.54 in) long and 120 kgf (265 lbf). Turning tools are □40 mm, or □1.5 in on the inch type.
