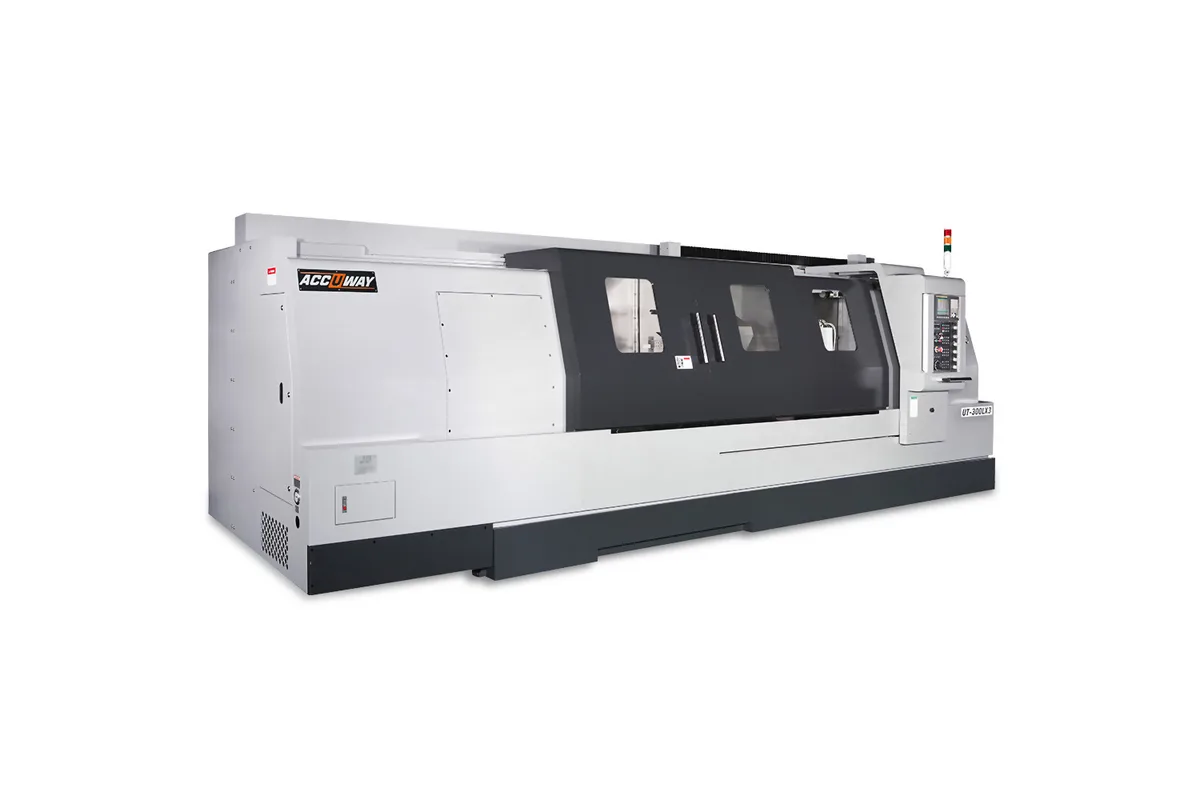

Accuway UT-300LX3
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LX3 cost?
Price estimate
We do not have a price for the Accuway UT-300LX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The longest bed in the UT-300 range belongs to the Accuway UT-300LX3: 3,182 mm (125.3 in) of Z travel and a maximum turning length of 3,100 mm (122.0 in), or 3,020 mm (118.9 in) when an A2-11 spindle is chosen. It is a three-metre shaft lathe built on a 500 mm (19.7 in) turning diameter.
Nothing about the cross-section grows with the length. X travel is 300 mm (11.8 in), swing over the saddle is 400 mm (15.7 in), and the turret is the 12-station BOT unit of the short machines. So this is a machine for long, fairly slim work: propeller shafts, lead screws, long rolls. Parts that are both long and large in diameter belong on the UT-400 or UT-600 beds.
Expect unhurried positioning. Z rapid traverse is 10 m/min (394 in/min), the lowest in the series, and less than half the 24 m/min (945 in/min) of the UT-300LX. A full-length return stroke therefore takes a noticeable part of a short cycle.
The machine weighs 11,000 kg (24,250 lb) and is 7 x 2.3 x 2.2 m (275.6 x 90.6 x 86.6 in). Tailstock body travel is 3,040 mm (119.7 in), with a quill stroke of 120 mm (4.7 in). At this length a steady rest is close to a necessity, and it is listed only as an optional accessory, along with a linear scale and an auto door.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 500 mm (19.7 in) |
| Max Turning Length | 3,100 / 3,100 / 3,020 / 3,020 mm (122.0 / 122.0 / 118.9 / 118.9 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 3,182 mm (125.3 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 10 m/min (394 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Tailstock Body Travel | 3,040 mm (119.7 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 7 x 2.3 x 2.2 m (275.6 x 90.6 x 86.6 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,100 mm (122.0 in) maximum turning length
- Tailstock body travel of 3,040 mm (119.7 in)
- 11,000 kg (24,250 lb) of machine under a three-metre cut
- Spindle bores up to 116.5 mm (4.6 in) for long bar or tube
- Steady rest and linear scale available as options
Limitations
- Z rapid traverse of only 10 m/min (394 in/min)
- Swing over saddle stays at 400 mm (15.7 in)
- 7 m of length and 11,000 kg (24,250 lb) to site
- Steady rest is an option although three-metre work needs one
- No rotary tool rows in the table
Best For
Frequently Asked Questions
01
3,100 mm (122.0 in) in the A2-8 spindle columns and 3,020 mm (118.9 in) in the A2-11 columns. Z-axis travel is 3,182 mm (125.3 in) and maximum turning diameter 500 mm (19.7 in).
02
X rapid traverse is 20 m/min (787 in/min) and Z rapid traverse 10 m/min (394 in/min). For comparison the UT-300LX2 moves at 15 m/min (591 in/min) in Z over its 2,250 mm (88.6 in) travel.
03
The tailstock body travels 3,040 mm (119.7 in). Quill travel is 120 mm (4.7 in), quill diameter 110 mm (4.3 in) and the quill taper MT#5, the same quill figures as the shorter UT-300 beds.
04
The standard list names a FANUC 0i-T controller, RJ-45 interface, rigid tapping, heat exchanger for the electric cabinet, 10.4" Colored LCD monitor, lubrication system, 4-bar coolant system and three-color warning light. A 15" monitor, steady rest and CE version are optional.
