Takisawa TT-2100G

Specs verified 2026-10-03 · takisawa.co.jp Updated 2026-10-03

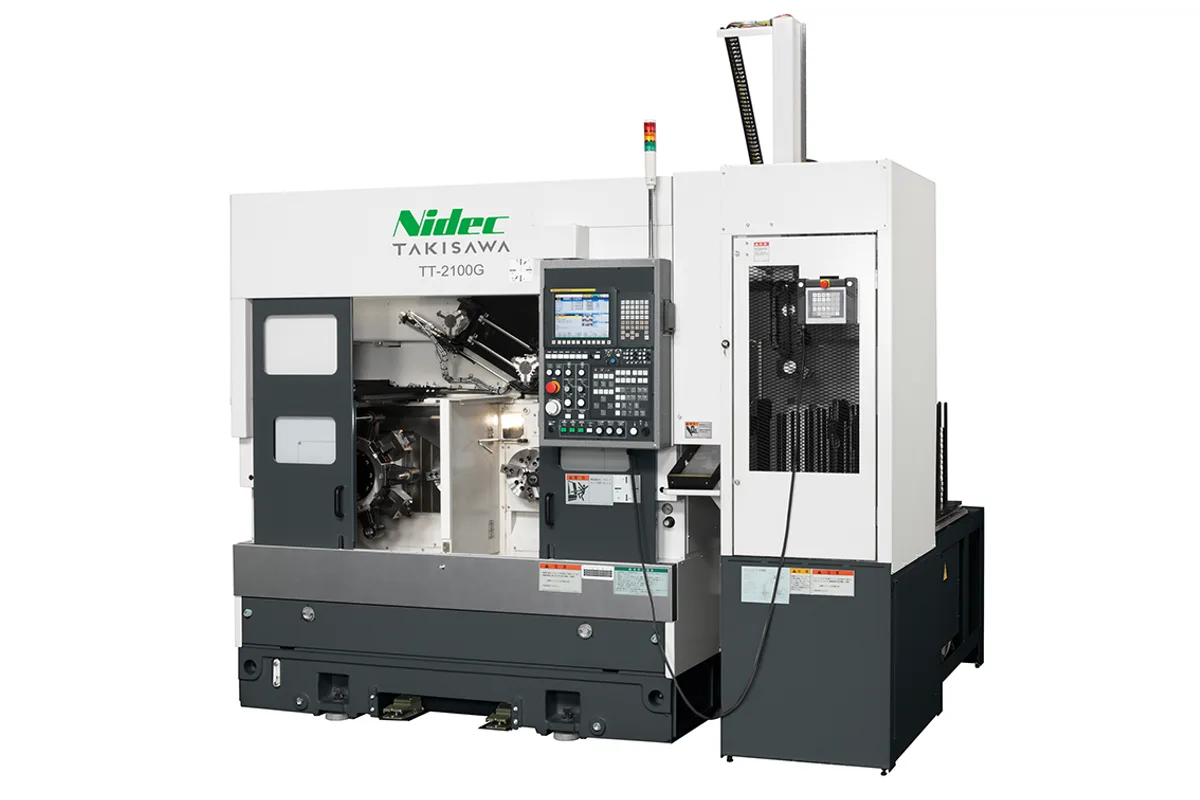

Image: takisawa.co.jp, Takisawa

Key Specifications

Max Spindle

4,500 rpm, option 6,000 rpm (6 in chucks); 3,200 rpm, option 4,500 rpm (8 in chucks)

Rapid Traverse

X 24 / Z 24 m/min (945 / 945 in/min)

Spindle Power

7.5 / 5.5 kW (10.1 / 7.4 hp), option 11 / 7.5 kW (14.8 / 10.1 hp) (6 in chucks); 11 / 7.5 kW (14.8 / 10.1 hp) (8 in chucks); 15-min / continuous

Max Turn Length

135.5 mm (5.3 in) (6 in chucks); 94 mm (3.7 in) (8 in chucks)

versions

TT-2100G (turning) and TT-2100CMG (turning & milling)

chuck size

6 + 6 in (152 + 152 mm) or 8 + 8 in (203 + 203 mm)

How much does the Takisawa TT-2100G cost?

Price estimate

Uncertain

We do not have a price for the Takisawa TT-2100G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Takisawa TT-2100G is a loader-fed CNC lathe with two chucks and a 240 mm (9.4 in) maximum turning diameter, built either as a turning machine or, as the TT-2100CMG, for turning and milling. It can be ordered with a pair of 6 in (152 mm) chucks or a pair of 8 in (203 mm) chucks, and almost every other figure in the table follows from that choice.

With 6 in chucks the spindles run to 4,500 rpm, or 6,000 rpm as an option, on a 7.5 / 5.5 kW (10.1 / 7.4 hp) motor that can be upgraded to 11 / 7.5 kW (14.8 / 10.1 hp). Turning length is 135.5 mm (5.3 in), and the loader carries workpieces up to φ80 × 80 mm and 0.7 kg, marked ×2. With 8 in chucks the speed drops to 3,200 rpm, with 4,500 rpm optional, the 11 / 7.5 kW motor is standard, and turning length shortens to 94 mm (3.7 in). The loader then takes φ160 × 80 mm and 3 kg, again marked ×2.

So the 6 in configuration is the fast one for small, light parts, and the 8 in configuration is the one for wider, heavier blanks at a cost in spindle speed and turning length. Maximum turning diameter is listed as 240 mm in both cases, but in automatic running the loader limits of 80 mm or 160 mm decide what can be handled.

The turning machine has an all-holder turret with 10 stations as standard and 12 as an option. The TT-2100CMG has a 10-station rotary-tool turret driving tools at 2,500 rpm with 5.5 kW (7.4 hp) at 15-min and 3.7 kW (5.0 hp) continuous. That tool speed suits drilling, tapping and light milling in steel; small cutters will run well below their ideal speed.

Rapids are 24 m/min (945 in/min) in both X and Z. The work stocker has 16 pallets rated at 40 kg (88 lb) each with a 450 mm (17.7 in) stacking height. The machine occupies 2,825 × 2,615 mm (111.2 × 103.0 in), stands 2,700 mm (106.3 in) high and weighs 5,200 kg (11,464 lb), or 5,400 kg (11,905 lb) as the TT-2100CMG.

Full Specifications

Parameter	Value
Versions	TT-2100G (turning) and TT-2100CMG (turning & milling)
Chuck Size	6 + 6 in (152 + 152 mm) or 8 + 8 in (203 + 203 mm)
Turret Stations	10 stations standard, 12 stations optional (all-holder turret); 10-station rotary-tool turret on TT-2100CMG
Max Turning Diameter	240 mm (9.4 in)
Max Turning Length	135.5 mm (5.3 in) (6 in chucks); 94 mm (3.7 in) (8 in chucks)
Max Spindle Speed	4,500 rpm, option 6,000 rpm (6 in chucks); 3,200 rpm, option 4,500 rpm (8 in chucks)
Spindle Motor Power	7.5 / 5.5 kW (10.1 / 7.4 hp), option 11 / 7.5 kW (14.8 / 10.1 hp) (6 in chucks); 11 / 7.5 kW (14.8 / 10.1 hp) (8 in chucks); 15-min / continuous
Live Tool Speed	2,500 rpm (TT-2100CMG)
Live Tool Power	5.5 / 3.7 kW (7.4 / 5.0 hp), 15-min / continuous (TT-2100CMG)
Rapid Traverse Rate	X 24 / Z 24 m/min (945 / 945 in/min)
Loader Workpiece	φ80 × 80 mm, 0.7 kg ×2 (6 in); φ160 × 80 mm, 3 kg ×2 (8 in)
Work Stocker	16 pallets, 40 kg (88 lb) per pallet, 450 mm (17.7 in) stacking height
Machine Dimensions	2,825 × 2,615 mm floor space, 2,700 mm high (111.2 × 103.0 × 106.3 in)
Machine Weight	TT-2100G: 5,200 kg (11,464 lb); TT-2100CMG: 5,400 kg (11,905 lb)

Specifications sourced from takisawa.co.jp — verified 2026-10-03

Strengths & Limitations

Strengths

Offered with 6 + 6 in (152 + 152 mm) or 8 + 8 in (203 + 203 mm) chucks to match part size
Loader handles workpieces up to 3 kg and φ160 × 80 mm in the 8 in chuck configuration
TT-2100CMG version adds a 10-station rotary-tool turret with 2,500 rpm driven tools
6,000 rpm spindle option with 6 in chucks, and an 11 / 7.5 kW (14.8 / 10.1 hp) motor option
16-pallet work stocker rated at 40 kg (88 lb) per pallet
240 mm (9.4 in) maximum turning diameter, against 140 mm (5.5 in) on the TT-1100G

Limitations

Turning length is short: 135.5 mm (5.3 in) with 6 in chucks and 94 mm (3.7 in) with 8 in chucks
Driven tools on the TT-2100CMG are limited to 2,500 rpm and 5.5 / 3.7 kW (7.4 / 5.0 hp)
With 8 in chucks the standard spindle speed is 3,200 rpm
Z rapid is 24 m/min (945 in/min), slower than the 30 m/min (1,181 in/min) of the TT-1100G

Best For

Loader-fed chucking parts up to 3 kg with the 8 in chuck configuration Small, light parts at up to 6,000 rpm with the 6 in chucks and optional spindle Turned parts needing drilled or milled features, on the TT-2100CMG Unattended batches from a 16-pallet stocker

Frequently Asked Questions

01 Should I order 6 in or 8 in chucks on the TT-2100G?

Base it on part diameter and weight. The 6 in (152 mm) setup gives 4,500 rpm (6,000 rpm optional), 135.5 mm (5.3 in) of turning length and a loader limit of φ80 × 80 mm and 0.7 kg. The 8 in (203 mm) setup gives 3,200 rpm (4,500 rpm optional), 94 mm (3.7 in) of turning length and a loader limit of φ160 × 80 mm and 3 kg. Both loader weights are marked ×2 in the table.

02 What does the TT-2100CMG version add?

It is the turning and milling version. In place of the all-holder turret it has a 10-station rotary-tool turret, with tools driven at up to 2,500 rpm by a motor rated 5.5 kW (7.4 hp) at 15-min and 3.7 kW (5.0 hp) continuous. It weighs 5,400 kg (11,905 lb) against 5,200 kg (11,464 lb) for the turning machine. A 12-station turret is listed only as an option on the turning version.

03 How much spindle power is available?

With 6 in chucks the standard motor is 7.5 / 5.5 kW (10.1 / 7.4 hp) and an 11 / 7.5 kW (14.8 / 10.1 hp) motor is optional. With 8 in chucks the 11 / 7.5 kW motor is standard. The ratings are 15-min against continuous.

04 What are the stocker and floor space figures?

The work stocker has 16 pallets, each rated at 40 kg (88 lb), with a stacking height of 450 mm (17.7 in). The machine takes 2,825 × 2,615 mm (111.2 × 103.0 in) of floor and is 2,700 mm (106.3 in) high.

05 How does the TT-2100G differ from the TT-1100G?

The TT-1100G is the smaller machine: 6 in chucks only, 140 mm (5.5 in) of turning diameter, 121 mm (4.8 in) of turning length and a standard 5.5 / 3.7 kW (7.4 / 5.0 hp) motor. The TT-2100G turns 240 mm (9.4 in), can take 8 in chucks and offers a 12-station turret and a rotary-tool version. The TT-1100G does have the higher optional spindle speed, 6,500 rpm.
