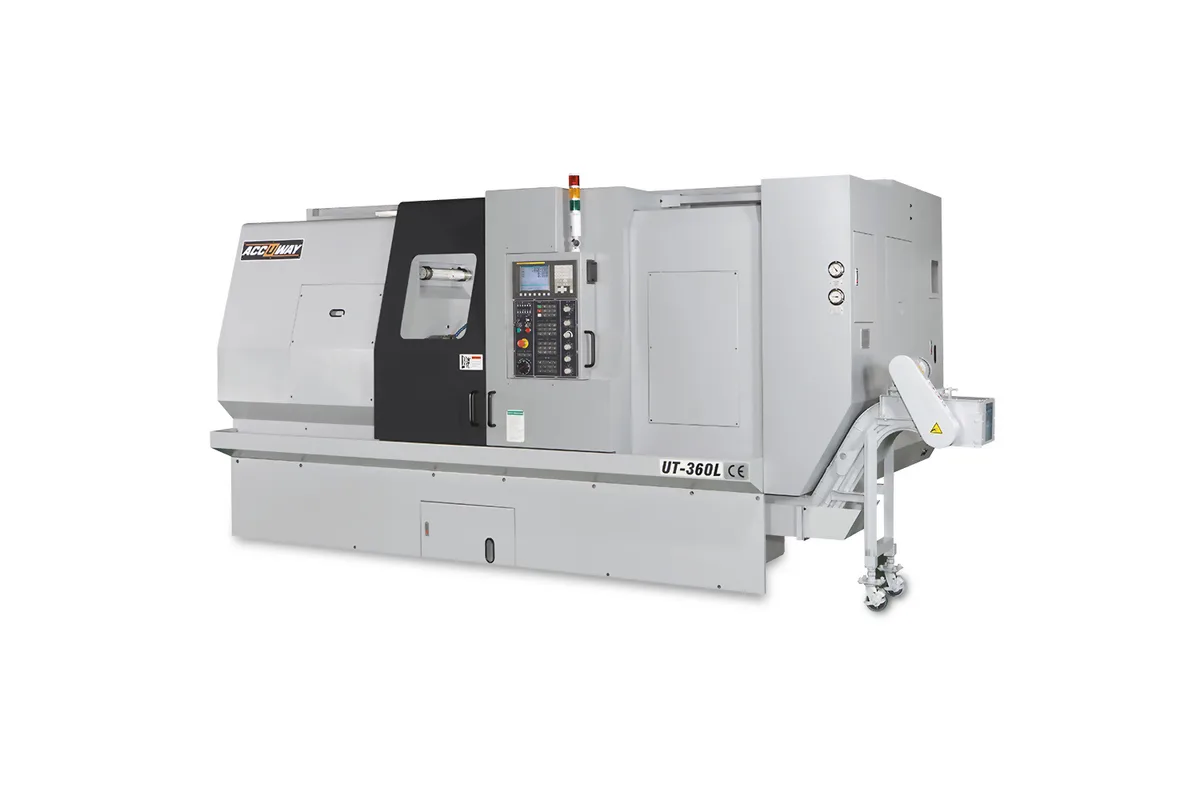

Accuway UT-360LM
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-360LM cost?
Price estimate
We do not have a price for the Accuway UT-360LM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
BMT-75 is the detail that defines the Accuway UT-360LM. Where the lighter Accuway live-tool lathes use BMT/VDI or BMT-65 turrets, this one carries the larger interface, with a 5.5 kW (7.4 hp) rotary tool motor at 4,000 rpm behind it.
The single 5.5 kW figure, rather than a continuous and short-time pair, is how the table prints it. For milling on a lathe it is a useful amount: slotting and face milling in steel are realistic, as is drilling at diameters where smaller driven turrets stall. There is no Y axis in the table, so cuts are on the centreline.
The platform is the UT-360L. Z travel is 1,250 mm (49.2 in), turning diameter 540 mm (21.3 in), and weight 7,000 kg (15,432 lb). Unusually, the live turret does not reduce the turning diameter here; it only shortens the turning length, to 1,040 mm (40.9 in) with the A2-8 nose and 960 mm (37.8 in) with A2-11.
The spindle is the 18.5/22 kW (24.8/29.5 hp) unit, at 2,700 rpm with a 12 in chuck or 2,500 rpm and 2,000 rpm with 15 in chucks. Tool shanks are 32 mm (1.3 in) square and 50 mm (2.0 in) round. The tailstock has an MT#6 quill and 1,040 mm (40.9 in) of body travel. Rotary tool holders, 0 degree and 90 degree, are optional accessories marked for this model, as are a steady rest and a gear box.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 750 mm (29.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 540 mm (21.3 in) |
| Max Turning Length | 1,040 / 960 / 960 mm (40.9 / 37.8 / 37.8 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 |
| Chuck Size | 12 / 15 / 15 in |
| Bar Capacity | 90 / 105 / 116.5 mm (3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BMT-75 |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 5.5 kW (7.4 hp) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 4.5 x 2.3 x 2.2 m (177.2 x 90.6 x 86.6 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- BMT-75 turret with a 5.5 kW (7.4 hp) rotary tool motor
- Turning diameter stays at 540 mm (21.3 in) with live tooling
- 18.5/22 kW (24.8/29.5 hp) main spindle
- Rotary tool speed of 4,000 rpm
- MT#6 tailstock with 1,040 mm (40.9 in) of body travel
Limitations
- No Y-axis rows: milling on the centreline only
- Main spindle speed no higher than 2,700 rpm
- Rotary tool holders are optional accessories
- 7,000 kg (15,432 lb) and 4.5 m long
Best For
Frequently Asked Questions
01
A 12-station BMT-75 turret with servo mechanical drive. Rotary tool speed is 4,000 rpm and rotary tool motor power 5.5 kW (7.4 hp). The 0 degree and 90 degree rotary tool holders are listed as optional accessories.
02
The UT-300LM has a BMT/VDI turret, a 3.7/5.5 kW (5.0/7.4 hp) rotary tool motor, a 420 mm (16.5 in) turning diameter and 6,000 kg (13,228 lb) of weight. The UT-360LM has BMT-75, 5.5 kW (7.4 hp), 540 mm (21.3 in) and 7,000 kg (15,432 lb). Both have 1,250 mm (49.2 in) of Z travel.
03
1,040 mm (40.9 in) in the A2-8 column and 960 mm (37.8 in) in the two A2-11 columns. The UT-360L without rotary tools reaches 1,130 mm (44.5 in) on the same bed.
04
No UT-360M page is listed. The short UT-360 offers an APT 50 power turret with CS contouring control or CF Axis Control as an optional accessory, without rotary tool figures in its table.
